DESCRIPTION

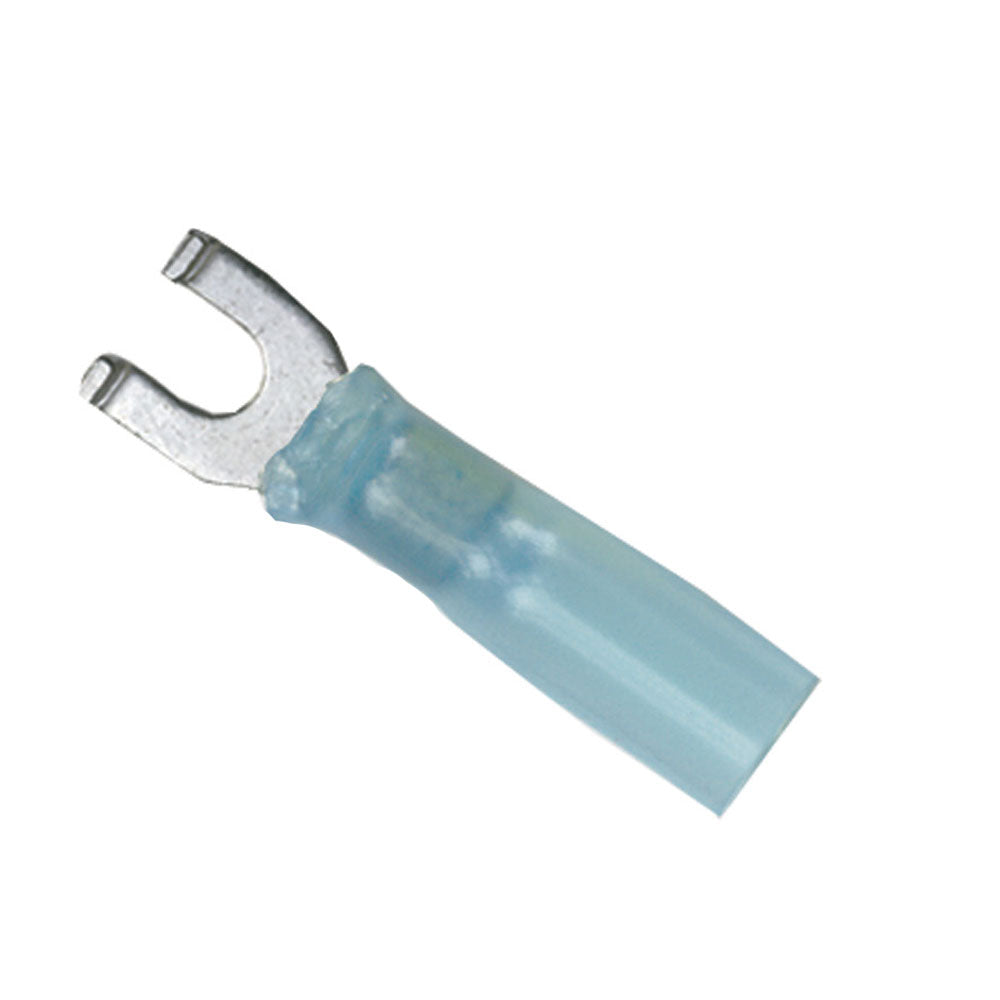

16-14 Gauge - #8 Heat Shrink Spade Terminals - 100-Pack

Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts.
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size.
  • Shrinks at 257 deg. F/125 deg. C.
  • Operating temperature range 40 deg. C to 110 deg. C.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.
  • Wire Range: 16-14
  • mm: 1-2
  • Screw Size: 4mm
  • Qty/Pkg: 100

    • Our Part # ANC-314299 | Mfr. Part # 314299

    FEATURES

    • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
    • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
    • Nylon insulator, preferred by experts.
    • UL Listed and CSA Recognized
    • Highest shrink ratio - shrinks to 1/3 original size.
    • Shrinks at 257 deg. F/125 deg. C.
    • Operating temperature range 40 deg. C to 110 deg. C.

    TECHNICAL INFORMATION

    SpecificationValue
    ManufacturerAncor
    Manufacturer part number314299
    Gauge16-14 AWG
    TypeSpade connectors
    Package Qty100
    Heat ShrinkYes
    Wire Range16-14
    mm1-2
    Screw Size4mm
    Qty/Pkg100
    Supplier material detailNylon insulator, preferred by experts.
    Product-name configuration#8 Heat Shrink Spade Terminals
    Product-name configuration100-Pack
