Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 20° Tilted Eleme...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION

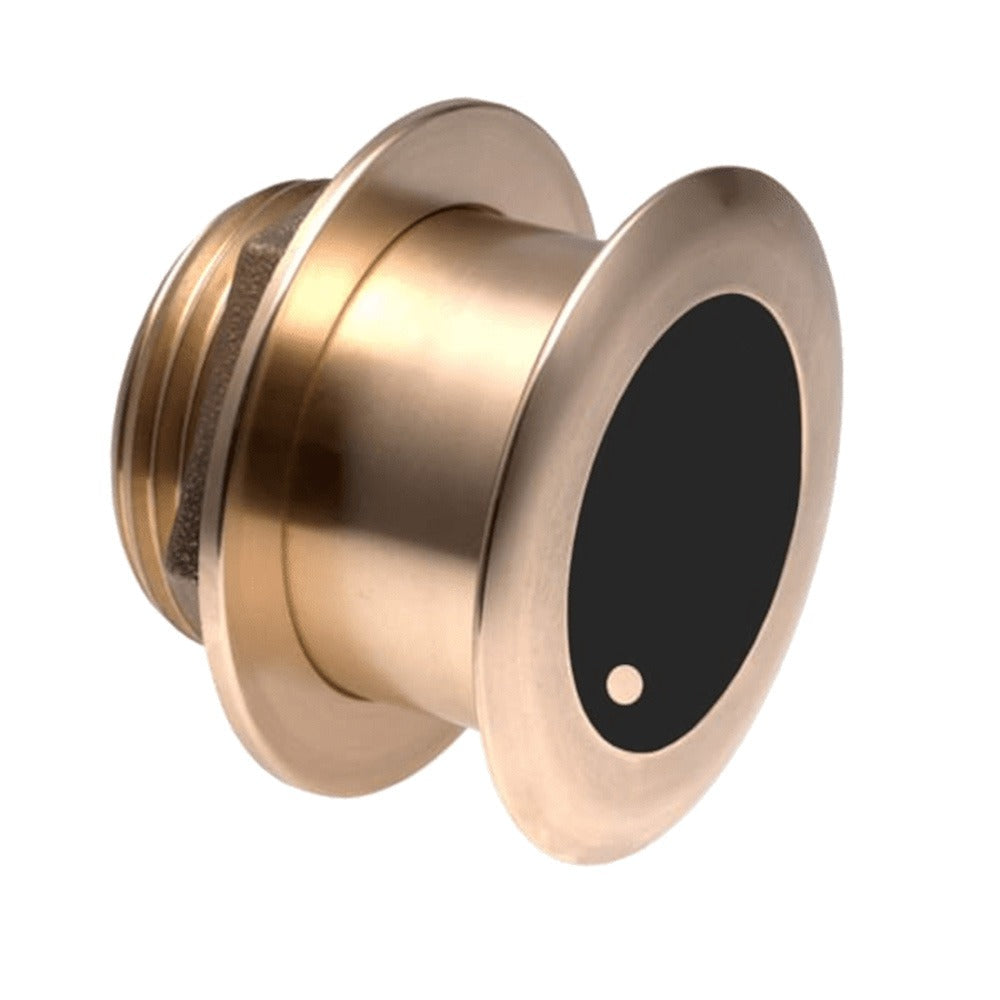

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 20° Tilted Element - Requires Mix & Match Cable
20° tilted version for 16 to 24° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.
Features:
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
- 200 kHz with a 6° beamwidth for depth performance to 244 m (800')
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
- No effect on the boat’s running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID® technology
Specifications:
- Acoustic Window: Urethane
- Cable-Length: 2 M (6.5')
- Common Use: Leisure/Yachting, Fishing
- Connector: Airmar 9-Pin (MM1)
- Conventional Beam: 22°x20°/6°
- Country of Origin: USA
- Deadrise Range: 16° to 24°
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 24°
- Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800')
- Mix and Match Series: 9-Pin 1000 Watt
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Sensor Connector: MM1
- Single or Dual Frequency: Conventional Dual Frequency
- Tilt Angle: 20°
- Tilted Element: Yes
- Weight: 2.7 kg (6 lbs)
- Power Rating: 1 kW
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 11 m (36')
- Hole Size: 95 mm (3-3/4")
- Usable Shaft Length: 71 mm (2.80")
- Display Connector: Cable Required
Our Part # ARM-B164-20-MM | Mfr. Part # B164-20-MM
FEATURES
FEATURES
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
- 200 kHz with a 6° beamwidth for depth performance to 244 m (800')
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
- No effect on the boat’s running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID® technology
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Airmar |
| Manufacturer part number | B164-20-MM |
| Cable Length (Feet) | 6.5' |
| Chirp | No |
| Imaging | Standard |
| Mounting Style | Thru-Hull |
| Speed Included | No |
| Temperature | Yes |
| Acoustic Window | Urethane |
| Cable-Length | 2 M (6.5') |
| Common Use | Leisure/Yachting, Fishing |
| Connector | Airmar 9-Pin (MM1) |
| Conventional Beam | 22°x20°/6° |
| Country of Origin | USA |
| Deadrise Range | 16° to 24° |
| Frequency Band | 50/200 kHz |
| Material | Bronze |
| Max Deadrise | Up to 24° |
| Max Depth | Low frequency- 549 m (1800'), High frequency- 244 m (800') |
| Mix and Match Series | 9-Pin 1000 Watt |
| Mounting Style | Tilted Element Thru-Hull |
| Retractable housing | No |
| Sensor Connector | MM1 |
| Single or Dual Frequency | Conventional Dual Frequency |
| Tilt Angle | 20° |
| Tilted Element | Yes |
| Weight | 2.7 kg (6 lbs) |
| Power Rating | 1 kW |
| Functions | Depth, Temperature |
| Hull Material | Fiberglass or wood |
| Max Vessel LOA | Up to 11 m (36') |
| Hole Size | 95 mm (3-3/4") |
| Usable Shaft Length | 71 mm (2.80") |
| Display Connector | Cable Required |
| Supplier technical detail | The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. |
| Supplier technical detail | Interfaces to any 600 W or 1 kW echo sounder |
| Supplier technical detail | Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull |
| Supplier material detail | Available in a stainless steel housing (SS164) for use in all hull materials |
| Material stated in product name | Bronze |
| Size or rating stated in product name | 50/200 kHz |
| Product-name configuration | 50/200 kHz |
| Product-name configuration | 1 kW |
| Product-name configuration | 20° Tilted Element |
| Product-name configuration | Requires Mix & Match Cable |
