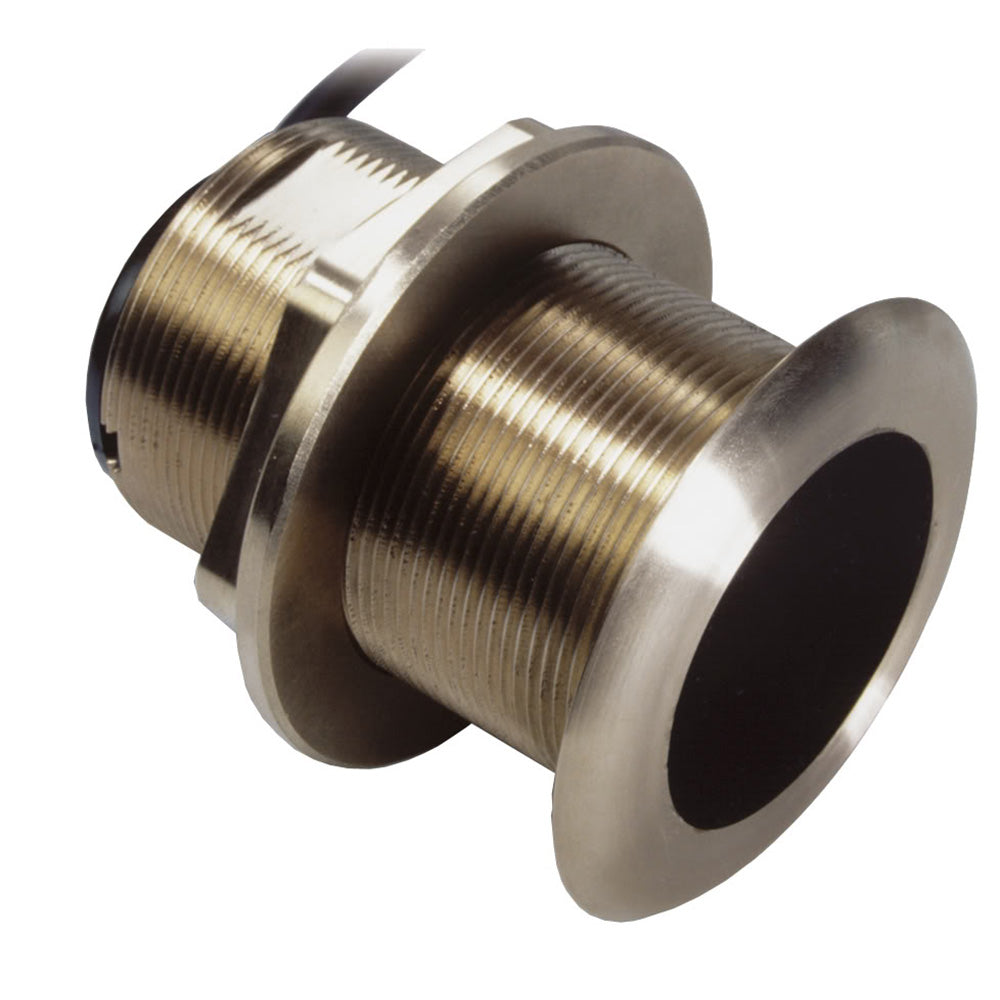

Navico B60 Thru Hull Transducer 12° Tilt, 9-Pin Xsonic Connector, Depth & Temperature

SKU: arm-b60-12-9n  |  Manuf. Code: B60-12-9N
$399.99 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

B60 Thru Hull Transducer 12° Tilt, 9-Pin Xsonic Connector, Depth & Temperature

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth

Features:

  • The depth and fast-response water temperature sensing
  • 600 W of power
  • Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') and 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Perfect for center-console or trailered boats
  • Low-profile bronze housing extends only 5 mm (3/16") outside the hull
  • No effect on your boat’s running performance
  • Bronze housing for fiberglass or wood hull
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Cable-Length: 10 m (33')
  • Hole Size: 60 mm (2-3/8")
  • Usable Shaft Length: 68.5 mm (2.70")
  • Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin

Our Part # ARM-B60-12-9N | Mfr. Part # B60-12-9N

FEATURES

  • The depth and fast-response water temperature sensing
  • 600 W of power
  • Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') and 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Perfect for center-console or trailered boats
  • Low-profile bronze housing extends only 5 mm (3/16") outside the hull
  • No effect on your boat’s running performance
  • Bronze housing for fiberglass or wood hull
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Cable-Length: 10 m (33')
  • Hole Size: 60 mm (2-3/8")
  • Usable Shaft Length: 68.5 mm (2.70")
  • Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin

TECHNICAL INFORMATION

SpecificationValue
ManufacturerAirmar
Manufacturer part numberB60-12-9N
Dual-frequency element50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') and 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
Cable-Length10 m (33')
Hole Size60 mm (2-3/8")
Usable Shaft Length68.5 mm (2.70")
ConnectorSimrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin
Supplier technical detailThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature.
Supplier technical detailLow-profile bronze housing extends only 5 mm (3/16") outside the hull
