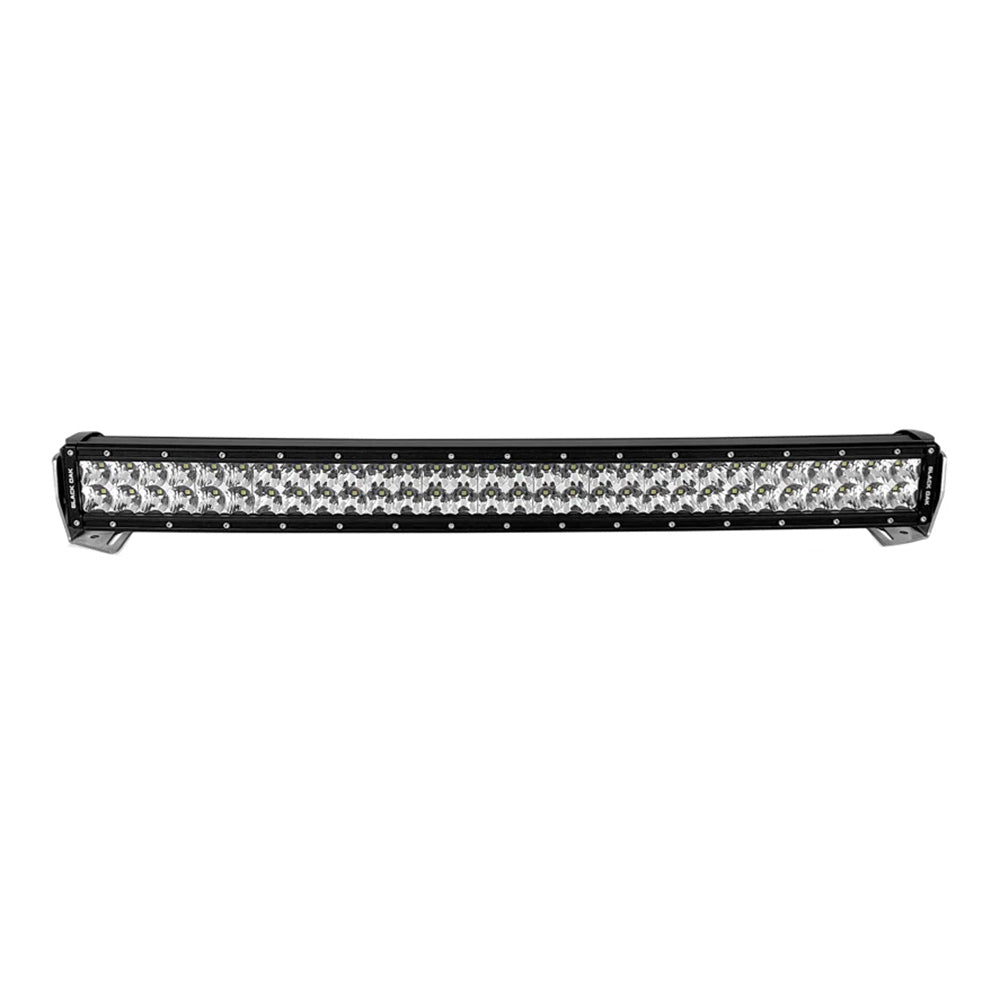

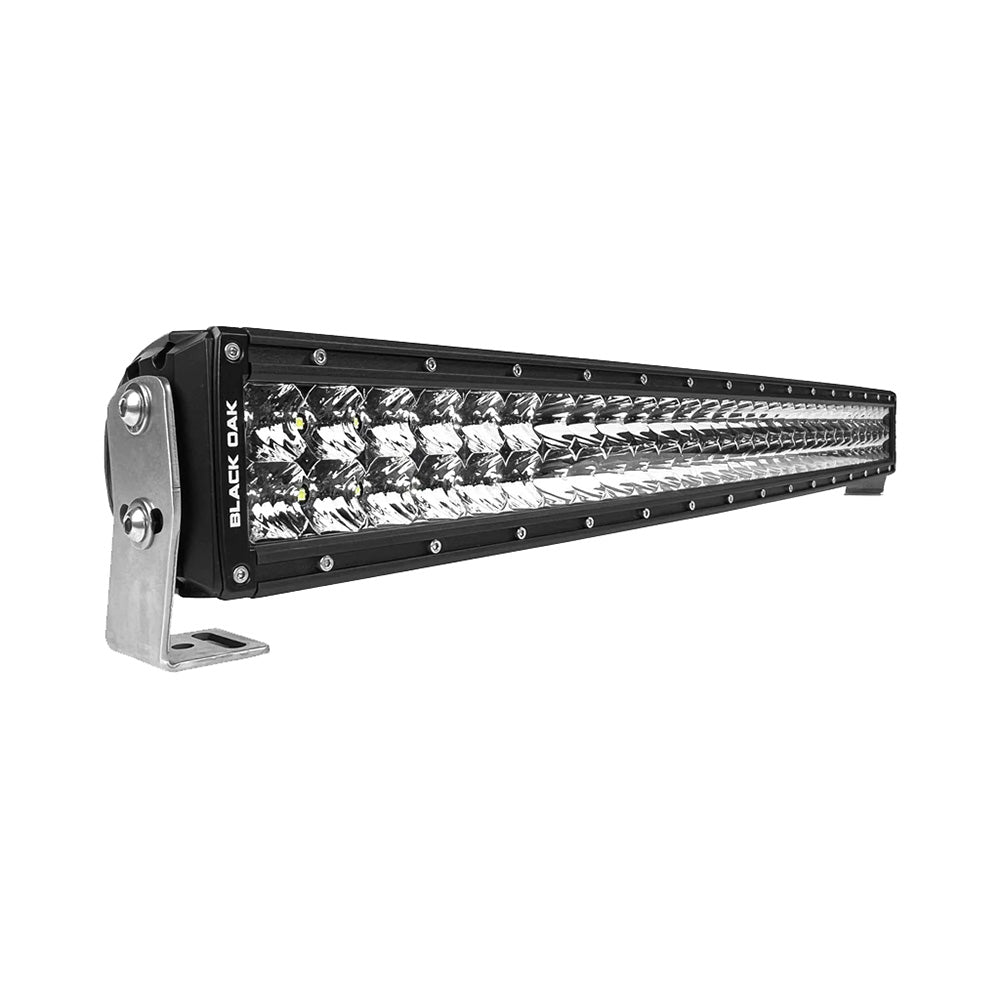

Pro Series 3.0 Curved Double Row 30" LED Light Bar - Combo Optics - Black Housing
This 30-inch curved LED is a painfully bright LED bar that won't break the bank. This light is perfect for mounting in a lower bumper, behind the grill, or across the top of an ATV and can throw a beam that will illuminate a whole air strip. Don't underestimate its size. This 30'' curved double-row light bar is no joke.
Black Oak has taken the LED game to the next level. The Pro Series 3.0 features top-of-the-line LED tech, boasting a 20% increase in lumens, making this series of lights one of the brightest on the market.
Features:
- 360° Ceramic Protection against UV, Salt Water & Corrosion
- 2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
- Heavy-duty Dynamax housing for a 4x stronger frame
- Premium Dupont powder-coating for the highest quality and most resistant finish
- Combination Flood/Spot light pattern offers a superior lighting pattern

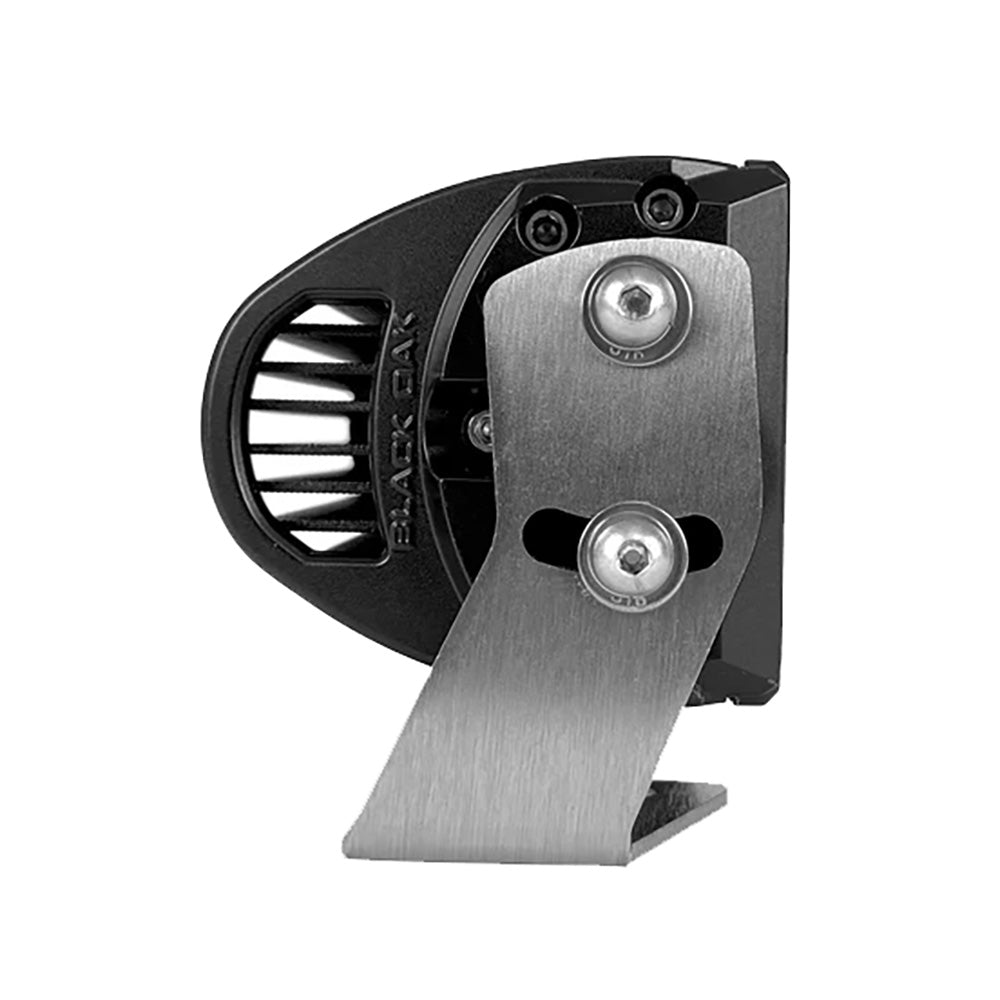

- Multi-mount brackets made of 9 gauge marine grade Stainless Steel
- Lens cover made of Lexan with a UV protectant
Activities & Uses:
- Off-Road combo light
- T-Top boat light
- Behind the grill light bar
- UTV roof lighting
- Perfect between tow hooks on Ram 2500 and 3500's
Technical Specifications:
- Total Wattage: 300W
- Amp. Draw: 12.7
- LED Quantity: 60
- Weight: 10.8 lbs.
- Raw Lumens: 39,600
- Warranty: Lifetime
- IP Rating: IP69K
- Connection: Deutsch connector
- Dimensions with Mounting Bracket (Width x Height): 31.4" x 4.125"
In the Box:
- Light bar
- Complete wiring harness with fuse, relay, and switch
- 12 gauge wire
- Mounting brackets
- All hardware is ready to install!
*Sold as an Individual
Mfr. Part # 30CC-D5OS
FEATURES
FEATURES
- 360° Ceramic Protection against UV, Salt Water & Corrosion
- 2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
- Heavy-duty Dynamax housing for a 4x stronger frame
- Premium Dupont powder-coating for the highest quality and most resistant finish
- Combination Flood/Spot light pattern offers a superior lighting pattern
- Multi-mount brackets made of 9 gauge marine grade Stainless Steel
- Lens cover made of Lexan with a UV protectant
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Black Oak LED |
| Manufacturer part number | 30CC-D5OS |
| Beam Pattern | Spot-Flood Combo |
| Housing | Black |
| Length (Inches) | 30" |
| Voltage - Input Range (Volts) | 12v |
| Total Wattage | 300W |
| Amp. Draw | 12.7 |
| LED Quantity | 60 |
| Weight | 10.8 lbs. |
| Raw Lumens | 39,600 |
| Warranty | Lifetime |
| IP Rating | IP69K |
| Connection | Deutsch connector |
| Dimensions with Mounting Bracket (Width x Height) | 31.4" x 4.125" |
| Supplier dimension detail | Pro Series 3.0 Curved Double Row 30" LED Light Bar - Combo Optics - Black Housing |
| Supplier technical detail | Pro Series 3.0 Curved Double Row 30" LED Light Bar - Combo Optics - Black Housing |
| Supplier material detail | Multi-mount brackets made of 9 gauge marine grade Stainless Steel |
| Supplier technical detail | Multi-mount brackets made of 9 gauge marine grade Stainless Steel |
| Supplier technical detail | Total Wattage: 300W |
| Supplier dimension detail | Dimensions with Mounting Bracket (Width x Height): 31.4" x 4.125" |
| Supplier technical detail | Dimensions with Mounting Bracket (Width x Height): 31.4" x 4.125" |
| In The Box | Light bar Complete wiring harness with fuse, relay, and switch 12 gauge wire Mounting brackets All hardware is ready to install! |
| Size or rating stated in product name | 30" |
| Product-name configuration | Combo Optics |
| Product-name configuration | Black Housing |
