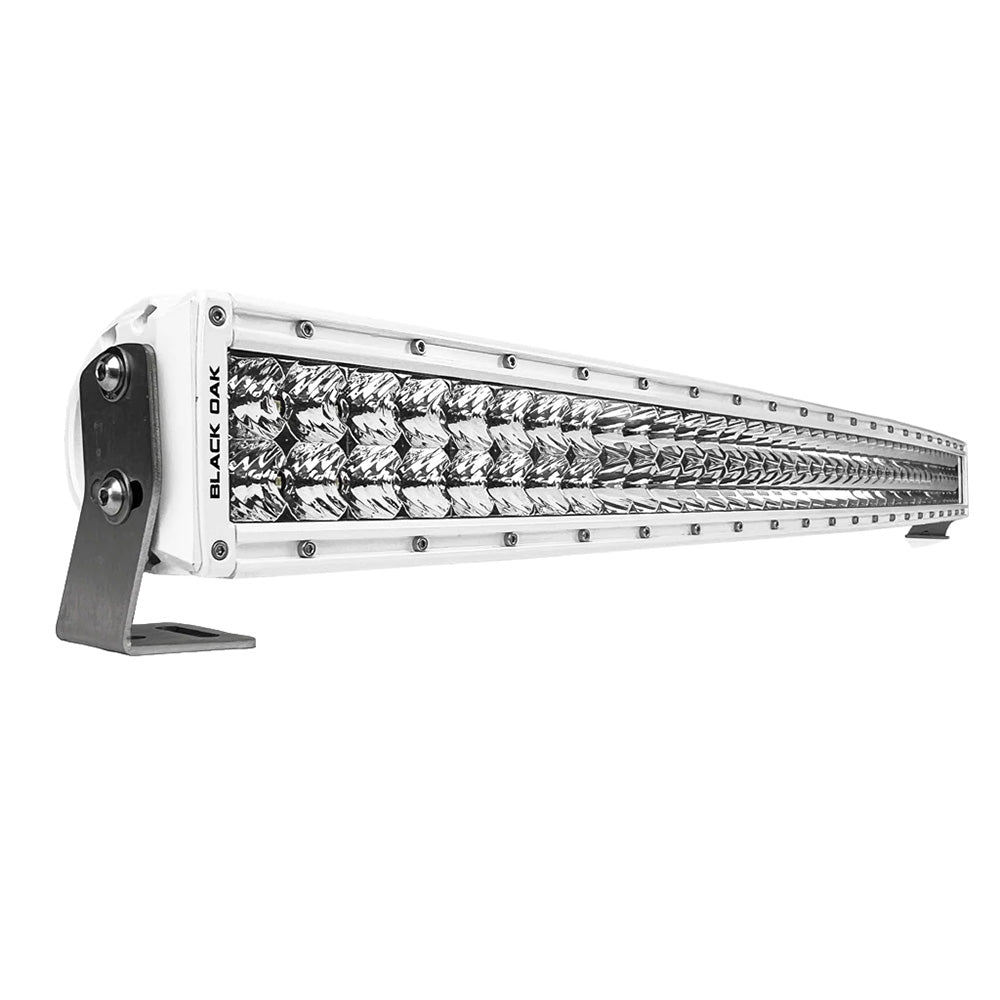

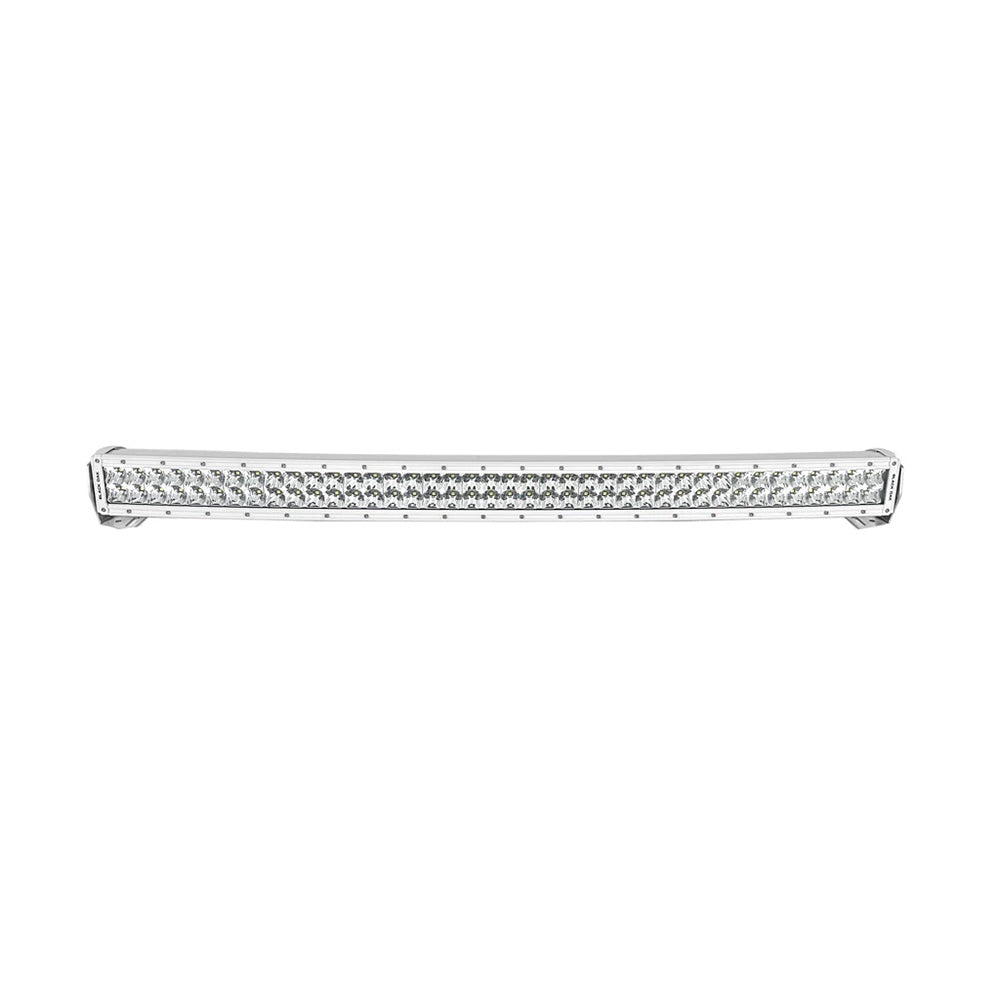

Pro Series 3.0 Curved Double Row 40" LED Light Bar - Combo Optics - White Housing
This 40-inch curved light bar demands respect from anything in the water. Sporting the brightest and most advanced 5-watt LEDs. This all-white waterproof LED light bar is the perfect addition to boats, jeeps, trucks, or even yard lights to illuminate with day-light brightness! Flaunting an IP69K rating, this light can withstand whatever users splash, throw, freeze, or submerge it under.
Black Oak has taken the LED game to the next level. The Pro Series 3.0 features top-of-the-line LED tech, boasting a 20% increase in lumens, making this series of lights one of the brightest on the market.
Features:
- 360° Ceramic Protection against UV, Salt Water & Corrosion
- 2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
- Heavy-duty Dynamax housing for a 4x stronger frame
- Premium Dupont powder-coating for the highest quality and most resistant finish
- Combination Flood/Spot light pattern offers a superior lighting pattern
- Multi-mount brackets made of 9 gauge marine grade Stainless Steel
- Lens cover made of Lexan with a UV protectant
Activities & Uses:
- Spot channel markers over 1800 meters away!
- UTV roof mount
- Dunes and desert riding
- Roof rack lighting (white tacoma)
- T-top light
Technical Specifications:
- Total Wattage: 400W
- Amp. Draw: 17.8
- LED Quantity: 40
- Weight: 13.8 lbs.
- Raw Lumens: 52,800
- Warranty: Lifetime
- IP Rating: IP69K
- Connection: Deutsch connector
- Dimensions with Mounting Bracket (Width x Height): 41.4" x 4.125"
In the Box:
- Light bar
- Complete wiring harness with fuse, relay, and switch
- 12 gauge wire
- Mounting brackets
- All hardware is ready to install!
*Sold as an Individual
Mfr. Part # 40CCM-D5OS
FEATURES
FEATURES
- 360° Ceramic Protection against UV, Salt Water & Corrosion
- 2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
- Heavy-duty Dynamax housing for a 4x stronger frame
- Premium Dupont powder-coating for the highest quality and most resistant finish
- Combination Flood/Spot light pattern offers a superior lighting pattern
- Multi-mount brackets made of 9 gauge marine grade Stainless Steel
- Lens cover made of Lexan with a UV protectant
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Black Oak LED |
| Manufacturer part number | 40CCM-D5OS |
| Beam Pattern | Spot-Flood Combo |
| Housing | White |
| Length (Inches) | 40" |
| Voltage - Input Range (Volts) | 12v |
| Total Wattage | 400W |
| Amp. Draw | 17.8 |
| LED Quantity | 40 |
| Weight | 13.8 lbs. |
| Raw Lumens | 52,800 |
| Warranty | Lifetime |
| IP Rating | IP69K |
| Connection | Deutsch connector |
| Dimensions with Mounting Bracket (Width x Height) | 41.4" x 4.125" |
| Supplier dimension detail | Pro Series 3.0 Curved Double Row 40" LED Light Bar - Combo Optics - White Housing |
| Supplier technical detail | Pro Series 3.0 Curved Double Row 40" LED Light Bar - Combo Optics - White Housing |
| Supplier material detail | Multi-mount brackets made of 9 gauge marine grade Stainless Steel |
| Supplier technical detail | Multi-mount brackets made of 9 gauge marine grade Stainless Steel |
| Supplier technical detail | Spot channel markers over 1800 meters away! |
| Supplier technical detail | Total Wattage: 400W |
| Supplier dimension detail | Dimensions with Mounting Bracket (Width x Height): 41.4" x 4.125" |
| Supplier technical detail | Dimensions with Mounting Bracket (Width x Height): 41.4" x 4.125" |
| In The Box | Light bar Complete wiring harness with fuse, relay, and switch 12 gauge wire Mounting brackets All hardware is ready to install! |
| Size or rating stated in product name | 40" |
| Product-name configuration | Combo Optics |
| Product-name configuration | White Housing |
