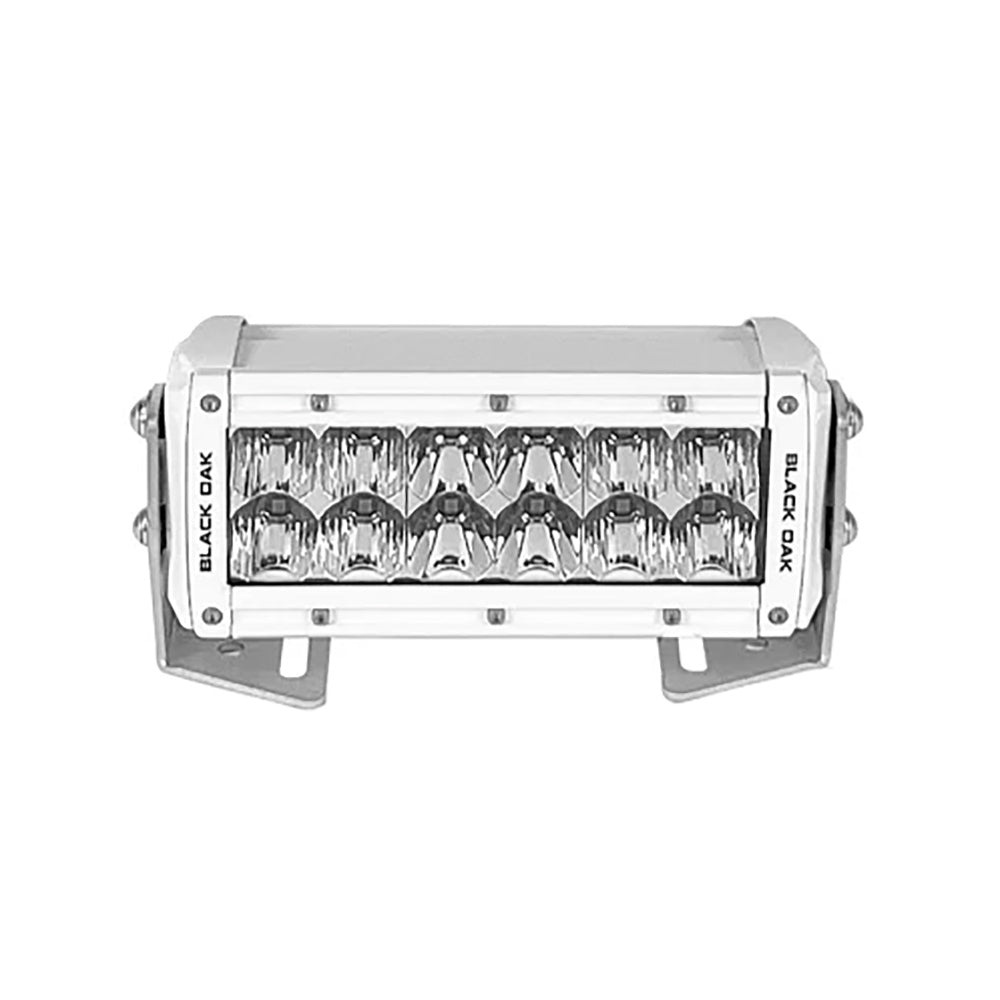

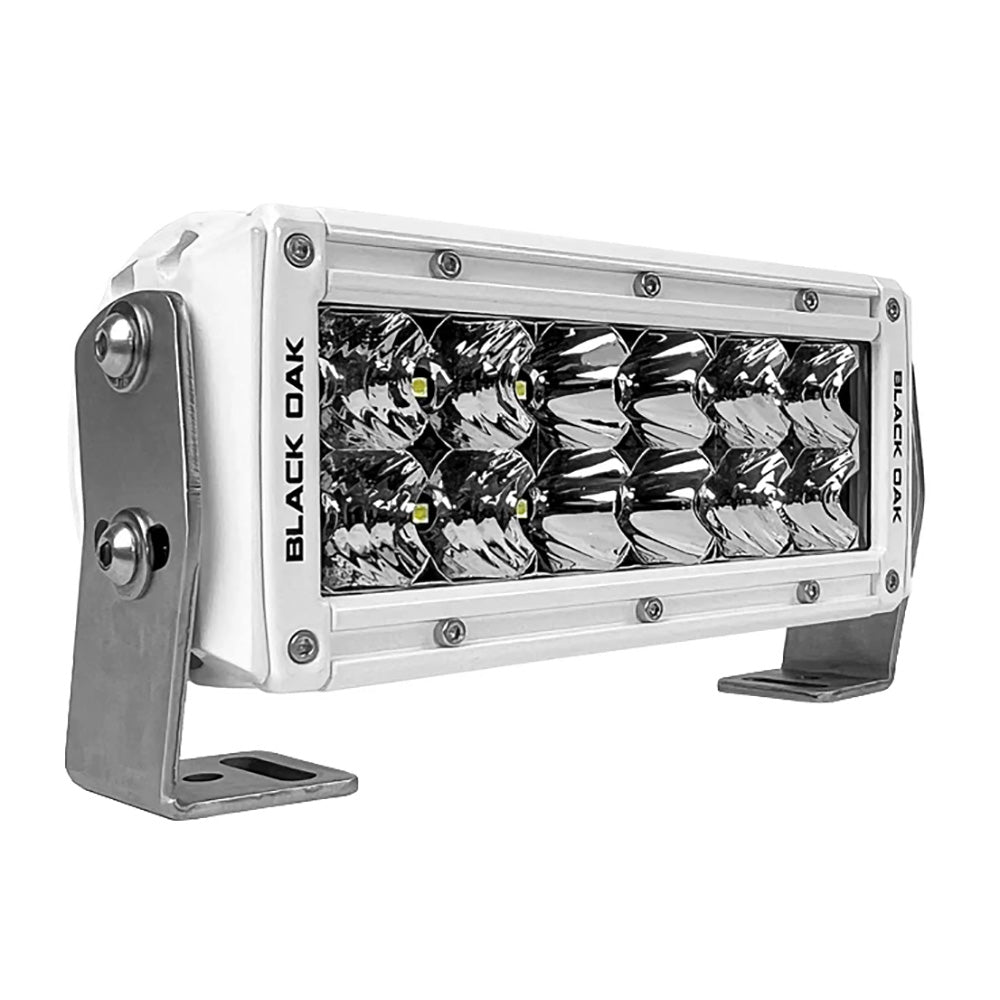

Pro Series 3.0 Double Row 6" LED Light Bar - Combo Optics - White Housing
This waterproof light bar is the definition of versatility. The 6" light bar in a combination (float/spot) pattern gives users the directional spread desired, with the option of moving the light up and down with Black Oak's mounting system. With its durable and completely submersible waterproof housing, this 6" light bar will be a number one lighting choice once installed.
Black Oak has taken the LED game to the next level. The Pro Series 3.0 features top-of-the-line LED tech, boasting a 20% increase in lumens, making this series of lights one of the brightest on the market.
Features:
- 360° Ceramic Protection against UV, Salt Water & Corrosion
- 2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
- Heavy-duty Dynamax housing for a 4x stronger frame
- Premium Dupont powder-coating for the highest quality and most resistant finish
- Combination Flood/Spot light pattern offers a superior lighting pattern

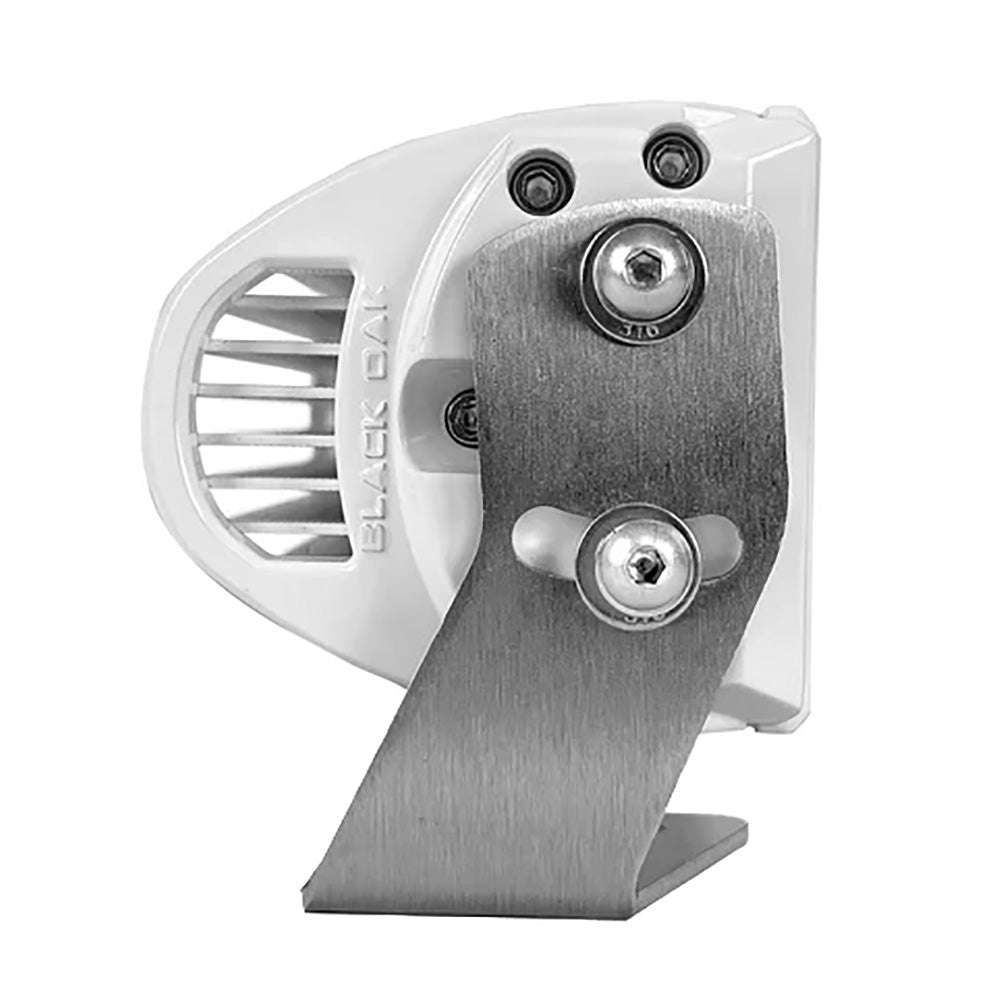

- Multi-mount brackets made of 9 gauge marine grade Stainless Steel
- Lens cover made of Lexan with a UV protectant
Activities & Uses:
- Perfect Jon boat bow light
- Marine flood light
- ATV or UTV brush guard lights
- Great as a deck light
- Loading & unloading equipment
Technical Specifications:
- Total Wattage: 60W
- Amp. Draw: 3.5
- LED Quantity: 40
- Weight: 7.6 lbs.
- Raw Lumens: 7,920
- Warranty: Lifetime
- IP Rating: IP69K
- Connection: Deutsch connector
- Dimensions with Mounting Bracket (Width x Height): 6" x 4.125"
In the Box:
- Light bar
- Complete wiring harness with fuse, relay, and switch
- 12 gauge wire
- Mounting brackets
- All hardware is ready to install!
*Sold as an Individual
Mfr. Part # 6CM-D5OS
FEATURES
FEATURES
- 360° Ceramic Protection against UV, Salt Water & Corrosion
- 2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
- Heavy-duty Dynamax housing for a 4x stronger frame
- Premium Dupont powder-coating for the highest quality and most resistant finish
- Combination Flood/Spot light pattern offers a superior lighting pattern
- Multi-mount brackets made of 9 gauge marine grade Stainless Steel
- Lens cover made of Lexan with a UV protectant
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Black Oak LED |
| Manufacturer part number | 6CM-D5OS |
| Beam Pattern | Spot-Flood Combo |
| Housing | White |
| Length (Inches) | 6" |
| Voltage - Input Range (Volts) | 12v |
| Total Wattage | 60W |
| Amp. Draw | 3.5 |
| LED Quantity | 40 |
| Weight | 7.6 lbs. |
| Raw Lumens | 7,920 |
| Warranty | Lifetime |
| IP Rating | IP69K |
| Connection | Deutsch connector |
| Dimensions with Mounting Bracket (Width x Height) | 6" x 4.125" |
| Supplier dimension detail | Pro Series 3.0 Double Row 6" LED Light Bar - Combo Optics - White Housing |
| Supplier technical detail | Pro Series 3.0 Double Row 6" LED Light Bar - Combo Optics - White Housing |
| Supplier technical detail | The 6" light bar in a combination (float/spot) pattern gives users the directional spread desired, with the option of moving the light up and down with Black Oak's mounting system. |
| Supplier technical detail | With its durable and completely submersible waterproof housing, this 6" light bar will be a number one lighting choice once installed. |
| Supplier material detail | Multi-mount brackets made of 9 gauge marine grade Stainless Steel |
| Supplier technical detail | Multi-mount brackets made of 9 gauge marine grade Stainless Steel |
| Supplier technical detail | Total Wattage: 60W |
| Supplier dimension detail | Dimensions with Mounting Bracket (Width x Height): 6" x 4.125" |
| Supplier technical detail | Dimensions with Mounting Bracket (Width x Height): 6" x 4.125" |
| In The Box | Light bar Complete wiring harness with fuse, relay, and switch 12 gauge wire Mounting brackets All hardware is ready to install! |
| Size or rating stated in product name | 6" |
| Product-name configuration | Combo Optics |
| Product-name configuration | White Housing |
