Blue Sea PowerBar 1000 - 8 5/16" Terminal Studs w/Cover

SKU: blu-1992  |  Manuf. Code: 1992
List Price:  $235.99 USD
$201.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

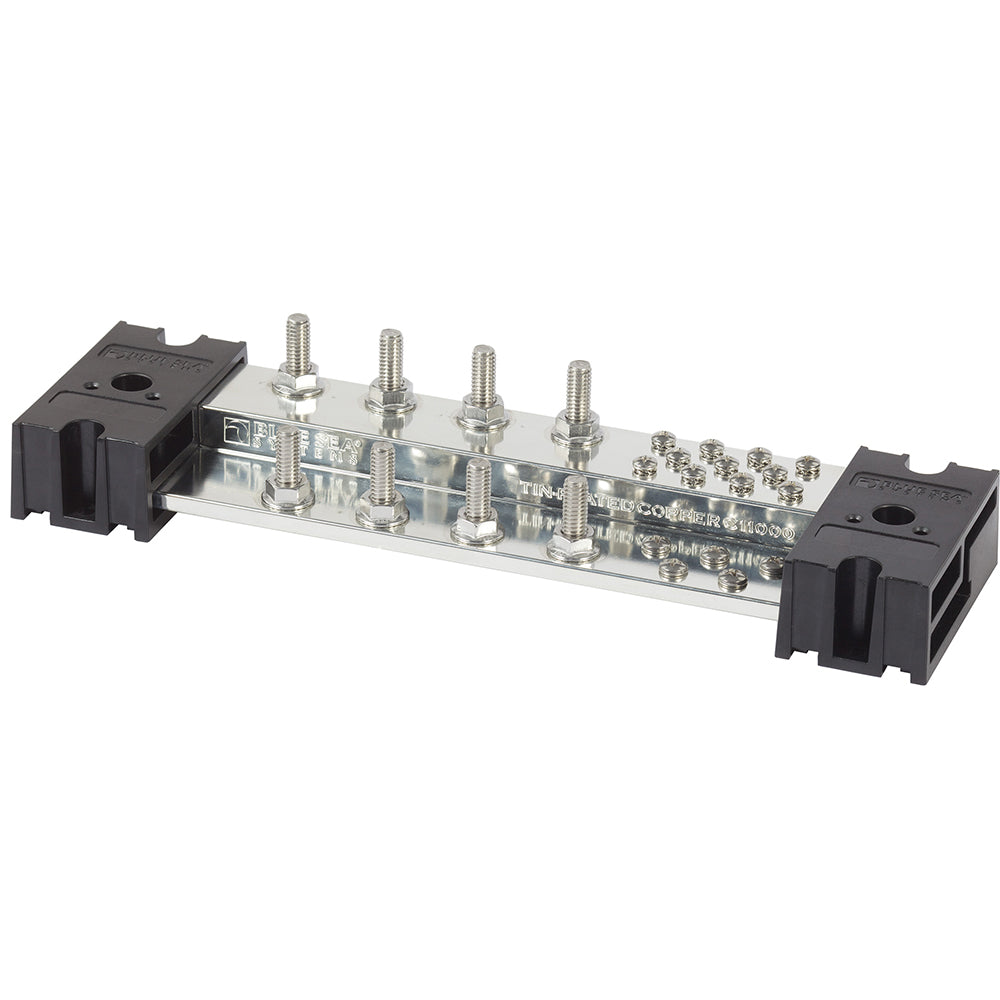

PowerBar 1000 - 8 5/16" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:

  • 1,000 Amp busbar for large complex wiring systems
  • Tin plated pure electrical copper for maximum conductivity
  • Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
  • Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
  • One-piece serrated flange nuts ensure correct and secure connections
  • Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
  • Busbar may be cut to a shorter length to accommodate constricted spaces
  • Bi-directional busbar end caps allow the ganging of additional busbars

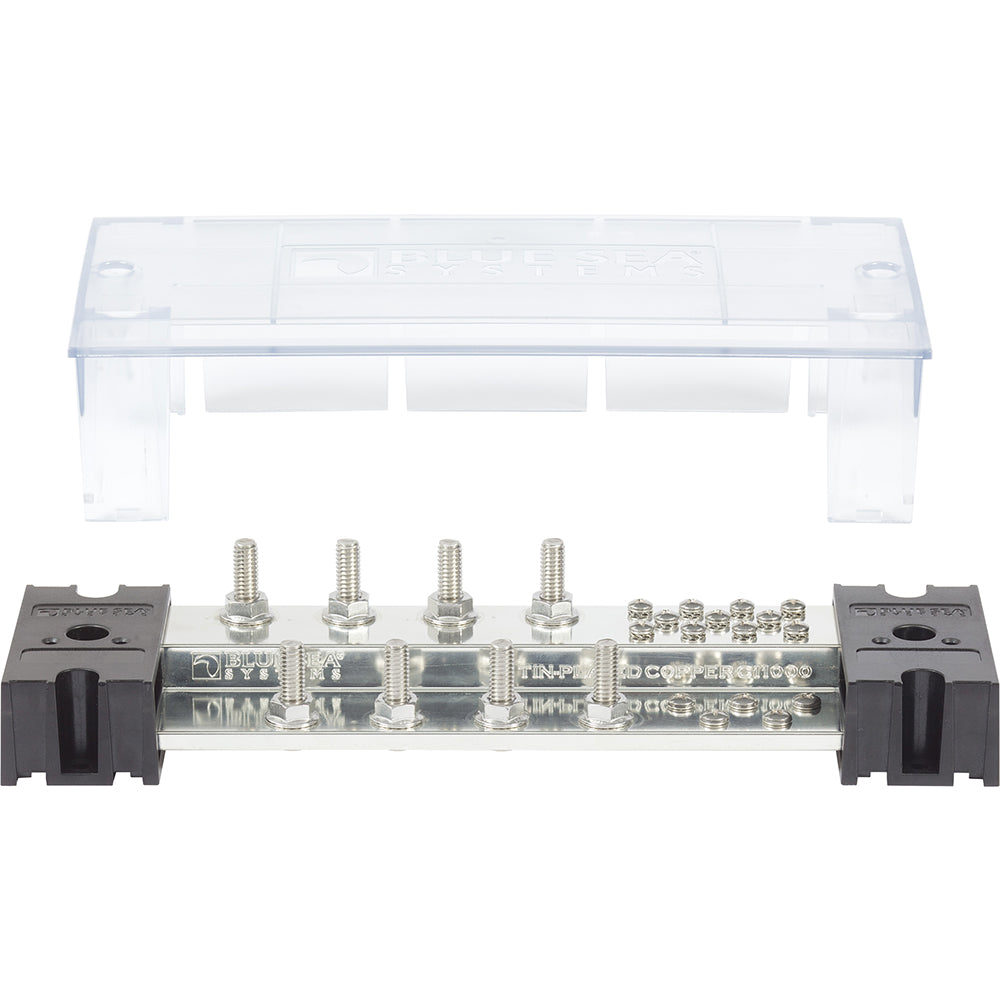

  • Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:
  • Number of Terminal Studs: 8
  • Continuous Rating: 1000A
  • Bus Material: Tin-Plated Copper C11000
  • Mounting Holes: Accepts #10 (M5) Screws
  • Terminal Stud Size: 5/16

Our Part # BLU-1992 | Mfr. Part # 1992

FEATURES

  • 1,000 Amp busbar for large complex wiring systems
  • Tin plated pure electrical copper for maximum conductivity
  • Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
  • Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
  • One-piece serrated flange nuts ensure correct and secure connections
  • Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
  • Busbar may be cut to a shorter length to accommodate constricted spaces
  • Bi-directional busbar end caps allow the ganging of additional busbars
  • Snap on insulating cover meets ABYC and USCG requirements and includes label recess

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number1992
Number of Terminal Studs8
Continuous Rating1000A
Bus MaterialTin-Plated Copper C11000
Mounting HolesAccepts #10 (M5) Screws
Terminal Stud Size5/16
Supplier technical detailPowerBar 1000 - 8 5/16" Terminal Studs w/Cover
Supplier material detailStainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
Supplier application or construction detailSnap on insulating cover meets ABYC and USCG requirements and includes label recess
Size or rating stated in product name8 5/16"
Product-name configuration8 5/16" Terminal Studs w/Cover
