Blue Sea 3116 - SMS Panel Enclosure w/ELCI (30A) and 3 Blanks - 120V
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION

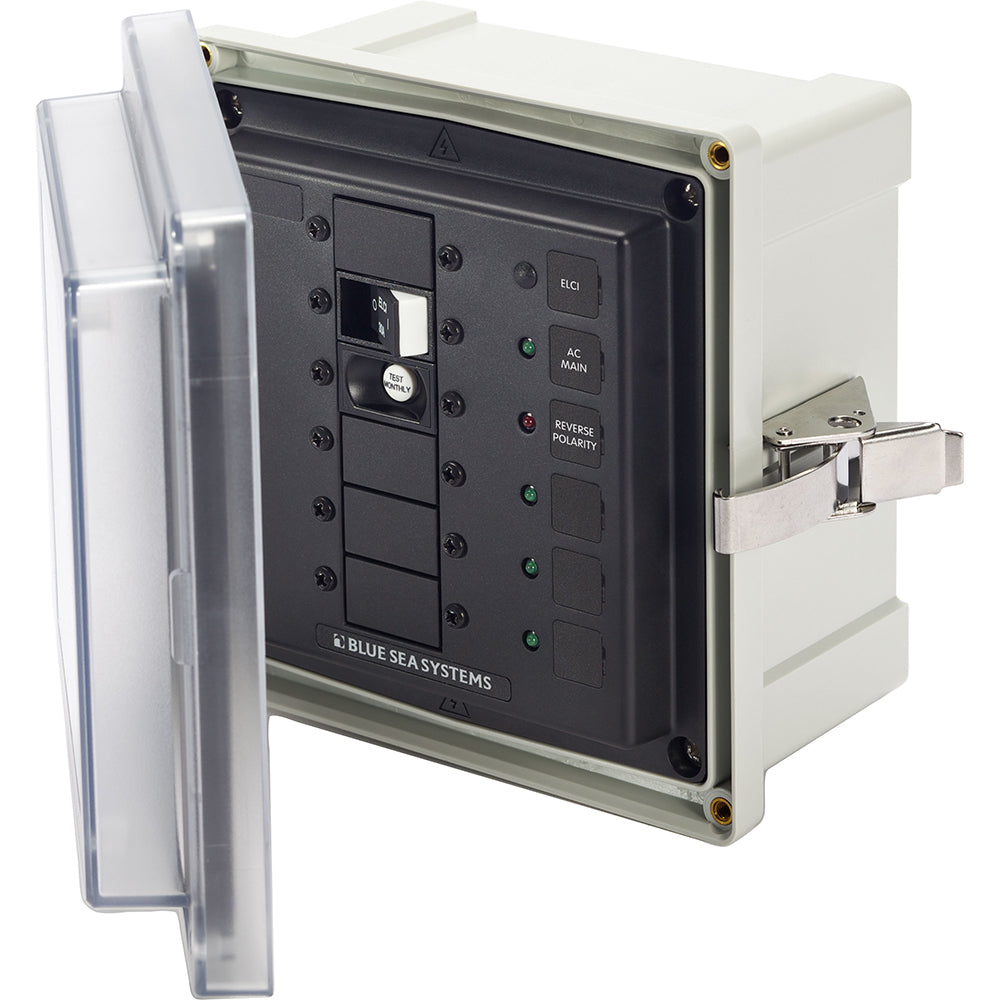

3116 - SMS Panel Enclosure with ELCI (30A) and 3 Blanks - 120V
The 3116 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for back lighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x ELCI (30A) Main 120V and 3 x Blank
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 4 x Green ON (120V AC)
In the Box:
- 3116 Enclosure
- Glands x 5
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
Our Part # BLU-3116 | Mfr. Part # 3116
FEATURES
FEATURES
- Blank apertures for custom breaker loading
- Glass filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for back lighting and ON indication
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Blue Sea Systems |
| Manufacturer part number | 3116 |
| Supplier technical detail | 3116 - SMS Panel Enclosure with ELCI (30A) and 3 Blanks - 120V |
| Supplier application or construction detail | The 3116 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet. |
| Supplier material detail | Easily removable stainless steel hinge pin for unobstructed installation |
| Supplier material detail | Stainless steel latch secures cover without penetrating the enclosure |
| Supplier application or construction detail | Includes waterproof glands |
| Supplier technical detail | Circuit Breaker Type - 1 x ELCI (30A) Main 120V and 3 x Blank |
| Supplier dimension detail | Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm) |
| Supplier dimension detail | Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm) |
| Supplier technical detail | LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 4 x Green ON (120V AC) |
| In The Box | 3116 Enclosure Glands x 5 Labels Mounting hardware Instruction manual |
| Product-name configuration | SMS Panel Enclosure w/ELCI (30A) and 3 Blanks |
| Product-name configuration | 120V |
