DESCRIPTION

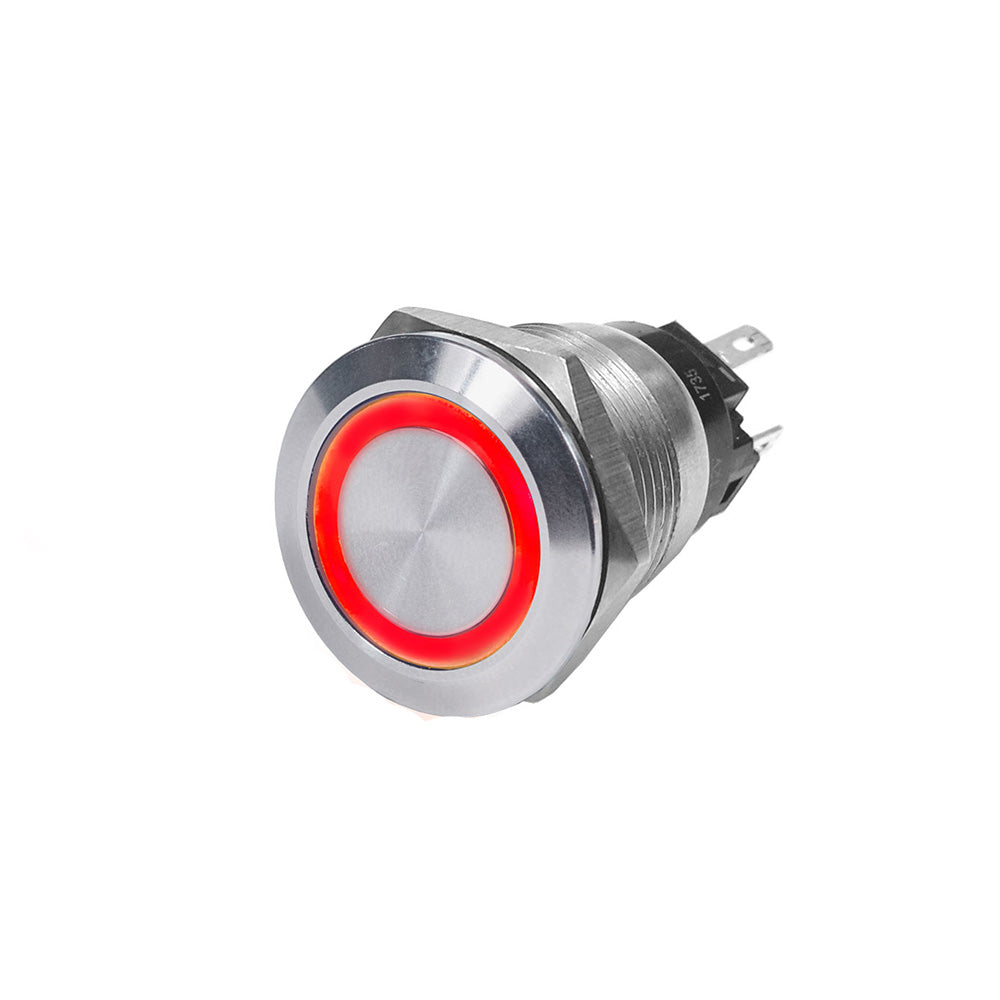

4162 SS Push Button Switch - Off-On - Red - 10A

  • 10A continuous
  • Single Pole Double Throw or Single Pole Single Throw
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)

Specifications

  • Action: OFF-ON
  • Amperage: 10A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum LED Operating Current: 20mA
  • Minimum Operating Temperature: -10° C
  • Maximum Operating Temperature: 70° C
  • Minimum Storage Temperature: -55° C
  • Maximum Storage Temperature: 85° C
  • Illumination: Independent – Separate contacts for LED power
  • Mounting Hole: 19mm
  • Switching Cycles: 18,000
  • Termination: 5 – 0.110inch Quick Connect terminals

Mfr. Part # 4162

FEATURES

  • 10A continuous
  • Single Pole Double Throw or Single Pole Single Throw
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)
  • Action: OFF-ON
  • Amperage: 10A @ 12V DC
  • Nominal Voltage: 12V DC

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number4162
ColorStainless
ActionON-OFF
ActionOFF-ON
Amperage10A @ 12V DC
Nominal Voltage12V DC
Maximum LED Operating Current20mA
Minimum Operating Temperature-10° C
Maximum Operating Temperature70° C
Minimum Storage Temperature-55° C
Maximum Storage Temperature85° C
IlluminationIndependent – Separate contacts for LED power
Mounting Hole19mm
Switching Cycles18,000
Termination5 – 0.110inch Quick Connect terminals
Supplier technical detail4162 SS Push Button Switch - Off-On - Red - 10A
Supplier technical detailAmperage: 10A @ 12V DC
Supplier technical detailNominal Voltage: 12V DC
Supplier technical detailMaximum LED Operating Current: 20mA
Supplier technical detailMounting Hole: 19mm
Product-name configurationOff-On
Product-name configurationRed
Product-name configuration10A
