DESCRIPTION

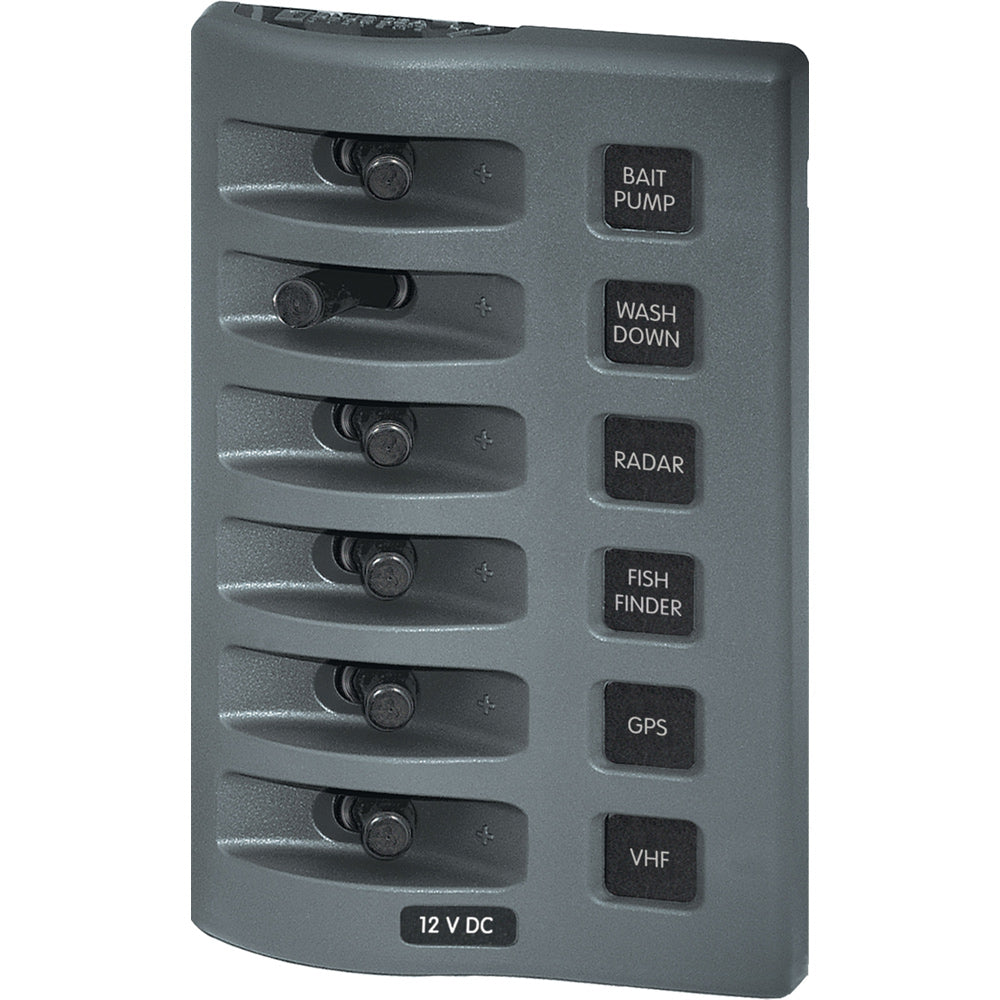

WeatherDeck® 12V DC Waterproof Switch Panel - 6 Position

  • Integrated switch guards reduce the risk of accidental switching
  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws


Weatherproof: Waterproof
Positions: 6
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 6.00"(152.4 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 1.15lb (0.52 kg)

Our Part # BLU-4307 | Mfr. Part # 4307

FEATURES

  • Integrated switch guards reduce the risk of accidental switching
  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number4307
Voltage12/24v
AC/DCDC
Max Breaker Quantity6
WaterproofWaterproof
Supplier technical detailWeatherDeck® 12V DC Waterproof Switch Panel - 6 Position
WeatherproofWaterproof
Positions6
Nominal Voltage12V DC/24V DC
Maximum Amperage15A @ 12V DC (per circuit)
Panel Cumulative Rating45A
MaterialReinforced Polycarbonate
Height6.00"(152.4 mm)
Width3.88"(98.55 mm)
Depth2.50"(63.5 mm)
Weight1.15lb (0.52 kg)
Product-name configuration6 Position
