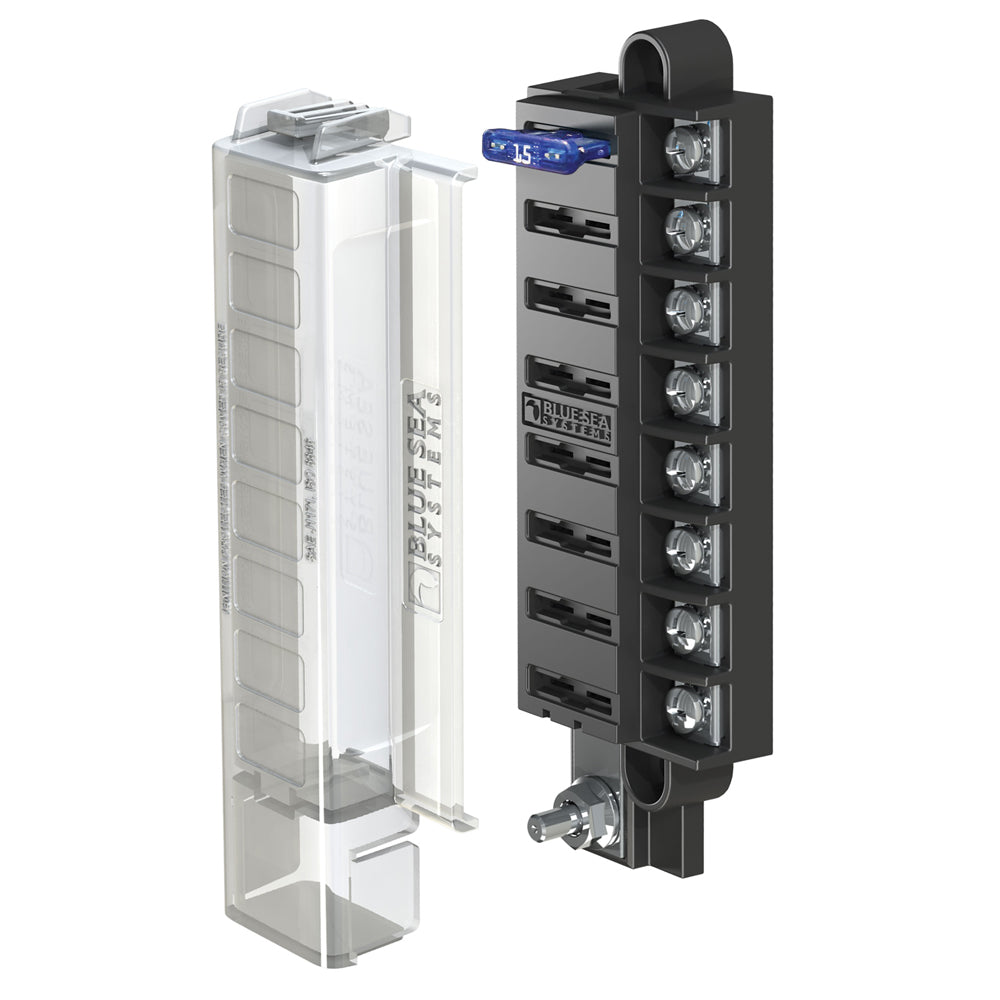

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

SKU: blu-5046  |  Manuf. Code: 5046
$72.55 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

  • Compact common source fuse block
  • Accepts ATO® and ATC® fast acting blade fuses
  • Single side entry wiring
  • Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Small format standard and custom labels available


Specifications
  • Circuits:8
  • Maximum Amperage: 100A per block / 30A per circuit
  • Maximum Voltage:32V DC
  • Mounting: #8 Screw (M4)
  • Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

Our Part # BLU-5046 | Mfr. Part # 5046

FEATURES

  • Compact common source fuse block
  • Accepts ATO® and ATC® fast acting blade fuses
  • Single side entry wiring
  • Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number5046
Fuse TypeATO/ATC
TypeFuse Blocks
Circuits8
Maximum Amperage100A per block / 30A per circuit
Maximum Voltage32V DC
Mounting#8 Screw (M4)
Screw Terminal Torque#8-32 Screws with captive star lock washer in-lb (0 Nm)
Product-name configuration8 Circuits w/Cover
