Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

SKU: blu-5052  |  Manuf. Code: 5052
$90.08 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

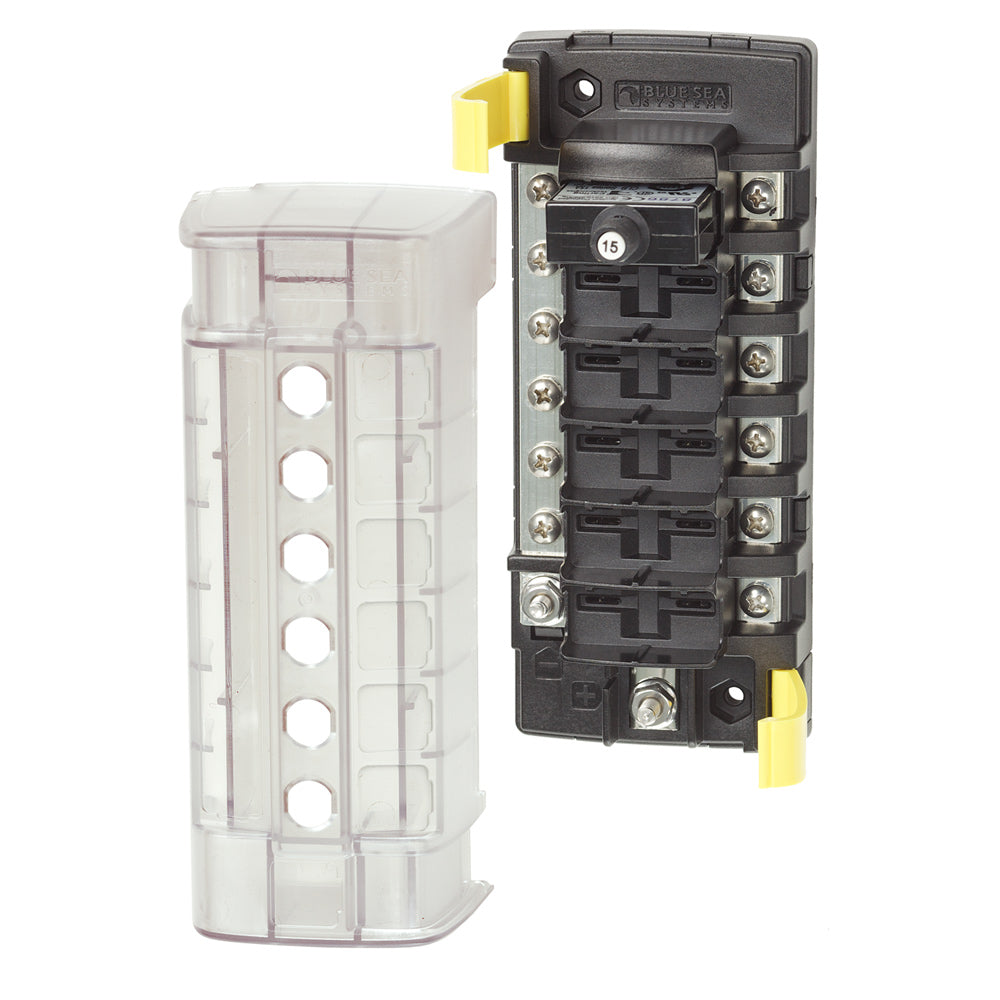

ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals

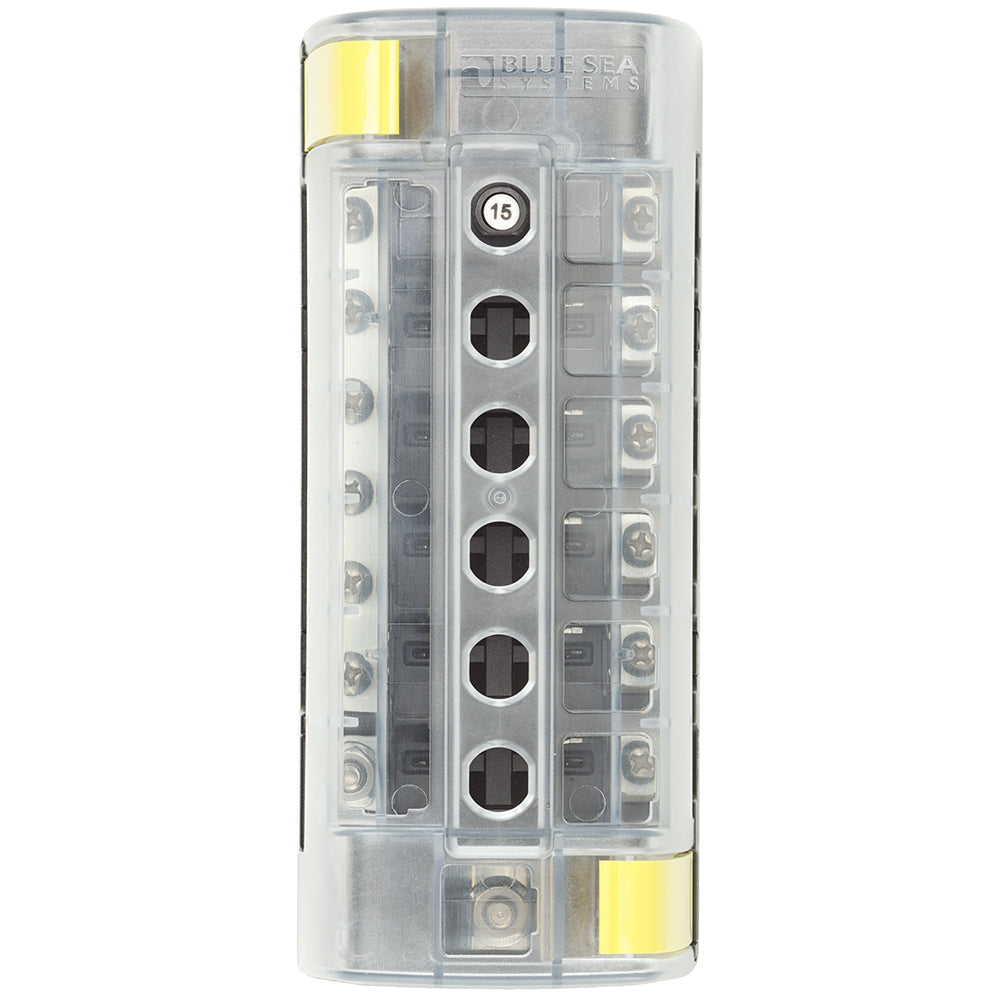

  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals

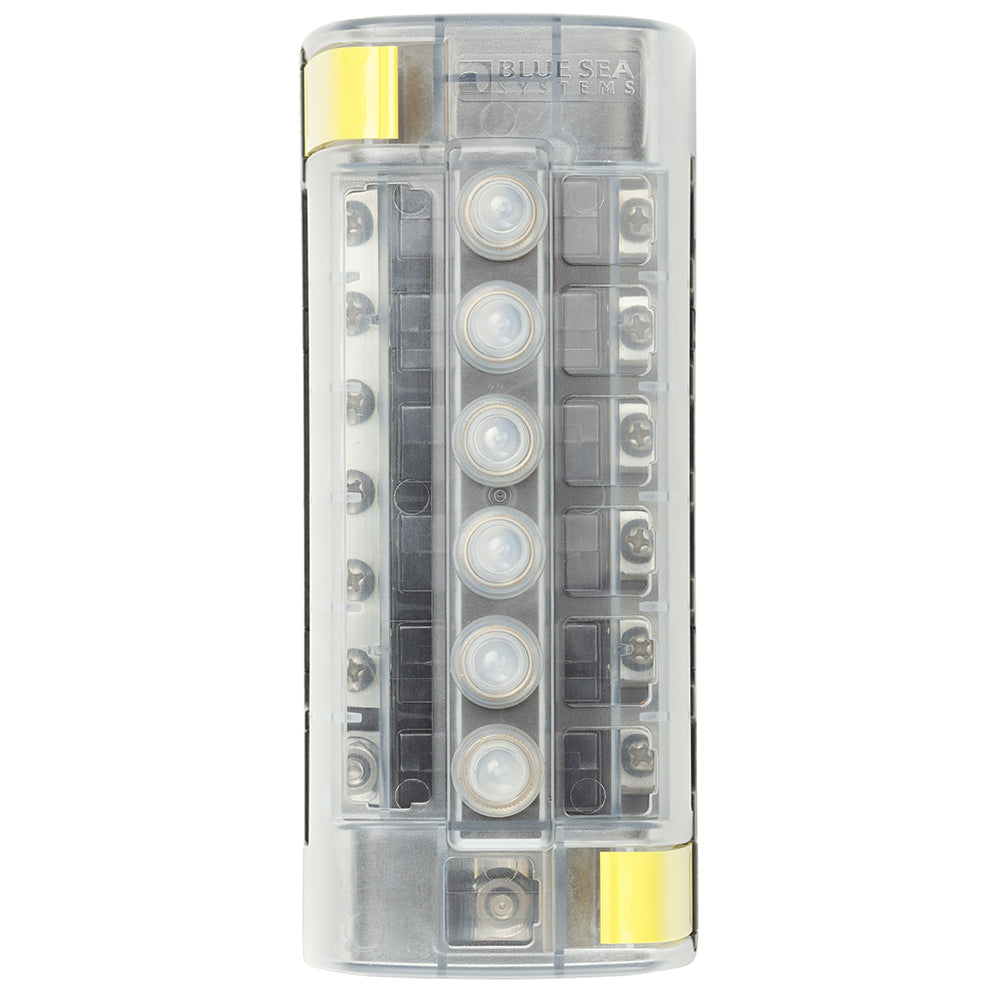

  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

Our Part # BLU-5052 | Mfr. Part # 5052

FEATURES

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number5052
Amperage100/32a
Circuits6
Maximum Amperage100A (per block) 32A (per circuit)
Maximum Voltage32V DC
Mounting#8 Screw (M4) or #8 Nut
Negative BusYes
SourceCommon SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature60° C
Mounting Centers5.63"(143 mm)
Screw Terminal Type#8-32 Screws with Captive Star Lock Washer
Height6.69"(169.93 mm)
Weight0.75lb (0.34 kg)
Product-name configuration6 Position w/Negative Bus
