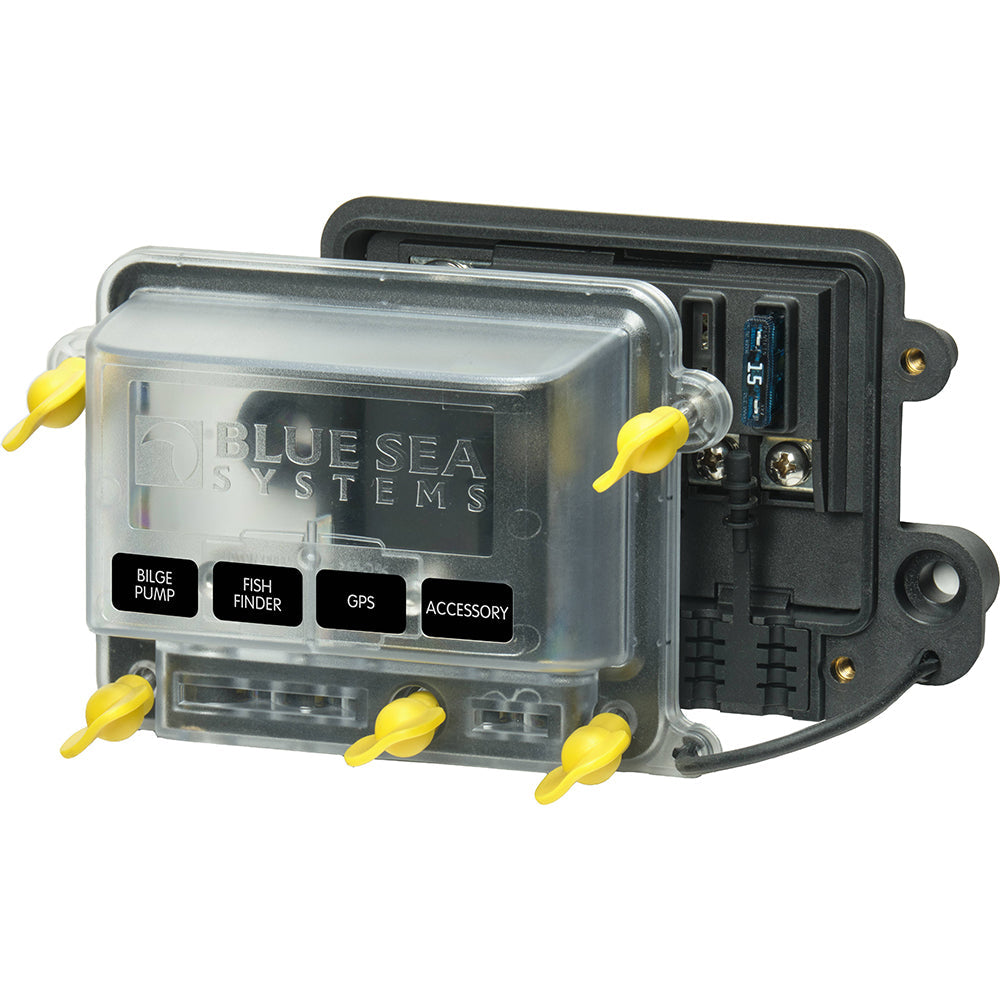

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover

SKU: blu-5056100  |  Manuf. Code: 5056100
$55.99 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

5056100 - Water Resistant ST-Blade Fuse Block with Cover

This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint.  Now with wing screws for toolless access.

Features:

  • Water-resistant design with a standard ring or spade-type terminals
  • Allows for simple wiring with standard tools
  • Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
  • Accepts ATO and ATC fast acting blade fuses
  • Accepts ATO/ATC-Style Low Profile Circuit Breakers
  • Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
  • 5056100 meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Includes four write-on circuit labels
  • Spare fuse and fastener storage in cover
  • Wing screws designed for tool-free installation of cover to meet ABYC compliance

Technical Specifications:

  • Cover - yes
    • Maximum Voltage - 32V DC
    • Bus Material - Tin-plated Copper
    • Mounting Holes - Accepts 1/4" (6mm) screws
    • Terminal Screws - 4 x # 8-32 with captive star lock washer
    • Wire Size - Input - (1) 8 AWG to 4 AWG
    • Wire Size - Load - (4) 16 AWG to 10 AWG

In the Box:

  • 5056100 Busbar
  • Instruction Manual

*Sold as an Individual

Our Part # BLU-5056100 | Mfr. Part # 5056100

FEATURES

  • Water-resistant design with a standard ring or spade-type terminals
  • Allows for simple wiring with standard tools
  • Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
  • Accepts ATO and ATC fast acting blade fuses
  • Accepts ATO/ATC-Style Low Profile Circuit Breakers
  • Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
  • 5056100 meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Includes four write-on circuit labels
  • Spare fuse and fastener storage in cover
  • Wing screws designed for tool-free installation of cover to meet ABYC compliance

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number5056100
Supplier application or construction detailIncludes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
Supplier technical detailNests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
Supplier application or construction detailIncludes four write-on circuit labels
Supplier application or construction detailWing screws designed for tool-free installation of cover to meet ABYC compliance
Supplier technical detailCover - yesMaximum Voltage - 32V DC
Supplier technical detailMounting Holes - Accepts 1/4" (6mm) screws
Supplier technical detailWire Size - Input - (1) 8 AWG to 4 AWG
Supplier technical detailWire Size - Load - (4) 16 AWG to 10 AWG
In The Box5056100 Busbar Instruction Manual
Product-name configurationWater Resistant ST-Blade Fuse Block w/Cover
