DESCRIPTION

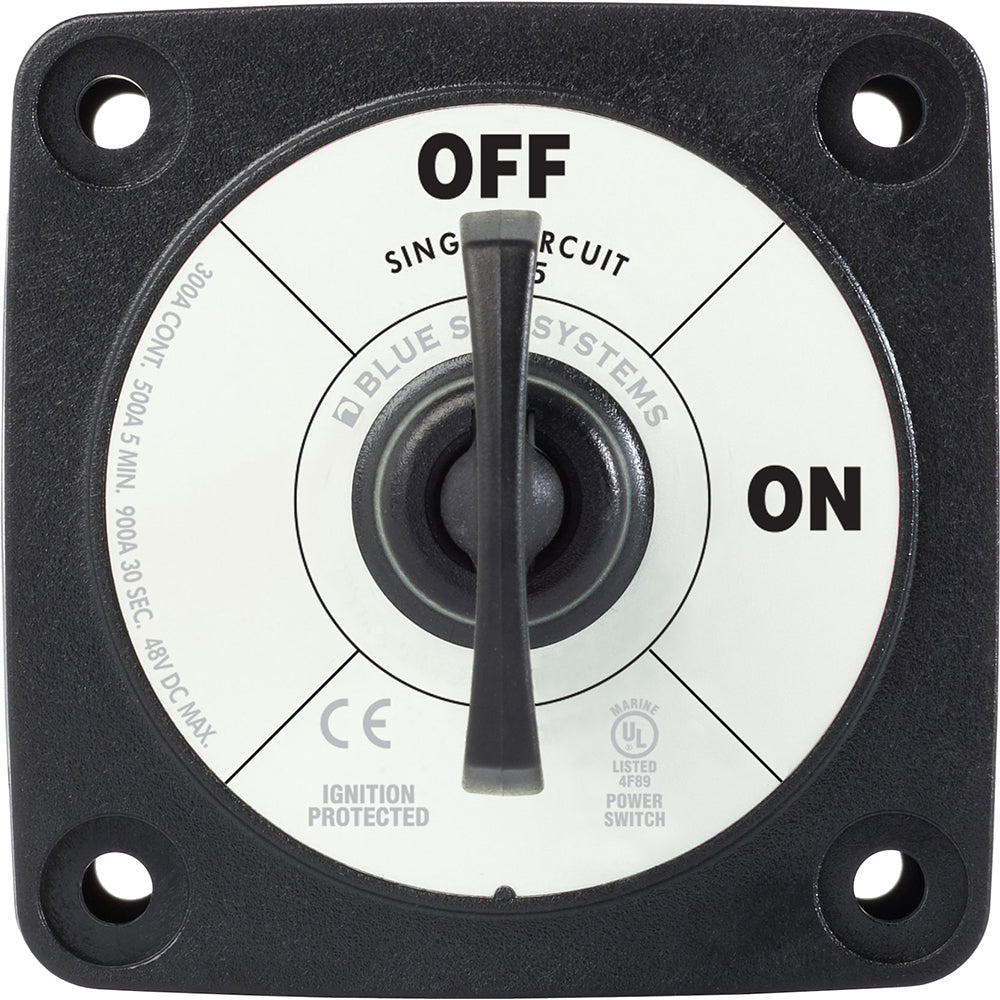

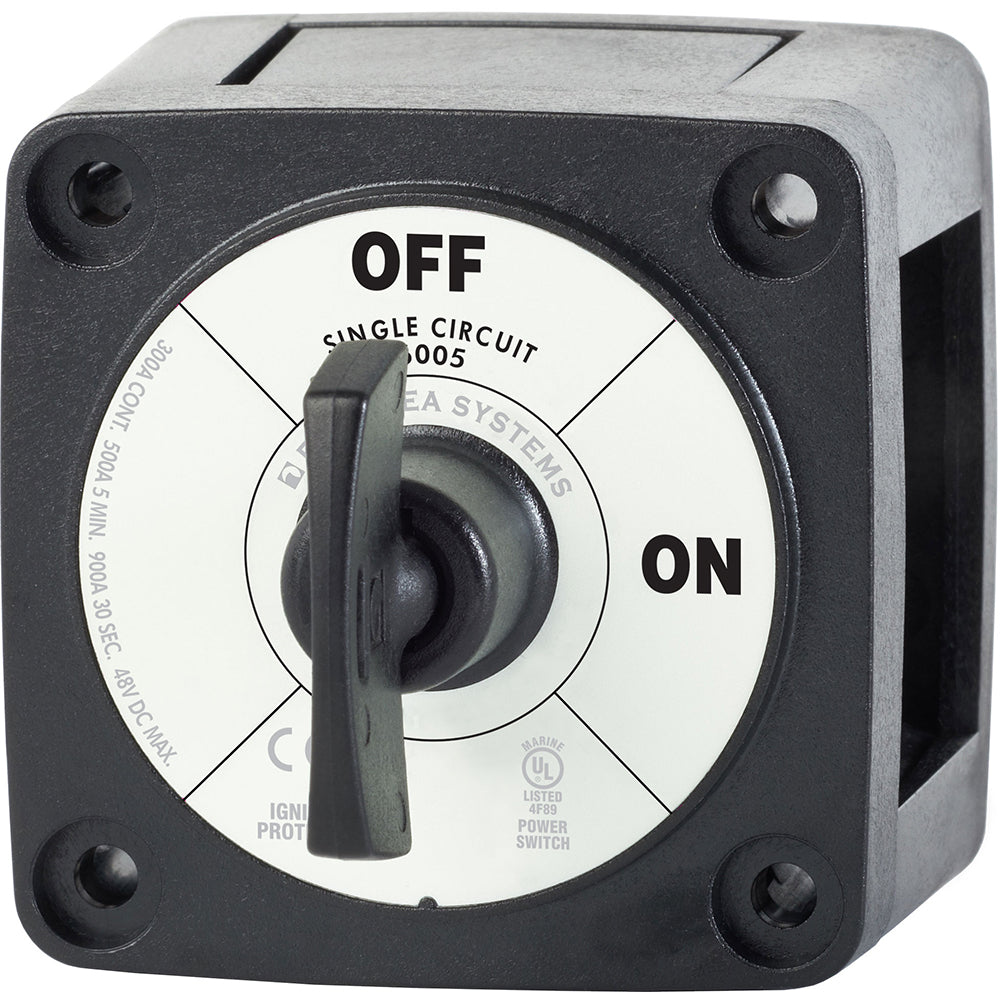

m-Series Mini On-Off Battery Switch with Key - Black

Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.

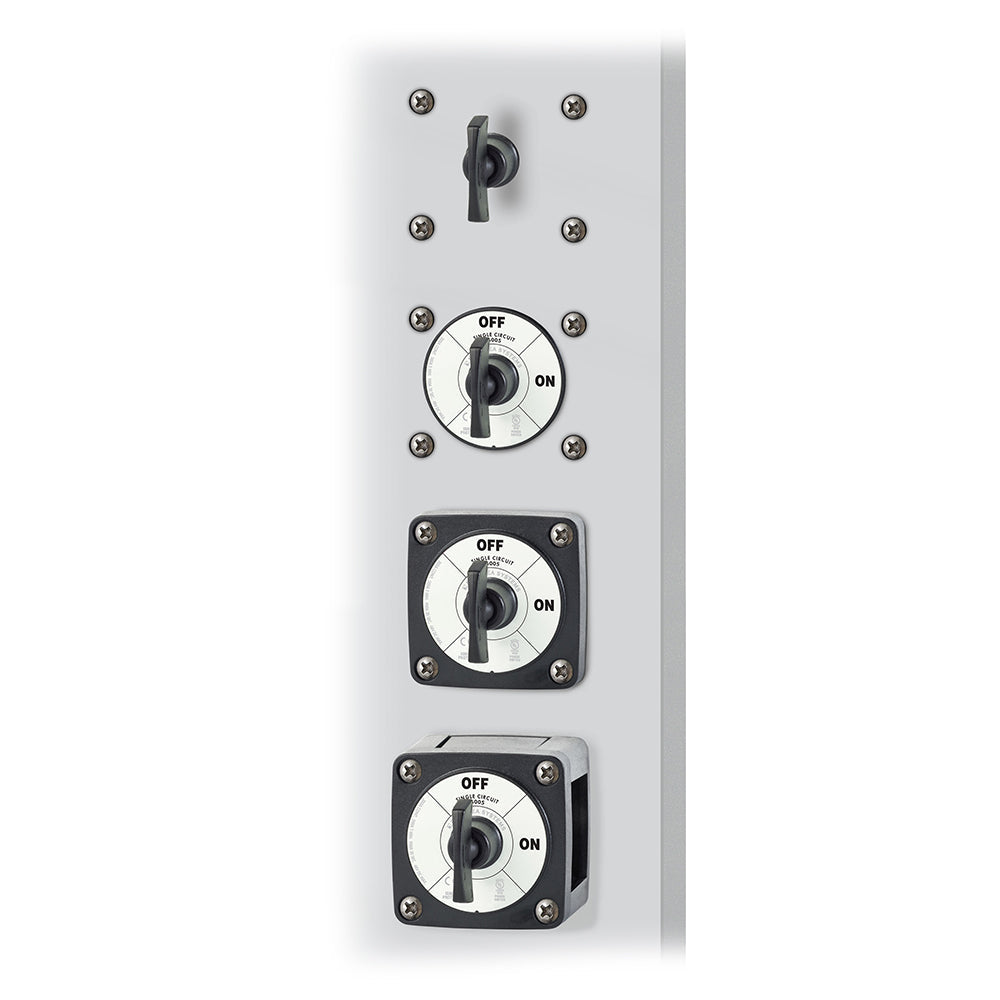

Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.

Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw

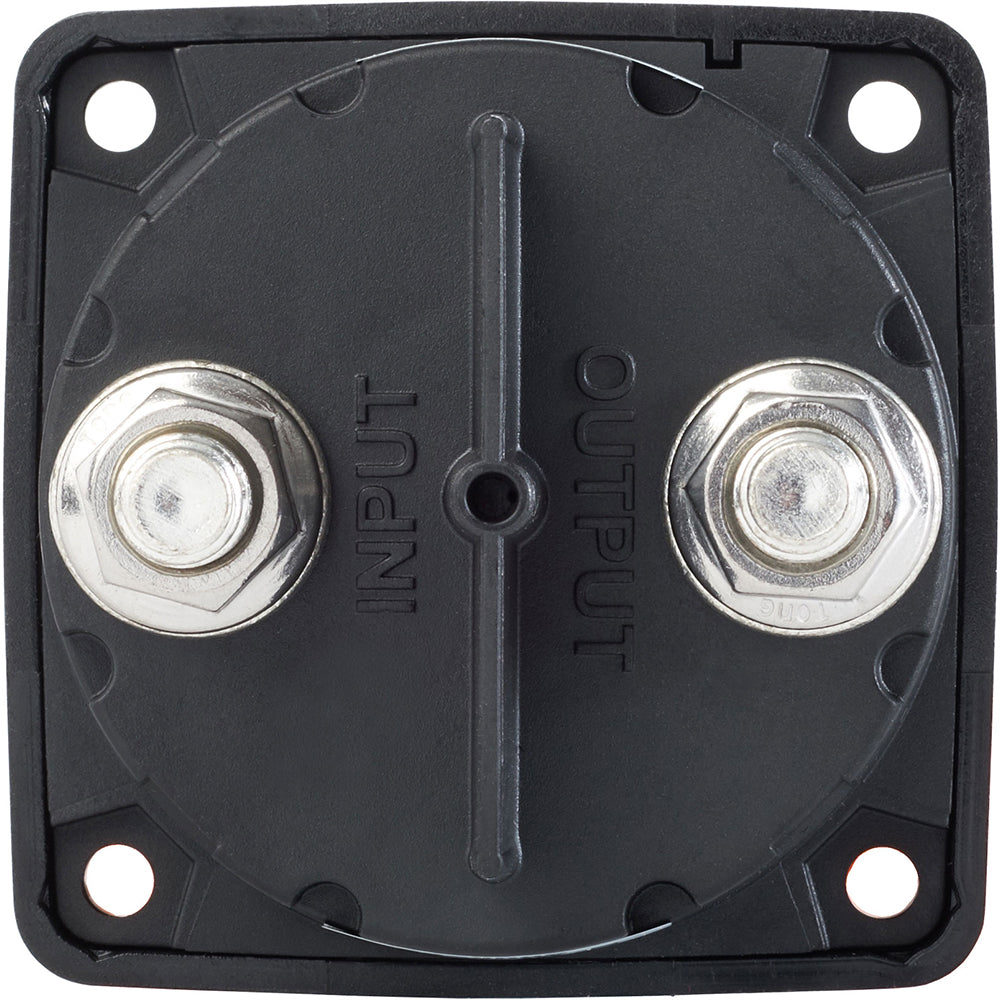

Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.62lb (0.28/ kg)

Our Part # BLU-6005200 | Mfr. Part # 6005200

FEATURES

  • m-Series Mini On-Off Battery Switch with Key - Black
  • Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.
  • Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.
  • Switch Type: Single Circuit ON-OFF
  • Switch Positions: 2
  • Battery Combine: No
  • Alternator Field Disconnect: No

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number6005200
AFDNo
Continuous Amperage300a
Switch TypeSingle Circuit ON-OFF
ColorBlack
Switch Positions2
Battery CombineNo
Alternator Field DisconnectNo
Maximum Voltage48V DC
Continuous Rating300A
Intermittent Rating500A (5 min)
Cranking Rating 10 sec1500A
Supplier technical detailCranking Rating 10 sec: 1500A
Cranking Rating 1 min775A
Supplier technical detailCranking Rating 1 min: 775A
Battery Inputs1
Cable Clearance For 4/0 AWG Cables1.12in (28.45 mm)
Supplier technical detailCable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings4/0 AWG (120mm²)
Supplier technical detailCable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting HolesAccept #10 Screw
Terminal Stud Size3/8"-16 (M10)
Terminal Stud Torque120 in-lb (13.56 Nm)
Weight0.62lb (0.28/ kg)
Product-name configurationBlack
