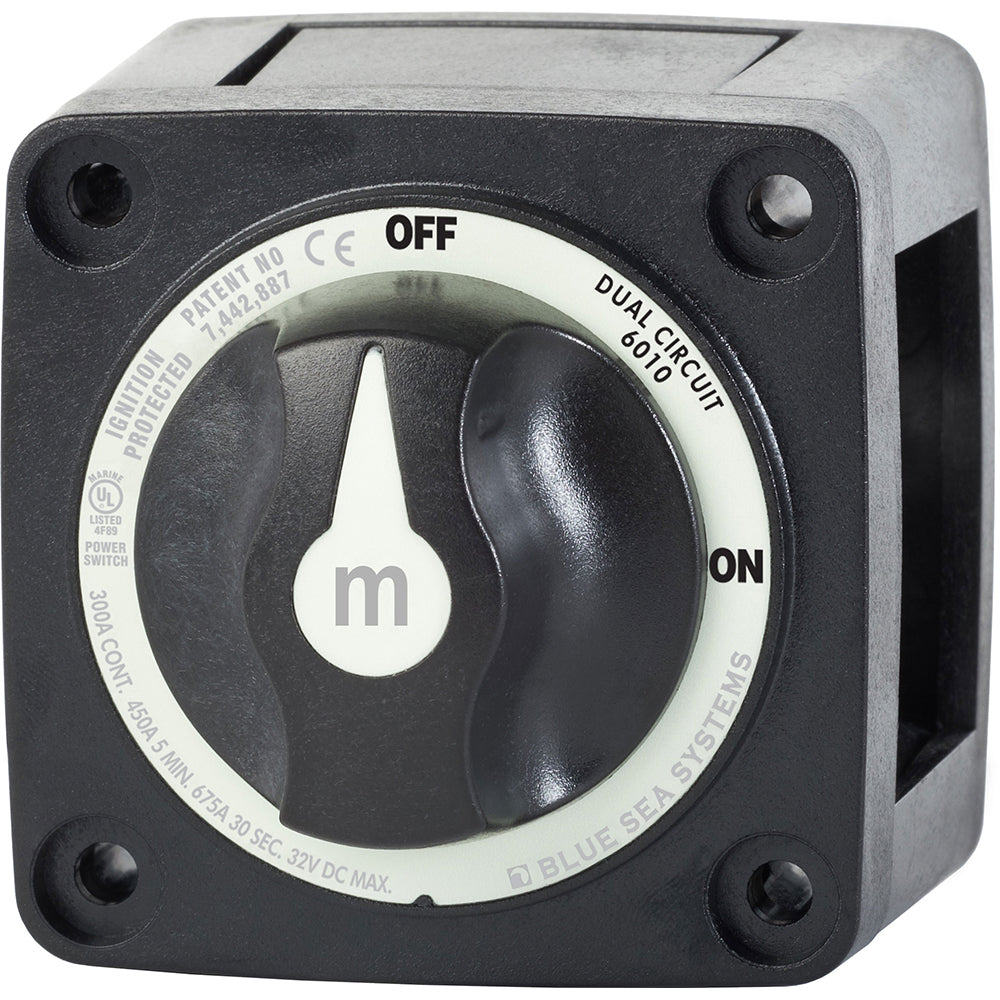

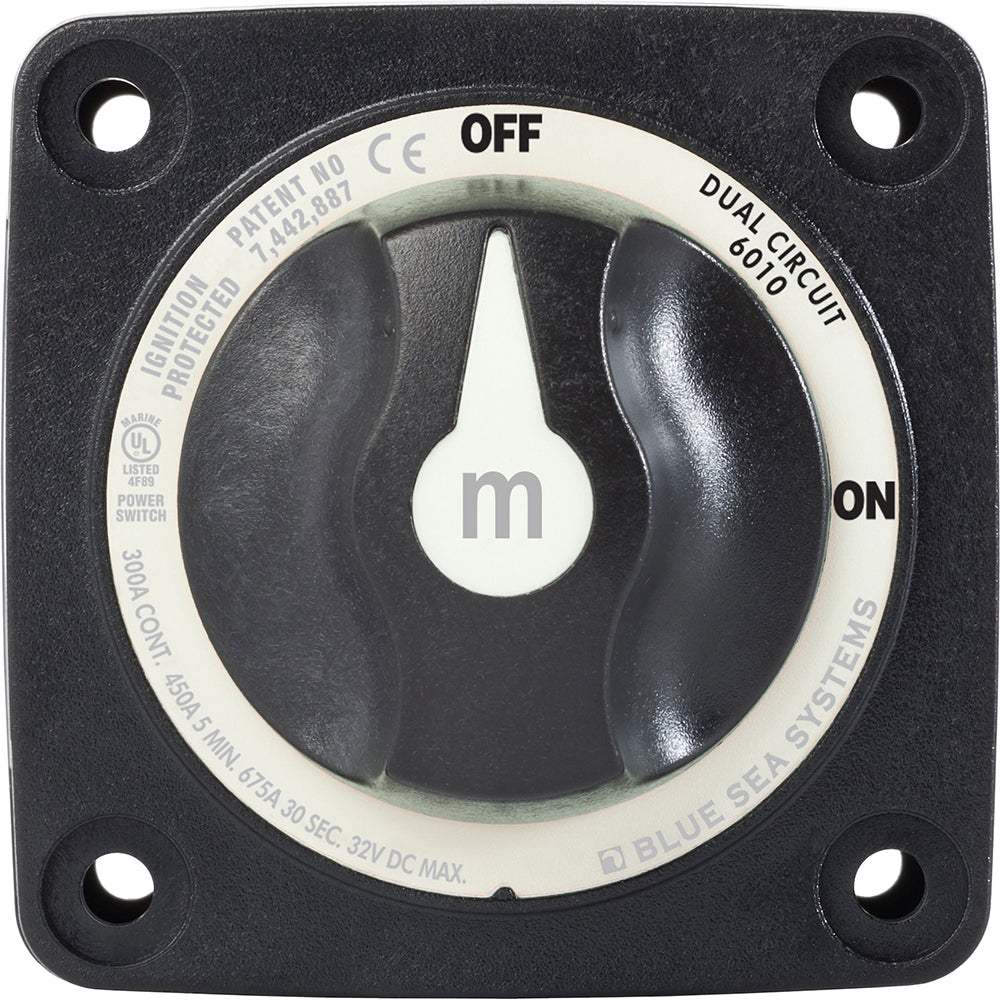

Blue Sea 6010200 Battery Switch Dual Circuit - Black

SKU: blu-6010200  |  Manuf. Code: 6010200
$73.53 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

m-Series Mini Dual Circuit Battery Switch - Black

Simultaneously switches two isolated battery banks.

Switch Type: Dual Circuit
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw

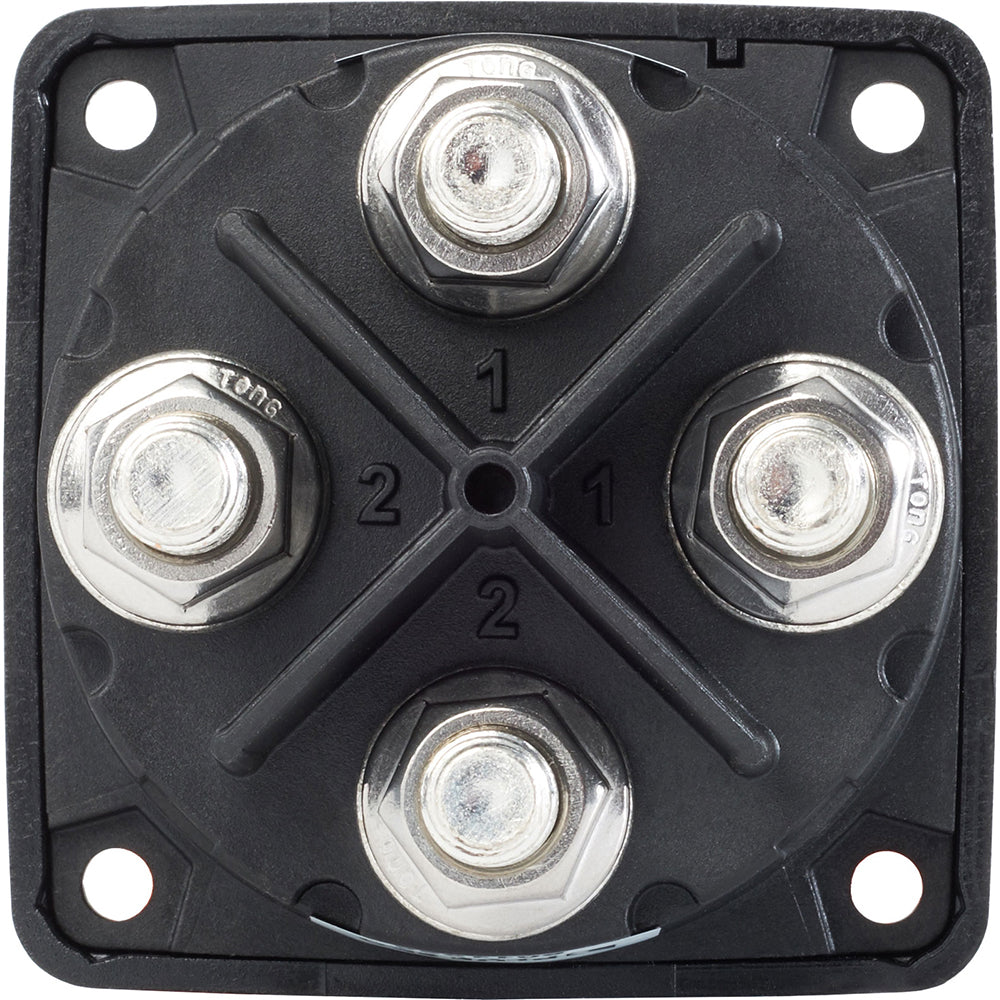

Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)

Our Part # BLU-6010200 | Mfr. Part # 6010200

FEATURES

  • m-Series Mini Dual Circuit Battery Switch - Black
  • Simultaneously switches two isolated battery banks.
  • Switch Type: Dual Circuit
  • Switch Positions: 2
  • Battery Combine: No
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number6010200
AFDNo
Continuous Amperage300a
Switch TypeDual Circuit
ColorBlack
Switch Positions2
Battery CombineNo
Alternator Field DisconnectNo
Maximum Voltage32V DC
Continuous Rating300A
Intermittent Rating450A (5 min)
Cranking Rating 10 sec1000A
Supplier technical detailCranking Rating 10 sec: 1000A
Cranking Rating 1 min650A
Supplier technical detailCranking Rating 1 min: 650A
Battery Inputs2
Cable Clearance For 4/0 AWG Cables1.12in (28.45 mm)
Supplier technical detailCable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings4/0 AWG (120mm²)
Supplier technical detailCable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting HolesAccept #10 Screw
Terminal Stud Size3/8"-16 (M10)
Terminal Stud Torque120 in-lb (13.56 Nm)
Weight0.80lb (0.36 kg)
Product-name configurationBlack
