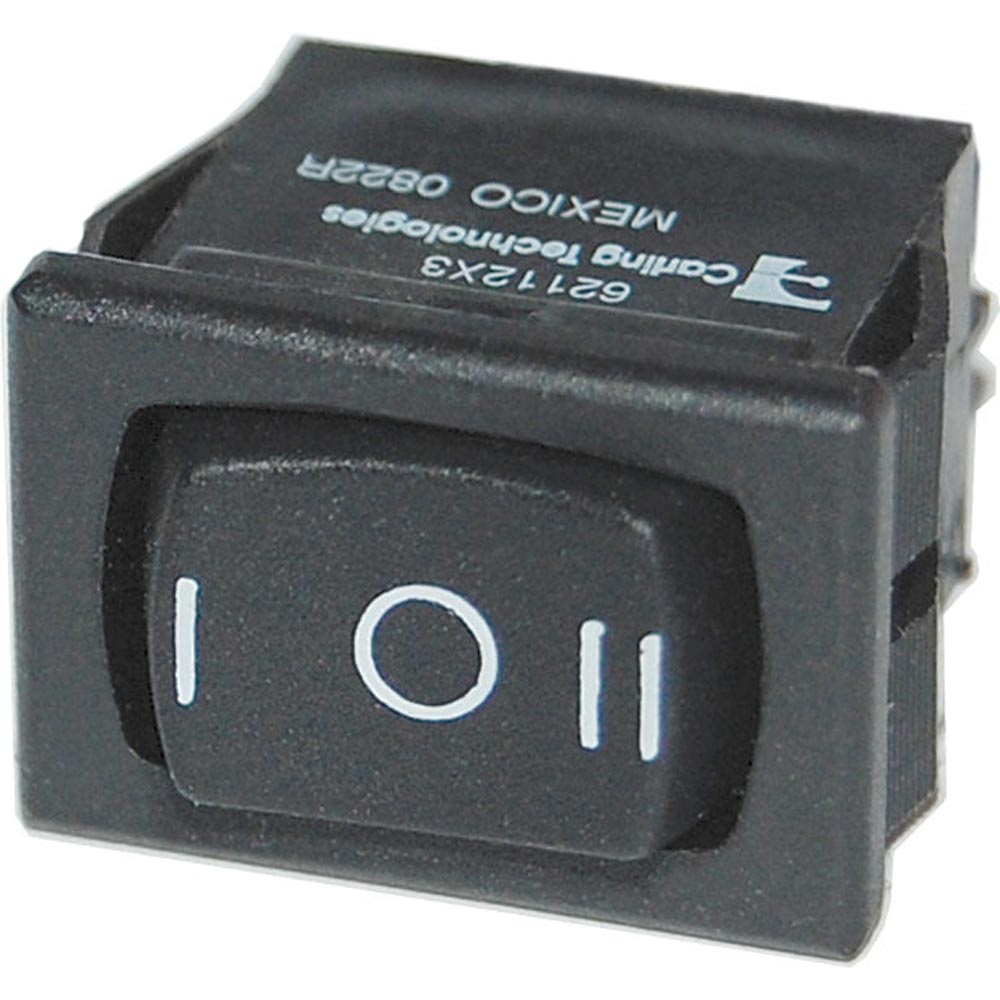

Blue Sea 7482 360 Panel - Rocker Switch SPDT - ON-OFF-ON

SKU: blu-7482  |  Manuf. Code: 7482
$6.48 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

360 Panel - Rocker Switch SPDT - ON-OFF-ON

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

  • Action*: ON-OFF-ON
  • Pole/Throw**: SPDT
  • Maximum Amperage***:8A @ 125V AC / 10A @ 12V DC / 8A @ 24V DC / 8A @ 250V AC
  • Terminal Type: Quick Connect Tab
  • Terminal Size: 0.187" (4.75mm)
  • Weight:0.08lb (0.04kg)


*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Mfr. Part # 7482

FEATURES

  • Action*: ON-OFF-ON
  • Pole/Throw**: SPDT
  • Maximum Amperage***: 8A @ 125V AC / 10A @ 12V DC / 8A @ 24V DC / 8A @ 250V AC
  • Terminal Type: Quick Connect Tab
  • Terminal Size: 0.187" (4.75mm)
  • Weight: 0.08lb (0.04kg)

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number7482
Throw/PoleSPDT
ColorBlack
ActionON-OFF-ON
Pole/Throw**SPDT
Maximum Amperage***8A @ 125V AC / 10A @ 12V DC / 8A @ 24V DC / 8A @ 250V AC
Terminal TypeQuick Connect Tab
Terminal Size0.187" (4.75mm)
Weight0.08lb (0.04kg)
For use in 360 panels in the following modulesGauge, DC Push Button + Switch, and DC Battery Management
Supplier technical detailMaximum Amperage***:8A @ 125V AC / 10A @ 12V DC / 8A @ 24V DC / 8A @ 250V AC
Supplier technical detailTerminal Size: 0.187" (4.75mm)
Product-name configurationRocker Switch SPDT
Product-name configurationON-OFF-ON
