DESCRIPTION

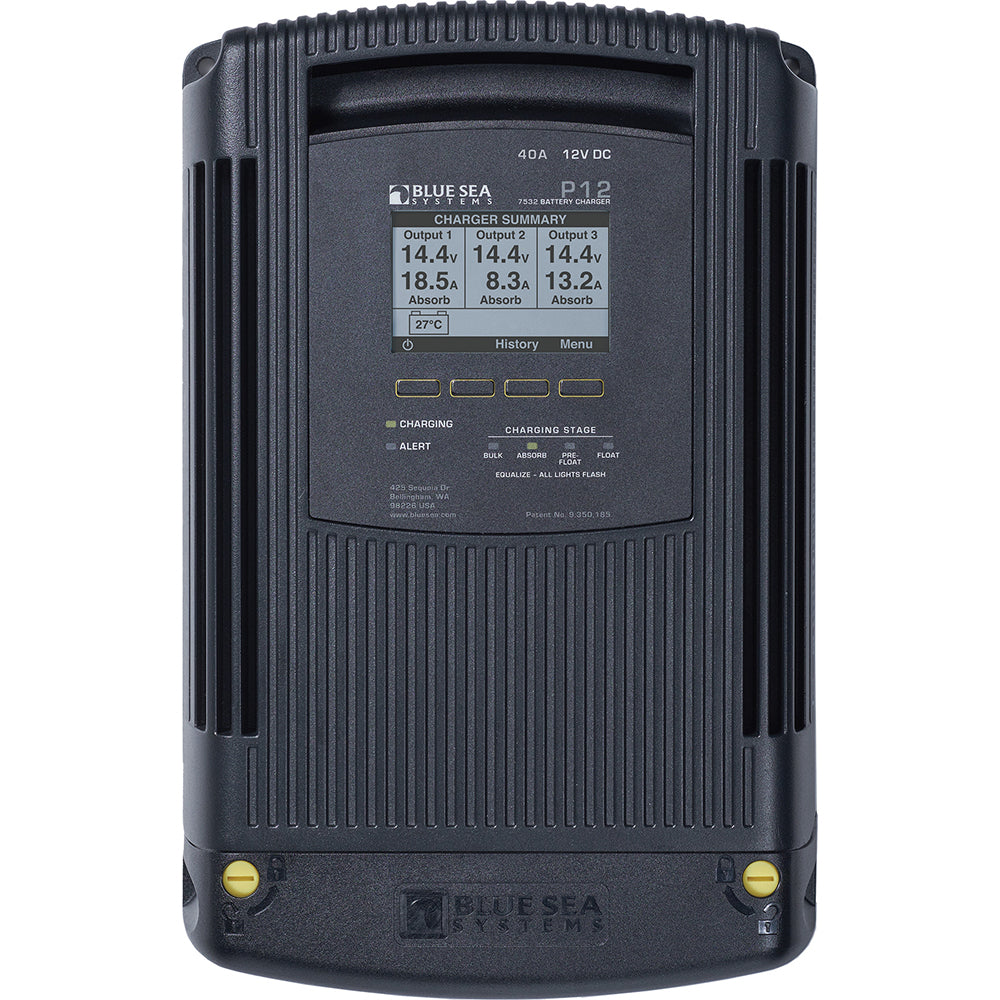

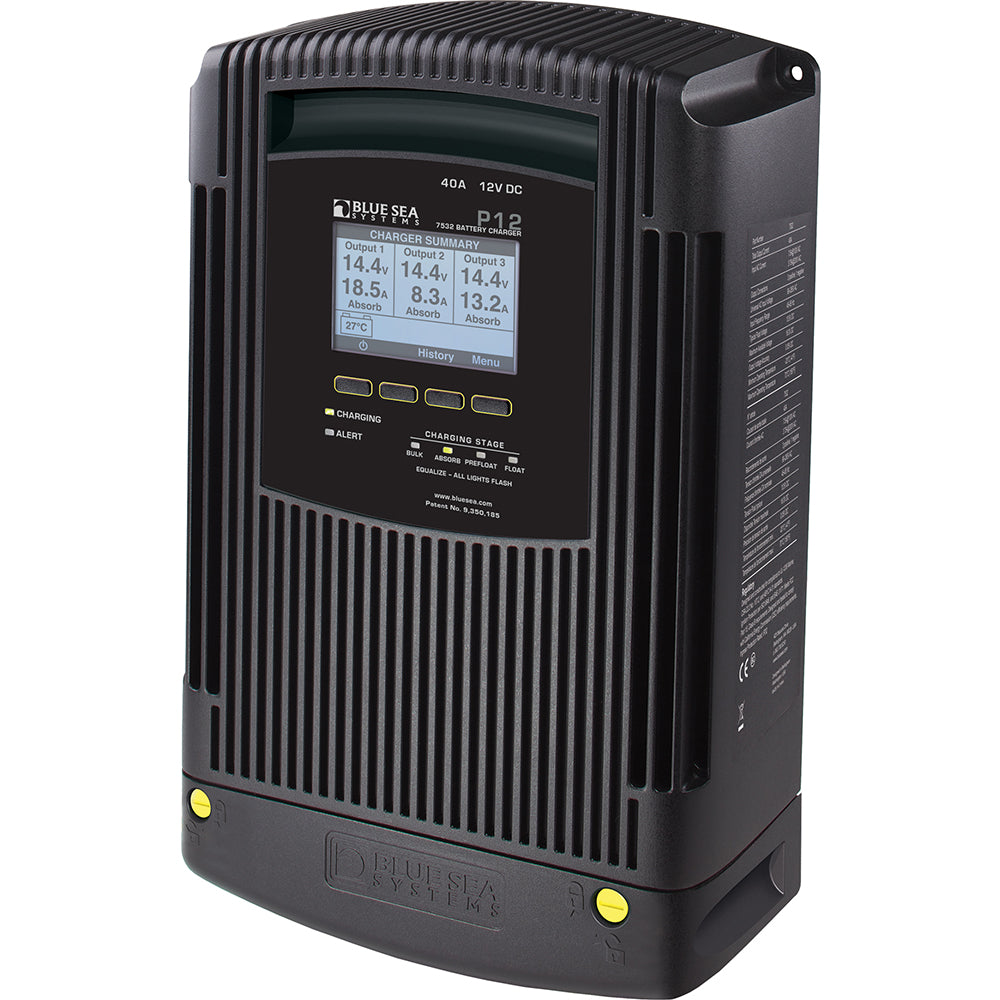

P12 Gen2 Battery Charger - 40A - 3-Bank

Features:

  • Four stage, three output, dry mount design, for use in harsh environments.
  • Rugged, finned aluminum case
  • PreFloat™ stage prevents over charging
  • Power factor corrected for efficient use of AC
  • Intuitive diagnostic screens
  • User defined charge profiles and customizable settings
  • Provides charging for up to three battery banks
  • Large, bright display
  • Multi-language: English, French, German, Italian, Spanish
  • Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
  • Battery Temperature Compensation - adjusts charge voltage based on battery temperature
  • AC over and under voltage shut down and automatic restart
  • Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
  • DC over voltage and reverse polarity protection
  • Surge and short circuit protection

Specifications:

  • Total Output Current: 40A
  • Input AC Current: 7.5A @ 100V AC / 3.75A @ 200V AC
  • Maximum Output Voltage: 16V DC
  • Nominal Voltage: 12V DC
  • Ignition Protected: Yes
  • Number of Outputs: 1 negative / 3 positive
  • Universal AC Input Voltage: 90-265V AC
  • AC Input Frequency: 45-65Hz
  • Output Voltage Accuracy: 0.05V
  • Typical Float Voltage:13.5V DC
  • Minimum Operating Temperature: -20° C
  • Maximum Operating Temperature: 70° C
  • Minimum Storage Temperature: -30° C
  • Maximum Storage Temperature: 80° C
  • Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
  • Recommended for Battery Bank Sizes: 440Ah Maximum Example: 4 x Group 31 / 60Ah Minimum Example: 2 x Group 31
  • Warranty: 5 Year
  • Height: 13.03" (330.96 mm)
  • Width: 8.46" (214.88 mm)
  • Depth: 3.66" (92.96 mm)
  • Weight: 13.00lb (5.9 kg)

Our Part # BLU-7532 | Mfr. Part # 7532

FEATURES

  • Four stage, three output, dry mount design, for use in harsh environments.
  • Rugged, finned aluminum case
  • PreFloat™ stage prevents over charging
  • Power factor corrected for efficient use of AC
  • Intuitive diagnostic screens
  • User defined charge profiles and customizable settings
  • Provides charging for up to three battery banks
  • Large, bright display
  • Multi-language: English, French, German, Italian, Spanish
  • Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
  • Battery Temperature Compensation - adjusts charge voltage based on battery temperature
  • AC over and under voltage shut down and automatic restart
  • Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
  • DC over voltage and reverse polarity protection
  • Surge and short circuit protection

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number7532
Charging Banks3
Charger Output - Amps40a
Charger Output Voltage12v
PortableNo
Charger Input - Voltage120/240v
Multi-languageEnglish, French, German, Italian, Spanish
Total Output Current40A
Input AC Current7.5A @ 100V AC / 3.75A @ 200V AC
Maximum Output Voltage16V DC
Nominal Voltage12V DC
Ignition ProtectedYes
Number of Outputs1 negative / 3 positive
Universal AC Input Voltage90-265V AC
AC Input Frequency45-65Hz
Output Voltage Accuracy0.05V
Typical Float Voltage13.5V DC
Minimum Operating Temperature-20° C
Maximum Operating Temperature70° C
Minimum Storage Temperature-30° C
Maximum Storage Temperature80° C
Battery TypesAGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
Recommended for Battery Bank Sizes440Ah Maximum Example: 4 x Group 31 / 60Ah Minimum Example: 2 x Group 31
Warranty5 Year
Height13.03" (330.96 mm)
Width8.46" (214.88 mm)
Depth3.66" (92.96 mm)
Weight13.00lb (5.9 kg)
Supplier technical detailP12 Gen2 Battery Charger - 40A - 3-Bank
Supplier technical detailRugged, finned aluminum case
Supplier technical detailUniversal AC Input Voltage: 90-265V AC
Product-name configuration40A
Product-name configuration3-Bank
