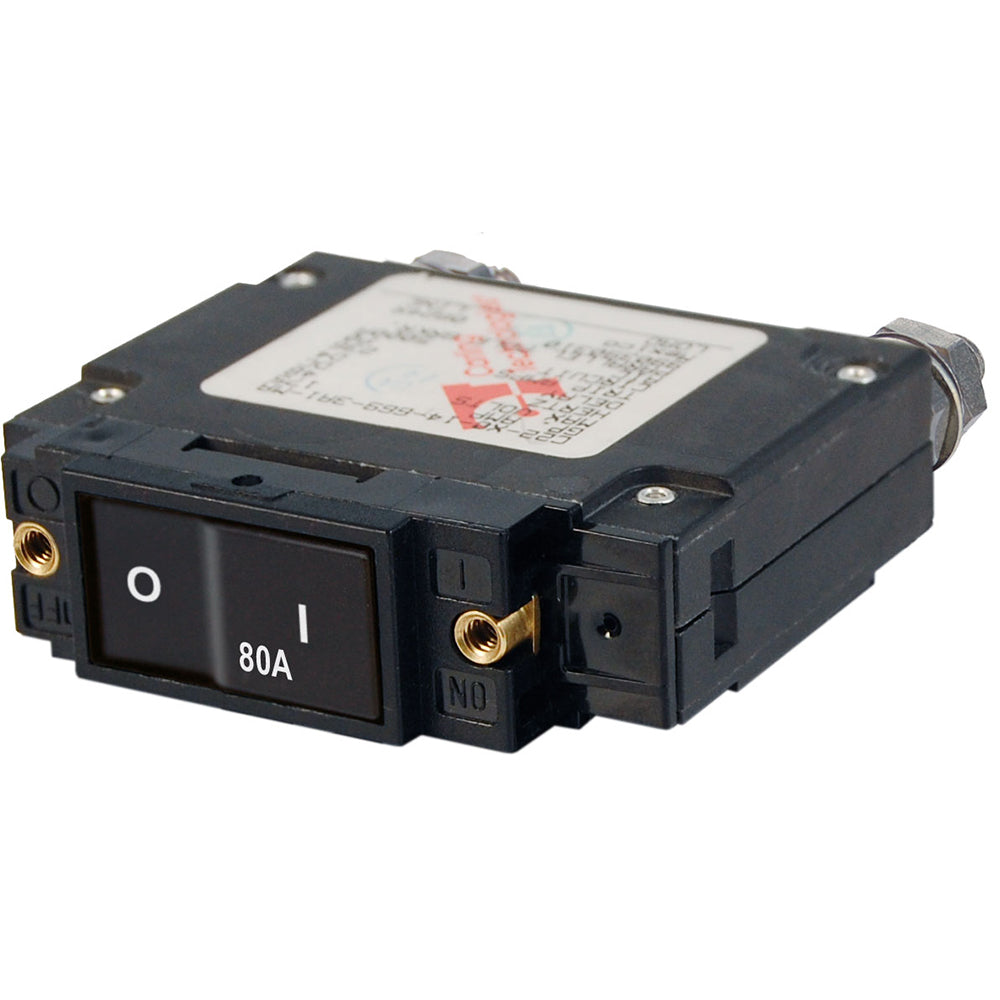

Blue Sea 7548 C-Series Flat Rocker Circuit Breaker - Single Pole - 80A

SKU: blu-7548  |  Manuf. Code: 7548
$67.16 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

C-Series Flat Rocker Circuit Breaker - Single Pole - 80A

Features:

  • Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
  • Color actuator indicates "OFF" position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free" - cannot be held closed after trip
  • Ignition protectedsafe for installation aboard gasoline powered boats


Specifications:
  • Amperage: 80A AC / 80A DC
  • Actuator Style: Flat Rocker
  • Poles: 1
  • Maximum Voltage: 240V AC / 48V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque: 35 in-lb (3.95 Nm)
  • Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Switching Cycles: 10000
  • Terminal Stud: 1/4-20 Tin-Plated Brass
  • Weight: 0.38lb (0.17 kg)

Our Part # BLU-7548 | Mfr. Part # 7548

FEATURES

  • Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
  • Color actuator indicates "OFF" position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free" - cannot be held closed after trip
  • Ignition protectedsafe for installation aboard gasoline powered boats

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number7548
Amperage80a
Amperage80A AC / 80A DC
Actuator StyleFlat Rocker
Poles1
Maximum Voltage240V AC / 48V DC
Circuit Breaker TypeMagnetic Hydraulic - trip free
Terminal Stud Torque35 in-lb (3.95 Nm)
Interrupt Capacity3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
Minimum Operating Temperature-40° C
Maximum Operating Temperature85° C
Mounting Screw#6-32 Stainless Steel
Mounting Screw Torque6 in-lb (0.68 Nm)
Switching Cycles10000
Terminal Stud1/4-20 Tin-Plated Brass
Weight0.38lb (0.17 kg)
Supplier technical detailC-Series Flat Rocker Circuit Breaker - Single Pole - 80A
Product-name configurationSingle Pole
Product-name configuration80A
