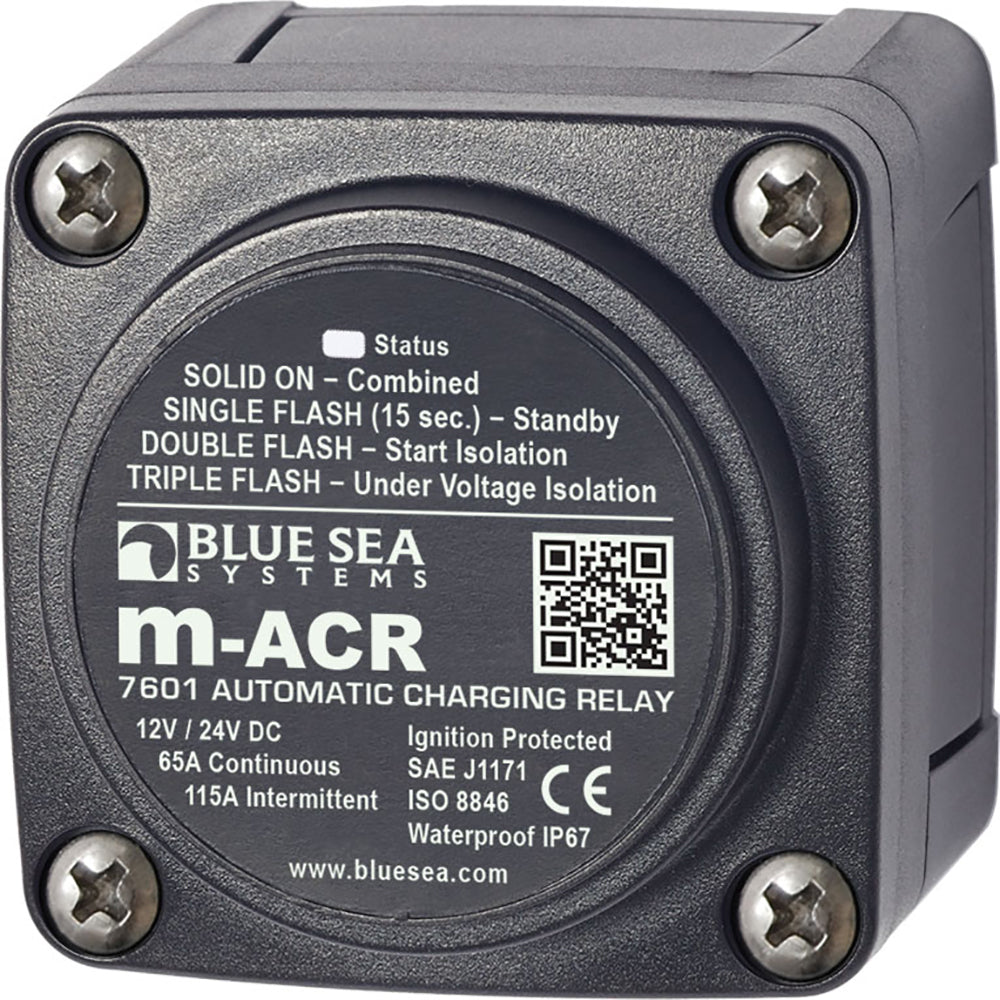

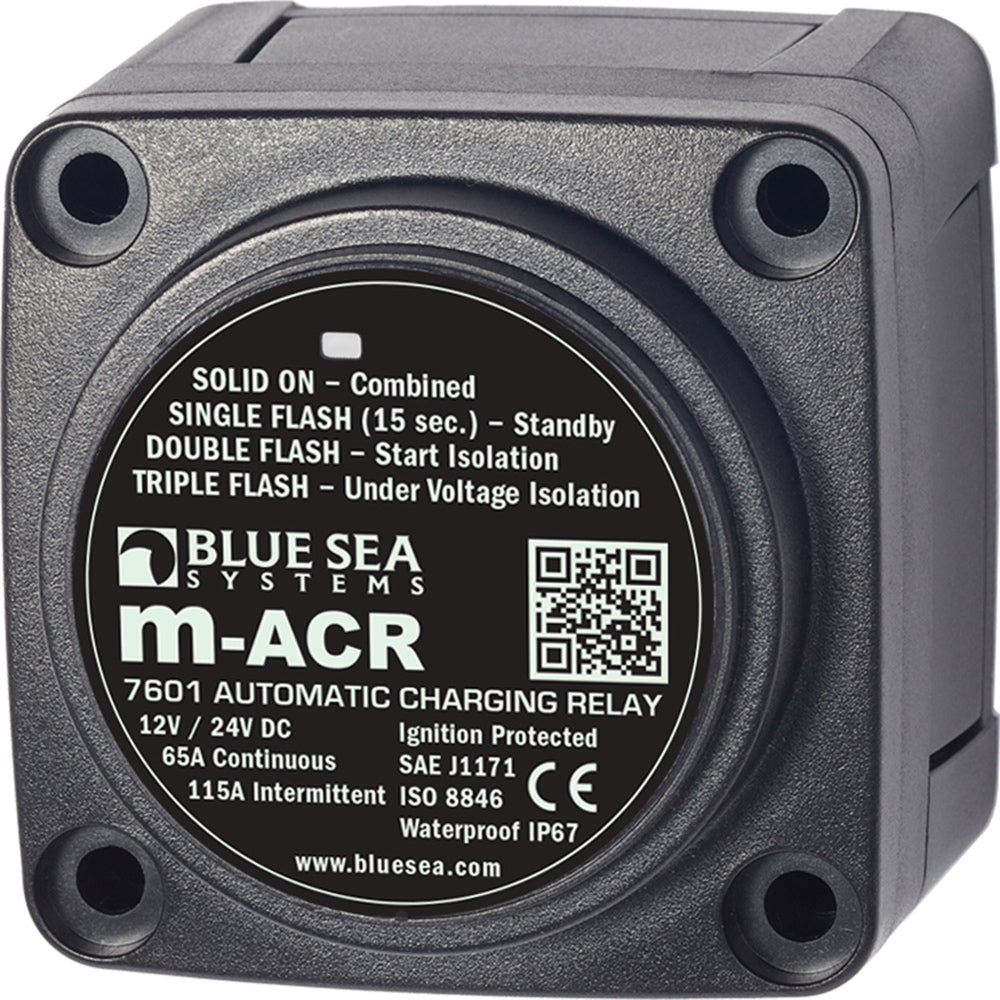

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

SKU: blu-7601  |  Manuf. Code: 7601
$111.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

7601 DC Mini ACR Automatic Charging Relay - 65 Amp

Features:

  • 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines
  • Compact case design allows surface and panel mounting
  • Senses charging on two battery banks
  • Snap-on cover insulates terminal connections
  • LED indicates ACR status
  • 1/4" x .032" male quick connect terminal for ground
  • 5/8" (16 mm) stud length to accept multiple cable terminals
  • 12V DC voltage input


Specifications:
  • Intermittent Rating: 5 min.: 115A
  • Terminal Stud Size: 1/4"-20
  • Relay Contact Position: Open (30 sec.): 12.75V DC
  • Continuous Rating: 65A
  • Maximum Torque: 75 in-lb (8.5 Nm)
  • Relay Contact Position - Open High: 16.0V DC
  • Amperage Operating Current: 175mA (Combine)
  • Relay Contact Position: Combine (30 sec.): 13.0V DC
  • Under Voltage Lockout: 9.5V DC
  • Amperage Operating Current: 15mA (Open)
  • Relay Contact Position: Combine (2 min.): 13.6V DC
  • Maximum Cable Size: 1/0 AWG
  • Relay Contact Position: Open (10 sec.): 12.35V DC

Mfr. Part # 7601

FEATURES

  • 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines
  • Compact case design allows surface and panel mounting
  • Senses charging on two battery banks
  • Snap-on cover insulates terminal connections
  • LED indicates ACR status
  • 1/4" x .032" male quick connect terminal for ground
  • 5/8" (16 mm) stud length to accept multiple cable terminals
  • 12V DC voltage input

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number7601
Continuous Amperage65a
Intermittent Rating5 min.: 115A
Terminal Stud Size1/4"-20
Relay Contact PositionOpen (30 sec.): 12.75V DC
Continuous Rating65A
Maximum Torque75 in-lb (8.5 Nm)
Relay Contact Position - Open High16.0V DC
Amperage Operating Current175mA (Combine)
Relay Contact PositionCombine (30 sec.): 13.0V DC
Under Voltage Lockout9.5V DC
Amperage Operating Current15mA (Open)
Relay Contact PositionCombine (2 min.): 13.6V DC
Maximum Cable Size1/0 AWG
Relay Contact PositionOpen (10 sec.): 12.35V DC
Supplier dimension detail1/4" x .032" male quick connect terminal for ground
Supplier technical detail1/4" x .032" male quick connect terminal for ground
Supplier technical detail5/8" (16 mm) stud length to accept multiple cable terminals
Supplier technical detail12V DC voltage input
Supplier technical detailIntermittent Rating: 5 min.: 115A
Supplier technical detailTerminal Stud Size: 1/4"-20
Supplier technical detailRelay Contact Position: Open (30 sec.): 12.75V DC
Supplier technical detailContinuous Rating: 65A
Supplier technical detailRelay Contact Position - Open High: 16.0V DC
Supplier technical detailAmperage Operating Current: 175mA (Combine)
Supplier technical detailRelay Contact Position: Combine (30 sec.): 13.0V DC
Supplier technical detailUnder Voltage Lockout: 9.5V DC
Supplier technical detailAmperage Operating Current: 15mA (Open)
Supplier technical detailRelay Contact Position: Combine (2 min.): 13.6V DC
Supplier technical detailMaximum Cable Size: 1/0 AWG
Supplier technical detailRelay Contact Position: Open (10 sec.): 12.35V DC
Product-name configuration65 Amp
