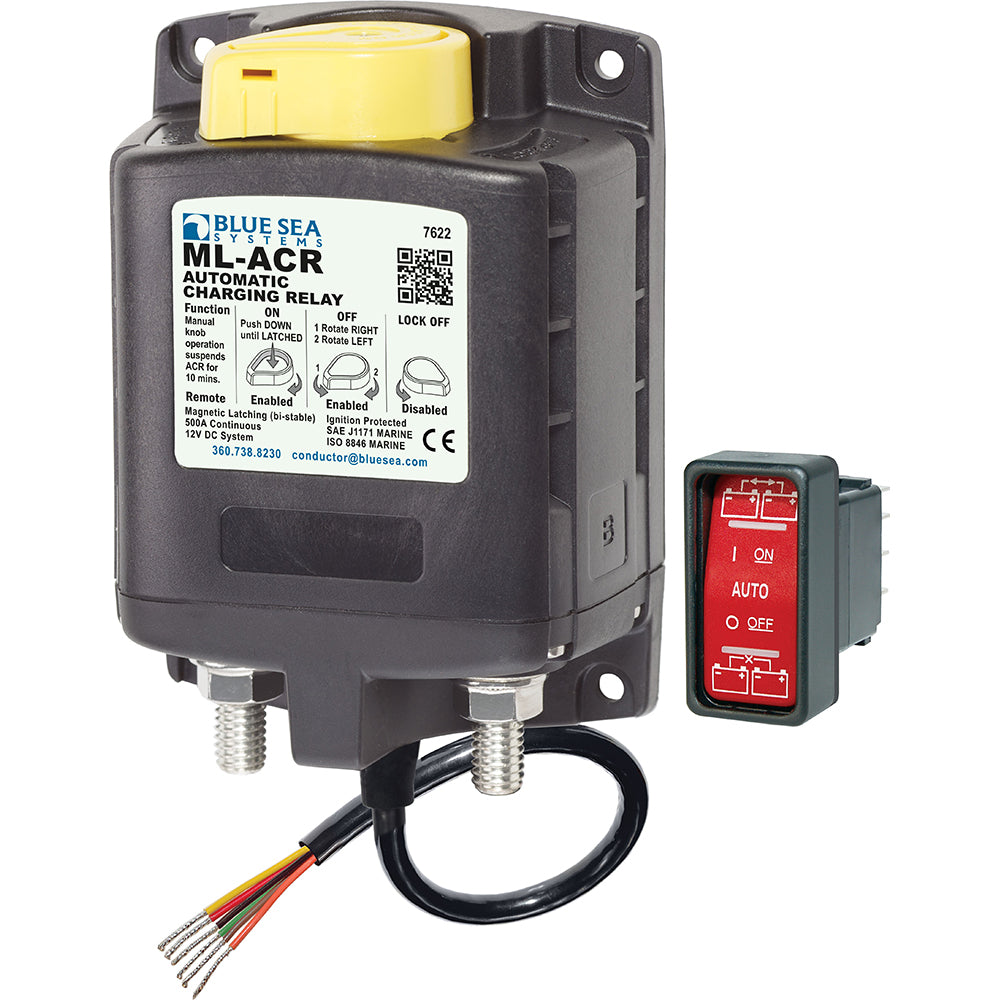

Blue Sea 7622 ML-Series Heavy Duty Automatic Charging Relay

SKU: blu-7622  |  Manuf. Code: 7622
List Price:  $404.99 USD
$346.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

7622

Manual Control: Yes
Coil Voltage: 12v

Features:

  • Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
  • Includes ML-Series Remote Control Contura Switch PN 2146
  • 500 Ampere continuous rating
  • Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
  • Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Senses charging on two battery banks
  • Supports high-output alternators up to 500 Amps
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit protection
  • Silver alloy contacts provide high reliability for switching live loads

Mfr. Part # 7622

FEATURES

  • Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
  • Includes ML-Series Remote Control Contura Switch PN 2146
  • 500 Ampere continuous rating
  • Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
  • Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Senses charging on two battery banks
  • Supports high-output alternators up to 500 Amps
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit protection
  • Silver alloy contacts provide high reliability for switching live loads

TECHNICAL INFORMATION

SpecificationValue
ManufacturerBlue Sea Systems
Manufacturer part number7622
Manual ControlYes
Coil Voltage12v
Supplier technical detailCoil Voltage: 12v
Supplier application or construction detailIncludes ML-Series Remote Control Contura Switch PN 2146
Supplier technical detailIncludes ML-Series Remote Control Contura Switch PN 2146
Supplier technical detailMagnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
Supplier technical detail3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
Supplier technical detail7/8" (22mm) stud length accepts multiple cable terminals
