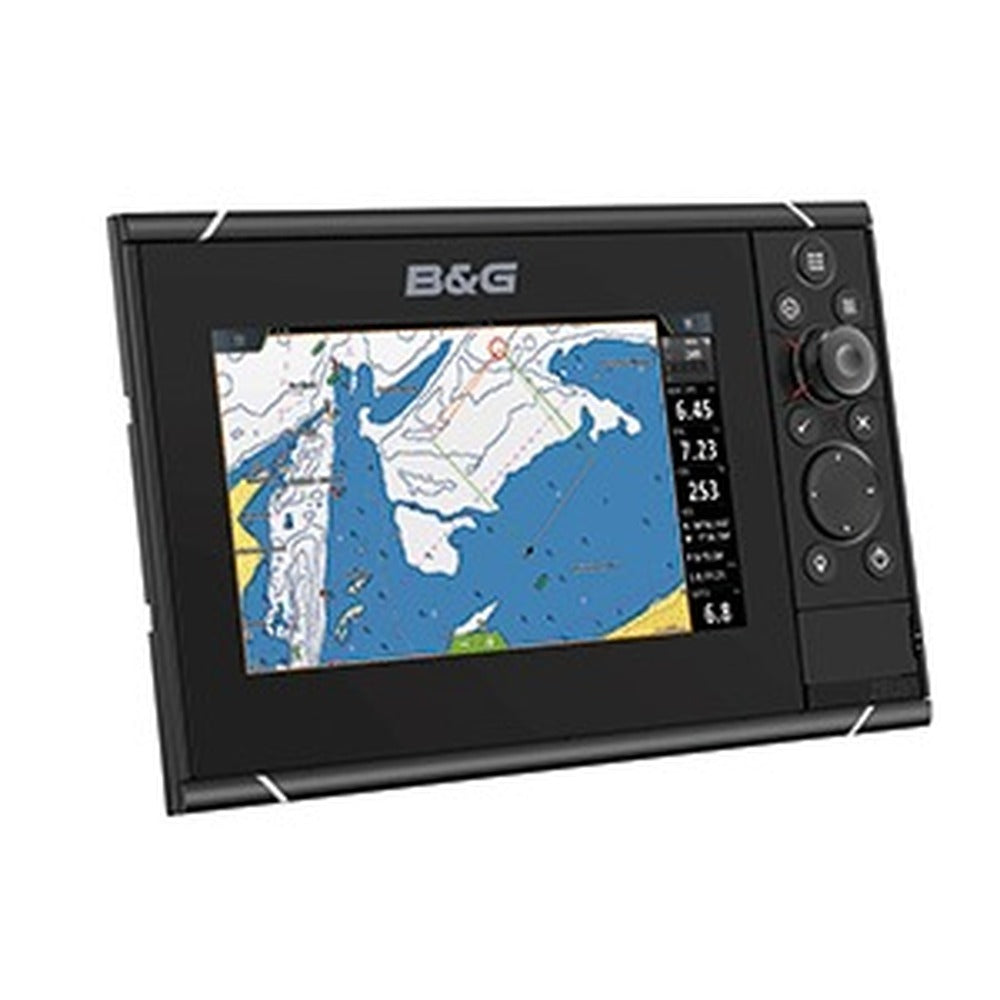

B&G Zeus3 7" MFD Display w/Insight Charts
DESCRIPTION
DESCRIPTION
The Zeus³ 7 complements the larger screen sizes of the Zeus3S range with a smaller display for yachts with limited installation space. This ultra-bright, wide-angle display combines an all-weather 7-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.
Zeus³ Series
Enjoy full control whatever the conditions with Zeus³. Ideal for the serious cruising or racing sailor, Zeus3 boasts a stunning touschscreen and keypad, high-speed processor and B&G’s award-winning sailing features. Let Zeus3 guide you to your destination.
*For 9, 12 and 16 inch models, see our new Zeus3S range.
Exceptional visibility
The SolarMAX HD screen ensures perfect visibility in all conditions. Zeus3’s screen has been tested to the limit in everything from tropical sunlight to the depths of the southern ocean and polar winters. You can see it through polarised sunglasses, and the responsive touchscreen works even in flying spray and rough sea.
Integrated keypad for complete control
Zeus3 has an integrated rotary dial and keypad that can take over control of all functions in extreme conditions, along with customisable keys for instant access to frequently-used functions.
Super fast processor for immediate response
Enjoy exceptional situational awareness thanks to Zeus3 ‘s high-performance processor. There’s plenty of processing power to run charts, radar, ForwardScan and autopilot controls simultaneously without compromising on performance – giving you all the tools you need to enjoy the sailing, safe in the knowledge that you can monitor your surroundings.
Perfect for twin helms
Opt for a dual-station installation and Zeus3 will ensure you’ve got the data you need, where you need it. Share your charts, radar and sonar between multiple Zeus3 displays at the helm, nav station and elsewhere on board over a lag-free Ethernet connection, for simple installation and lightning fast networking between displays.
Dedicated Sailing Features for Cruising and Racing
Navigate with confidence with Zeus3’s award winning sailing features:
SailSteer
Laylines
SailingTime
RacePanel
High accuracy GPS
Know exactly where your boat is at all times with an inbuilt 10Hz GPS receiver that plots your position with exceptional accuracy.
Autopilot control
Zeus3 sits at the heart of your boat – and you can take command of commissioning and controlling your B&G autopilot from your Zeus3 touchscreen. Tack, gybe, sail to wind or compass heading and take advantage of the advanced sailing algorithms that make B&G Pilots the best in their class.
Mirror the screen on your phone
Built in WiFi allows you to mirror and control the screen from anywhere on board on a Smartphone or Tablet using the Link App, for a cost-effective dual-station solution. Back up your settings and waypoints, or connect to a Wireless hotspot or marina WiFi to download weather forecasts and download software updates straight to your device. Connect your phone via Bluetooth to read and respond to text messages from the chartplotter’s display.
Seamless integration with your instruments
Enjoy a fully connected sailing experience and control and monitor your H5000 instrument system on board from the display. Zeus3 can also take full control of onboard systems using Naviop and CZone, allowing fingertip command and monitoring of lights and systems on board.
A range of mounting options
Zeus3 chartplotters are optimised for sleek flush mounting, standing only 8mm proud of the bulkhead for a low-profile ‘glass helm’ look. Alternatively, mount it using the supplied bracket on horizontal, vertical or overhead surfaces.
Mapping options
Zeus3 chartplotters support a wide range of leading cartography, from C-MAP, Navionics and NV Digital. Take advantage of advanced mapping features including autorouting, dynamic tides and currents, aerial photos and detailed harbour charts to ensure you know exactly what lies beneath your keel at all times.
Easy to expand your network
Just add power to enjoy Zeus3 as a versatile standalone chartplotter with first-rate navigation functions. For the best experience and to take advantage of our award-winning sailing features, network your chartplotter with instruments and sensors using industry standard NMEA 2000 connectivity.
ForwardScan
Radar
SonicHub
What's in the box?
- Bracket Knobs for NSS evo2/Zeus2/HDS gen2T
- Zeus³ 7 Sun Cover
- Gimbal Bracket, NSS7 evo3, GO9, Cruise 9, Vulcan 9, Zeus³ 7
- NSS7 EVO3 & ZEUS3 - 7 DASH MOUNT KIT
- NSS7 EVO3 & ZEUS3 - 7 EDGE BEZELS
Our Part # bng-000-13241-001 | Mfr. Part # 000-13241-001
FEATURES
FEATURES
- A super-bright 7″ SolarMAX™ HD display with ultra-wide viewing angles
- Dedicated sailing features such as SailSteer, Laylines and RacePanel
- High-performance processor for responsive operation and quick chart redraw
- All-weather touchscreen plus full rotary and keypad controls
- Wi-Fi enabled for easy access to charts, weather, updates, support, and screen mirroring
- Built-in ForwardScan™ sonar support for safer passage through shallow waters
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Value |
|---|---|
| Display | |
| Backlight Color | White |
| Display Resolution | 600 x 1024 |
| Display Size | 7 inches |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Connectivity | |
| Bluetooth | Internal |
| Ethernet Ports | 1 x 5 pin yellow connector x 10/100 Mbit |
| Connectivity Wi Fi | Internal |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| PC Connectivity | No |
| SD Card Storage | 2 Micro SD slots, max. 32GB each. Larger if formatted to NTFS |
| Video | 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). |
| Autopilot | |
| Manouevres Turn Patterns | U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
| Steering Modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
| Approvals | |
| Approvals Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2 |
| Electrical | |
| Power Consumption max | 20 W |
| Recommended Fuse Rating | 3A |
| Supply Voltage | 10 - 31.2 V DC |
| Environment | |
| Operating Temperature Range | -15°C to +55°C (5° F to 131° F) |
| Storage Temperature Range | -20°C to +60°C (4°F to 140°F) |
| Waterproofrating | IPX6 and 7 |
| GPS | |
| Correction | WASS, MSAS, EGNOS, GLONASS |
| GPS Receiver Channels | 34 Channels |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| Time to First Fix | Cold start 50 sec, Satellite Reacquisition 5 sec |
| Update rate | 10 Hz |
| MFD | |
| AIS | Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors) |
| Autopilot | Full auto pilot control and commissioning |
| Cartography included | C-MAP |
| Digital Switching | C-Zone, Naviop |
| GPS | Internal |
| Internal Storage | 16 GB |
| Multimedia | via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) |
| Sonar Compatibility | Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 kHz, HDI. Sonar port 2: Single channel CHIRP, 50/200 kHz, Active Imaging, TotalScan, LSS HD, ForwardScan. Compatible with: S5100, SonarHub, BSM-3, BSM-2, network echo sounders |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Weather | SiriusXM via WM-4 / WM-3 (USA only), GRIB |
| Physical | |
| Dimensions W x H x D | 239 x 150 x 90 mm (9.4 x 5.9 x 3.5")With bracket: 263 x 161 x 93 (10.35 x 6.31 x 3.66) |
| Mounting Type | Bracket (Supplied) or panel mount |
| Weight | 1.1 kg (2.42 lbs.) |
| Other | |
| Interface | Full touch screen (multi-touch ) and full keypad control, ZC2 remote controllers |
| Warranty Period | 2 Years |
