DESCRIPTION

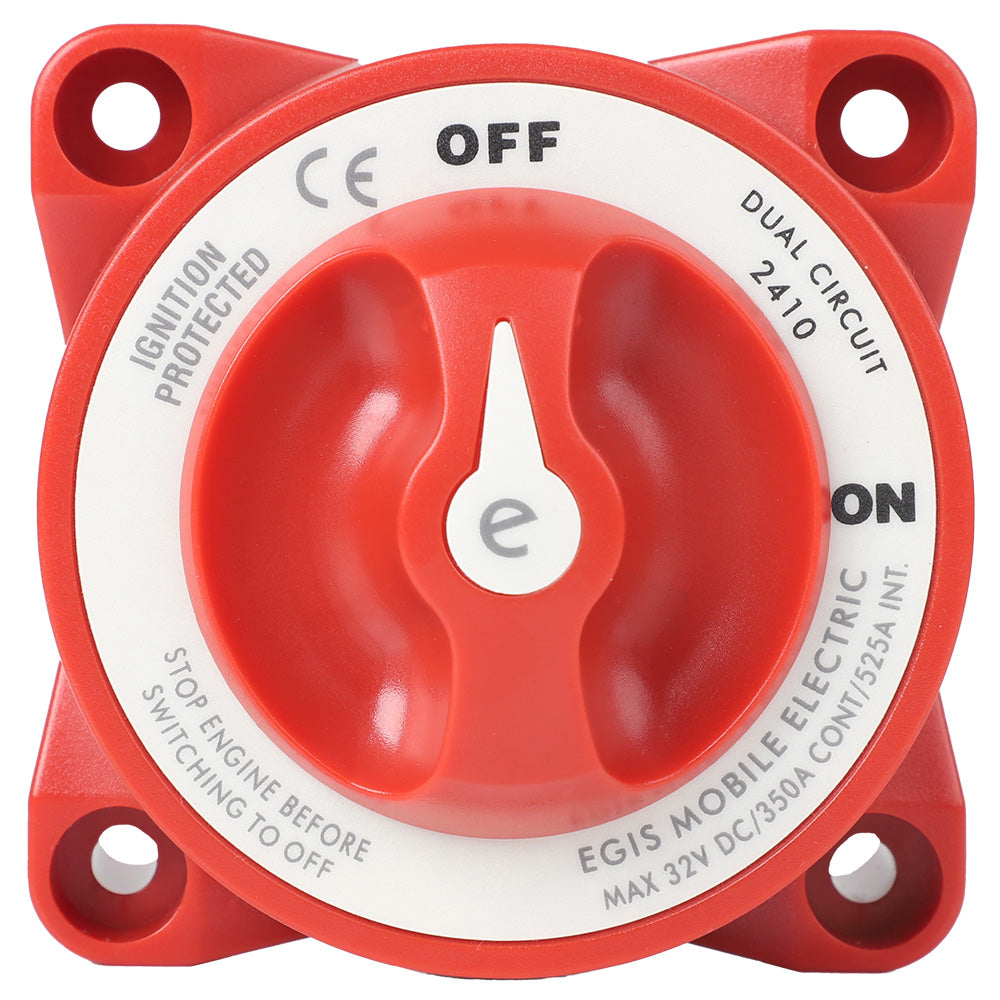

E-Series 350A Dual Circuit Battery Switch Off/On

Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

  • Maximum Voltage (Single Circuit): 48 Vdc
  • Maximum Voltage (Selector / Dual Circuit): 32 Vdc
  • Stud Size And Thread: 3/8”-16
  • Terminal Stud Torque: 140 in-lbs (15.8 N-m)
  • Ring Terminal Size Acceptance: 3/8” (M10)
  • Mounting Holes: #1/4" (M6) Screw
  • Live Switching Rating: 25 Amps
  • Ignition Protection Rating: SAE J1171 / ISO 8846
  • Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
  • Cable Size to Meet Rating: 4/0 AWG
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Our Part # EGI-2410 | Mfr. Part # 2410

FEATURES

  • Maximum Voltage (Single Circuit): 48 Vdc
  • Maximum Voltage (Selector / Dual Circuit): 32 Vdc
  • Stud Size And Thread: 3/8”-16
  • Terminal Stud Torque: 140 in-lbs (15.8 N-m)
  • Ring Terminal Size Acceptance: 3/8” (M10)
  • Mounting Holes: #1/4" (M6) Screw
  • Live Switching Rating: 25 Amps

TECHNICAL INFORMATION

SpecificationValue
ManufacturerEgis Mobile Electric
Manufacturer part number2410
Maximum Voltage (Single Circuit)48 Vdc
Maximum Voltage (Selector / Dual Circuit)32 Vdc
Stud Size And Thread3/8”-16
Terminal Stud Torque140 in-lbs (15.8 N-m)
Ring Terminal Size Acceptance3/8” (M10)
Mounting Holes#1/4" (M6) Screw
Live Switching Rating25 Amps
Ignition Protection RatingSAE J1171 / ISO 8846
Bulkhead / Panel - Mounting Hole Size3-5/8" Diameter
Cable Size to Meet Rating4/0 AWG
Supplier technical detailE-Series 350A Dual Circuit Battery Switch Off/On
Supplier material detailHarsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Supplier dimension detailBulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
Supplier technical detailCable Size to Meet Rating: 4/0 AWG
