Egis RT Screw Terminal 12 Circuit Dual Lever Bus Bar

SKU: egi-8030  |  Manuf. Code: 8030
$18.50 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

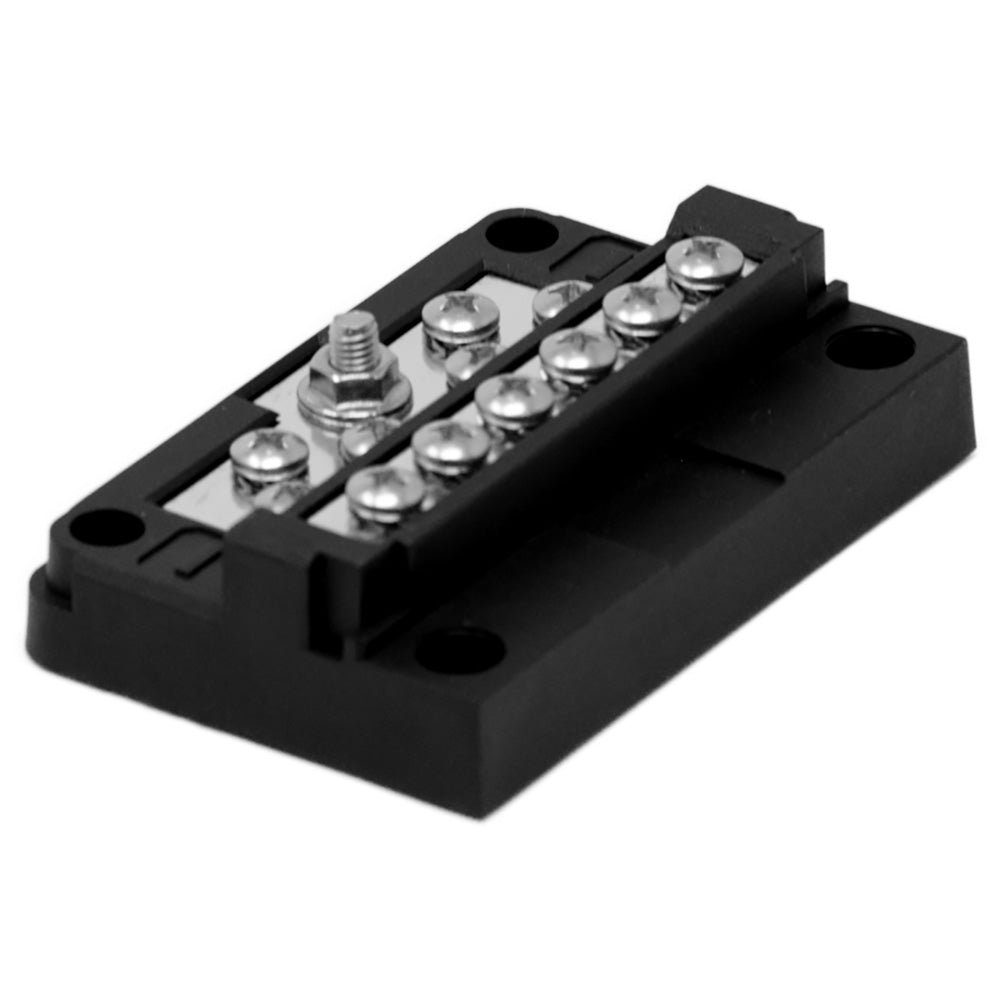

RT Screw Terminal 12 Circuit Dual Lever Bus Bar

This Egis bus bar seamlessly integrates with RT fuse blocks, can be used as a standalone ground bus, or can be assembled with an existing RT Series fuse block line. Also, this multi-level low-amp has terminal screws for improved mounting.

Applications:

  • The 12-circuit block ensures ground connection reliability with this compact and well-constructed ground bus block.
  • RT series connection compatibility enables a smaller installation footprint and convenient negative terminal access when installed with a fuse block application.

Features:

  • Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
  • Seamlessly integrates with RT fuse blocks - use as a standalone ground bus or assembled with existing RT series fuse block lines

Specifications:

  • Maximum Current (Entire Block) Amps: 100
  • Maximum Current (Per Circuit) Amps: 30
  • Max Output Wire Size: #10 AWG
  • Voltage Range VDC: 0-36
  • Number of Fuse Positions: 12
  • Output Terminal Connection Ring Terminal Size: M4 / (#8)

Focal Features:

Robust Materials For Harsh Environments

All attachment hardware is constructed of stainless steel with self-locking mechanisms for long-lasting installations. A plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering-grade composite insulators support high-temperature application exposure, such as in engine compartments.

Seamlessly Integrates With RT Fuse Blocks

It can be installed individually on its own or assembled to the end of a 6, 12, or 18-position RT Series fuse block for a more compact overall footprint.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Mfr. Part # 8030

FEATURES

  • The 12-circuit block ensures ground connection reliability with this compact and well-constructed ground bus block.
  • RT series connection compatibility enables a smaller installation footprint and convenient negative terminal access when installed with a fuse block application.
  • Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
  • Seamlessly integrates with RT fuse blocks - use as a standalone ground bus or assembled with existing RT series fuse block lines
  • Maximum Current (Entire Block) Amps: 100
  • Maximum Current (Per Circuit) Amps: 30
  • Max Output Wire Size: #10 AWG

TECHNICAL INFORMATION

SpecificationValue
ManufacturerEgis Mobile Electric
Manufacturer part number8030
Maximum Current (Entire Block) Amps100
Maximum Current (Per Circuit) Amps30
Max Output Wire Size#10 AWG
Voltage Range VDC0-36
Number of Fuse Positions12
Output Terminal Connection Ring Terminal SizeM4 / (#8)
Supplier application or construction detailThe 12-circuit block ensures ground connection reliability with this compact and well-constructed ground bus block.
Supplier technical detailBullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
Supplier technical detailMax Output Wire Size: #10 AWG
Supplier application or construction detailAll attachment hardware is constructed of stainless steel with self-locking mechanisms for long-lasting installations. A plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering-grade composite insulators support high-temperature application exposure, such as in engine compartments.
Supplier technical detailAll attachment hardware is constructed of stainless steel with self-locking mechanisms for long-lasting installations.
ApplicationsThe 12-circuit block ensures ground connection reliability with this compact and well-constructed ground bus block. RT series connection compatibility enables a smaller installation footprint and convenient negative terminal access when installed with a fuse block application.
