Egis XD Flex L Triple (Relay/ACR/Relay) w/Knobs - DTM

SKU: egi-8630-1535  |  Manuf. Code: 8630-1535
$370.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

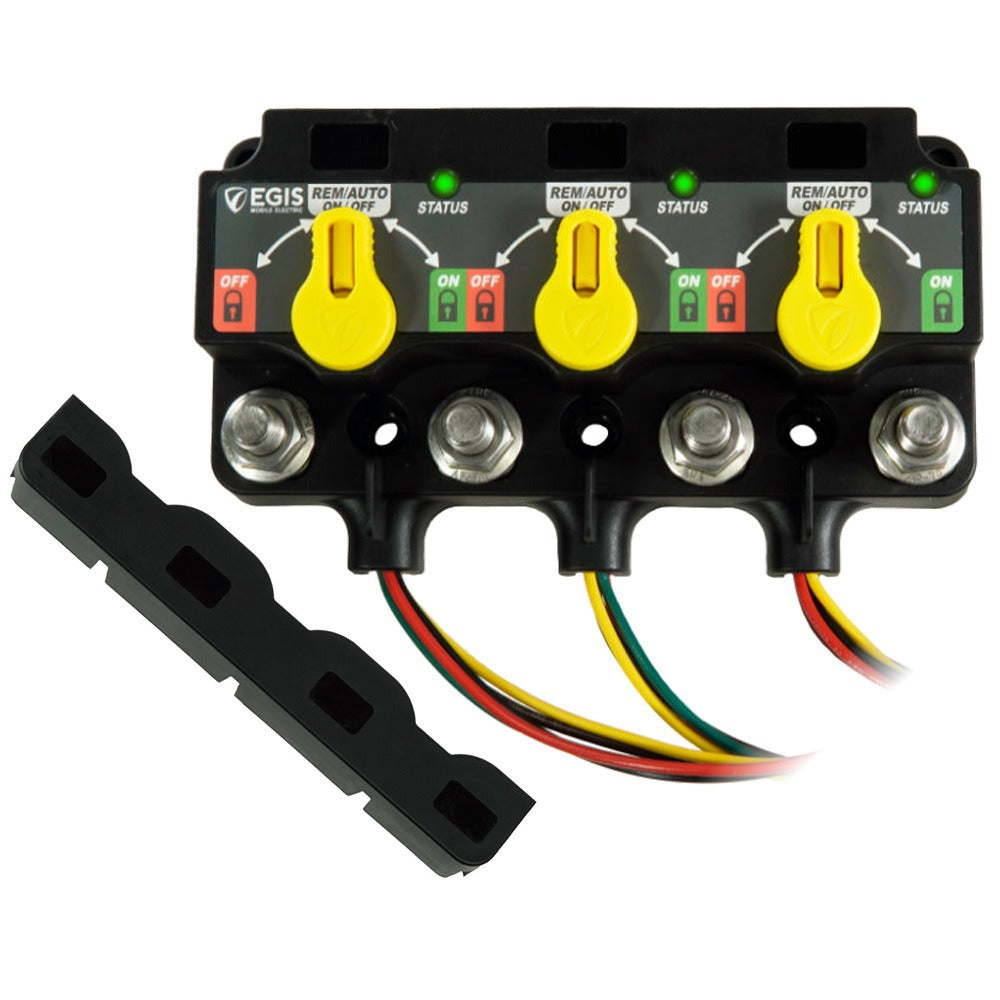

XD Flex L Triple (Relay/ACR/Relay) with Knobs - DTM

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

  • Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined.
  • Simple & Robust Installation: Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available.
  • Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense.
  • Diagnostic Feedback:  Via optional external LEDs control lines and on-board LEDs for each relay
  • Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.
  • Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits.
  • Meets Stringent OEM Standards for electrical transient self-protection
  • 4 Year Industry-Leading Warranty
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Mfr. Part # 8630-1535

FEATURES

  • Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined.
  • Simple & Robust Installation: Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available.
  • Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense.
  • Diagnostic Feedback:  Via optional external LEDs control lines and on-board LEDs for each relay
  • Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.
  • Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits.
  • Meets Stringent OEM Standards for electrical transient self-protection
  • 4 Year Industry-Leading Warranty

TECHNICAL INFORMATION

SpecificationValue
ManufacturerEgis Mobile Electric
Manufacturer part number8630-1535
TypeElectric
Ultra-Low Power DrawLowest off-state current draw in the industry (1.3mA) combined.
Simple & Robust InstallationSealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available.
Flexible Application OptionsInstall as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense.
Diagnostic FeedbackVia optional external LEDs control lines and on-board LEDs for each relay
Bulletproof ConstructionSealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.
Supplier application or construction detailDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings
Supplier technical detailUltra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined.
Supplier technical detailBulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle.
Product-name configurationDTM
