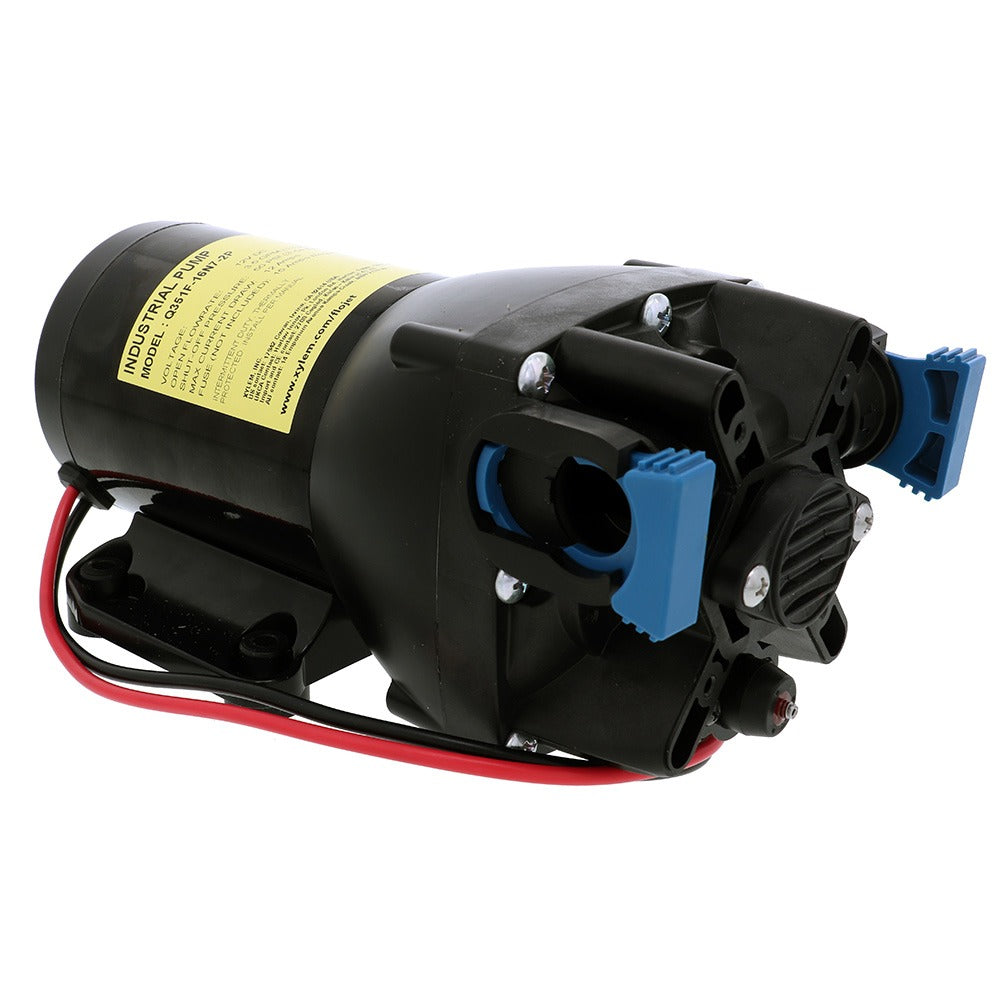

Flojet VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI

SKU: flj-q351f-16n7-2p  |  Manuf. Code: Q351F-16N7-2P
$296.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI

Flojet VersiJet Series industrial diaphragm pump. It is engineered for durability and longevity. This Flojet pump is perfect for applications such as liquid transfer, spraying, cooling, circulation, filtration, dispensing, and more! Glass-filled polypropylene hose is resistant to corrosion. Viton seals and a Santoprene diaphragm provide resistance to chemicals and corrosion. It has quick-connect ports and includes two 1/2" straight hose barbs.

Features:

  • Heavy-duty, coated motor
  • Long-life co-molded diaphragm
  • Efficient, quiet operation
  • Self-priming
  • Runs dry without damage
  • 4-chamber diaphragm
  • Quick-connect ports
  • TENV permanent magnet motor
  • Noise-dampening baseplate
  • Thermal motor protection (TCO)

Applications:

  • Liquid Transfer
  • Spraying
  • Cooling
  • Circulation
  • Filtration
  • Dispensing

Specifications:

  • Product Number: Q351F-16N7-2P
  • Port Fittings: 2 x 1/2" (13mm) straight hose barb
  • Open Flow Rate: 3.5 GPM open flow (13.2 LPM)
  • Pressure Switch Cut-Off: No switch
  • Max Operating Pressure: 50 PSI (3.4 BAR)
  • Max Inlet Pressure: 30 PSI (2.2 BAR)
  • Internal Bypass: Yes
  • Fluid Temperature Range: 32° F - 140° F (0° C - 60° C)
  • Self-Priming Capability: Up to 8ft (2.4m) dry prime
  • Run-Dry Capable: Yes
  • Nominal Voltage: 12 VAC
  • Voltage Range: 9 V- 13.6 V
  • Max Current Draw: 9.5 Amps @ 50 PSI (3.4 BAR)
  • Fuse Size: 15 Amps (not included)
  • Duty Cycle: Intermittent
  • Leads: 12" (305mm), 14 AWG (2.5mm^2)
  • Wire Connection: Stripped wire
  • Weight (pump only): 5.1 lbs.

Materials:

  • Upper Housing: Glass-filled polypropylene
  • Lower Housing: Cast aluminum
  • Check Valve Retainer: Polypropylene
  • Diaphragm: Santoprene
  • Check Valves: Viton
  • Switch diaphragm: Viton
  • Bypass Diaphragm: Viton
  • PH Seals: Viton
  • PH Fasteners: Stainless steel
  • Baseplate: Nylon with Rubber Feet
  • Motor Casing: Cast aluminum; coated steel

Mfr. Part # Q351F-16N7-2P

FEATURES

  • Heavy-duty, coated motor
  • Long-life co-molded diaphragm
  • Efficient, quiet operation
  • Self-priming
  • Runs dry without damage
  • 4-chamber diaphragm
  • Quick-connect ports
  • TENV permanent magnet motor
  • Noise-dampening baseplate
  • Thermal motor protection (TCO)

TECHNICAL INFORMATION

SpecificationValue
ManufacturerFlojet
Manufacturer part numberQ351F-16N7-2P
Product NumberQ351F-16N7-2P
Port Fittings2 x 1/2" (13mm) straight hose barb
Open Flow Rate3.5 GPM open flow (13.2 LPM)
Pressure Switch Cut-OffNo switch
Max Operating Pressure50 PSI (3.4 BAR)
Max Inlet Pressure30 PSI (2.2 BAR)
Internal BypassYes
Fluid Temperature Range32° F - 140° F (0° C - 60° C)
Self-Priming CapabilityUp to 8ft (2.4m) dry prime
Run-Dry CapableYes
Nominal Voltage12 VAC
Voltage Range9 V- 13.6 V
Max Current Draw9.5 Amps @ 50 PSI (3.4 BAR)
Fuse Size15 Amps (not included)
Duty CycleIntermittent
Leads12" (305mm), 14 AWG (2.5mm^2)
Wire ConnectionStripped wire
Weight (pump only)5.1 lbs.
Upper HousingGlass-filled polypropylene
Lower HousingCast aluminum
Check Valve RetainerPolypropylene
DiaphragmSantoprene
Check ValvesViton
Switch diaphragmViton
Bypass DiaphragmViton
PH SealsViton
PH FastenersStainless steel
BaseplateNylon with Rubber Feet
Motor CasingCast aluminum; coated steel
Supplier technical detailVersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI
Supplier technical detailIt has quick-connect ports and includes two 1/2" straight hose barbs.
Supplier technical detailPort Fittings: 2 x 1/2" (13mm) straight hose barb
Supplier technical detailMax Operating Pressure: 50 PSI (3.4 BAR)
Supplier technical detailMax Inlet Pressure: 30 PSI (2.2 BAR)
Supplier technical detailSelf-Priming Capability: Up to 8ft (2.4m) dry prime
Supplier technical detailVoltage Range: 9 V- 13.6 V
Supplier technical detailMax Current Draw: 9.5 Amps @ 50 PSI (3.4 BAR)
Supplier technical detailLeads: 12" (305mm), 14 AWG (2.5mm^2)
Supplier technical detailLower Housing: Cast aluminum
Supplier material detailPH Fasteners: Stainless steel
Supplier technical detailPH Fasteners: Stainless steel
Supplier material detailBaseplate: Nylon with Rubber Feet
Supplier technical detailMotor Casing: Cast aluminum; coated steel
ApplicationsLiquid Transfer Spraying Cooling Circulation Filtration Dispensing
MaterialsUpper Housing: Glass-filled polypropylene Lower Housing: Cast aluminum Check Valve Retainer: Polypropylene Diaphragm: Santoprene Check Valves: Viton Switch diaphragm: Viton Bypass Diaphragm: Viton PH Seals: Viton PH Fasteners: Stainless steel Baseplate: Nylon with Rubber Feet Motor Casing: Cast aluminum; coated steel
Product-name configuration3.5 GPM, 12V, 50 PSI
