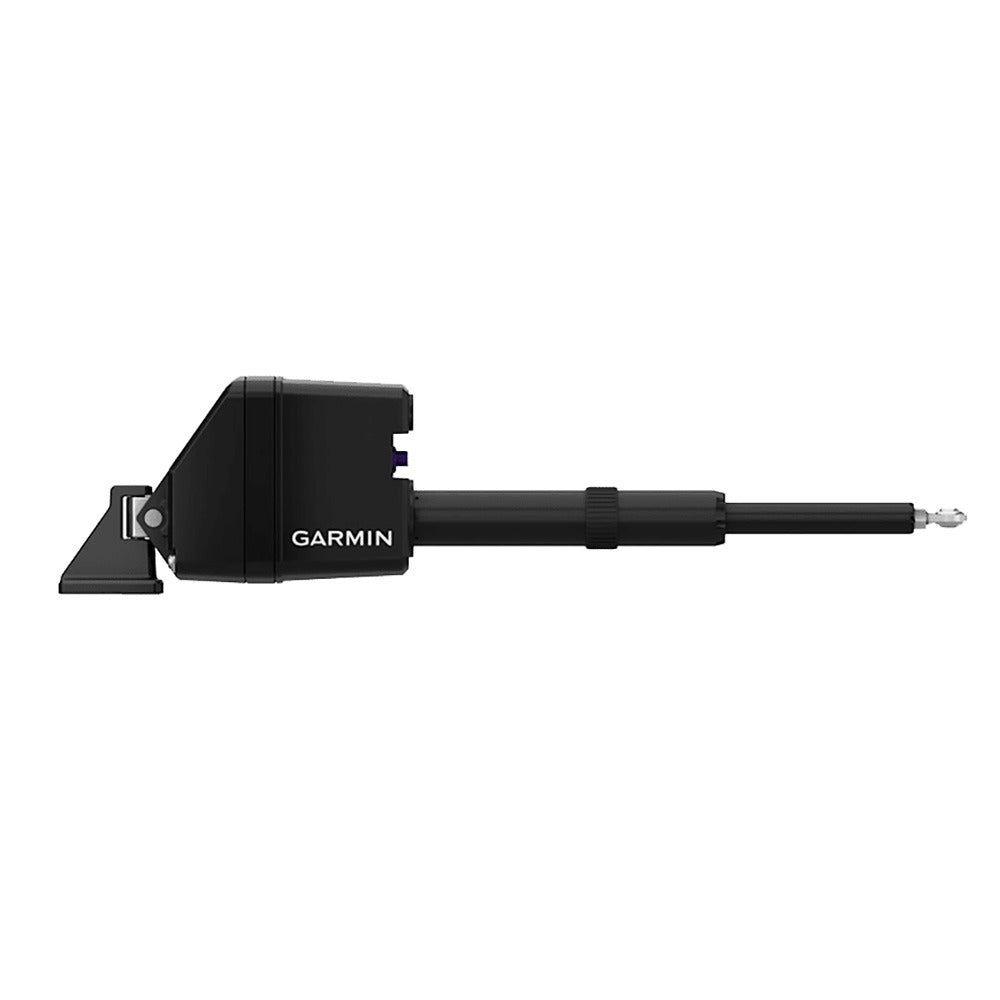

Garmin SmartDrive™ Autopilot Actuator f/Sailboats

SKU: gar-010-02794-12  |  Manuf. Code: 010-02794-12
$3,499.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

SmartDrive™ Autopilot Actuator for Sailboats

The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with a built-in ECU. Get precise rudder awareness with minimal mechanical wear.

Features:

  • BUILT-IN ECU FULLY ENGINEERED AND MADE BY GARMIN
  • PREMIUM AUTOPILOT PERFORMANCE WITH MAXIMUM THRUST UP TO 1,050 LBS
  • CONTACTLESS RUDDER POSITION SENSOR FOR SUPERIOR RELIABILITY AND FEWER MOVING PARTS
  • SIMILAR FORM FACTOR TO OTHER ACTUATORS ALLOWS EASY REPLACEMENT FOR RETROFIT
  • USER-ADJUSTABLE MAX FORCE OUTPUT SUITS A WIDE RANGE OF VESSELS
  • MORE ACCURATE TACK AND GYBE WITH ADJUSTABLE SPEED, AUTO RESPONSE, AND IMPROVED UPWIND HOLD

FITS YOUR VESSEL

The brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).

SMARTDRIVE ACTUATOR

This product is the first sailboat autopilot to use a brushless DC motor with a built-in ECU to provide superior performance and simplified installation.

Specifications:

  • Drive unit type: Mechanical linear
  • Maximum boat displacement: 33,000 lbs (15,000 kg)
  • Stroke length: 12" (300 mm)
  • Maximum thrust (adjustable software setting): High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg)
  • Dimensions, including base, mid-stroke (WxHxD): 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm)
  • Weight: 19.8 lbs (9 kg)
  • Supply voltage: 10 to 32 Vdc
  • Average typical current at 12 V: 0.8 to 5 A, depending on conditions
  • Peak momentary current: 25 A
  • Lock-to-lock time: 11 seconds
  • Operating temperature: -20° to 55° C (-4° to 131° F)
  • Water ingress: IPX7

In The Box:

  • SmartDrive™ actuator
  • Mounting hardware
  • Documentation

Mfr. Part # 010-02794-12

FEATURES

  • BUILT-IN ECU FULLY ENGINEERED AND MADE BY GARMIN
  • PREMIUM AUTOPILOT PERFORMANCE WITH MAXIMUM THRUST UP TO 1,050 LBS
  • CONTACTLESS RUDDER POSITION SENSOR FOR SUPERIOR RELIABILITY AND FEWER MOVING PARTS
  • SIMILAR FORM FACTOR TO OTHER ACTUATORS ALLOWS EASY REPLACEMENT FOR RETROFIT
  • USER-ADJUSTABLE MAX FORCE OUTPUT SUITS A WIDE RANGE OF VESSELS
  • MORE ACCURATE TACK AND GYBE WITH ADJUSTABLE SPEED, AUTO RESPONSE, AND IMPROVED UPWIND HOLD
  • Drive unit type: Mechanical linear

TECHNICAL INFORMATION

SpecificationValue
ManufacturerGarmin
Manufacturer part number010-02794-12
Drive unit typeMechanical linear
Maximum boat displacement33,000 lbs (15,000 kg)
Stroke length12" (300 mm)
Maximum thrust (adjustable software setting)High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg)
Dimensions, including base, mid-stroke (WxHxD)4.5" x 7.75" x 27.6" (114 x 197 x 700 mm)
Weight19.8 lbs (9 kg)
Supply voltage10 to 32 Vdc
Average typical current at 12 V0.8 to 5 A, depending on conditions
Peak momentary current25 A
Lock-to-lock time11 seconds
Operating temperature-20° to 55° C (-4° to 131° F)
Water ingressIPX7
Supplier application or construction detailSIMILAR FORM FACTOR TO OTHER ACTUATORS ALLOWS EASY REPLACEMENT FOR RETROFIT
Supplier technical detailSIMILAR FORM FACTOR TO OTHER ACTUATORS ALLOWS EASY REPLACEMENT FOR RETROFIT
Supplier technical detailFITS YOUR VESSEL
Supplier application or construction detailThe brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).
Supplier technical detailThe brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).
Supplier technical detailStroke length: 12" (300 mm)
Supplier dimension detailDimensions, including base, mid-stroke (WxHxD): 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm)
Supplier technical detailDimensions, including base, mid-stroke (WxHxD): 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm)
Supplier technical detailAverage typical current at 12 V: 0.8 to 5 A, depending on conditions
Supplier technical detailPeak momentary current: 25 A
In The BoxSmartDrive™ actuator Mounting hardware Documentation
Application stated in product nameSailboats
