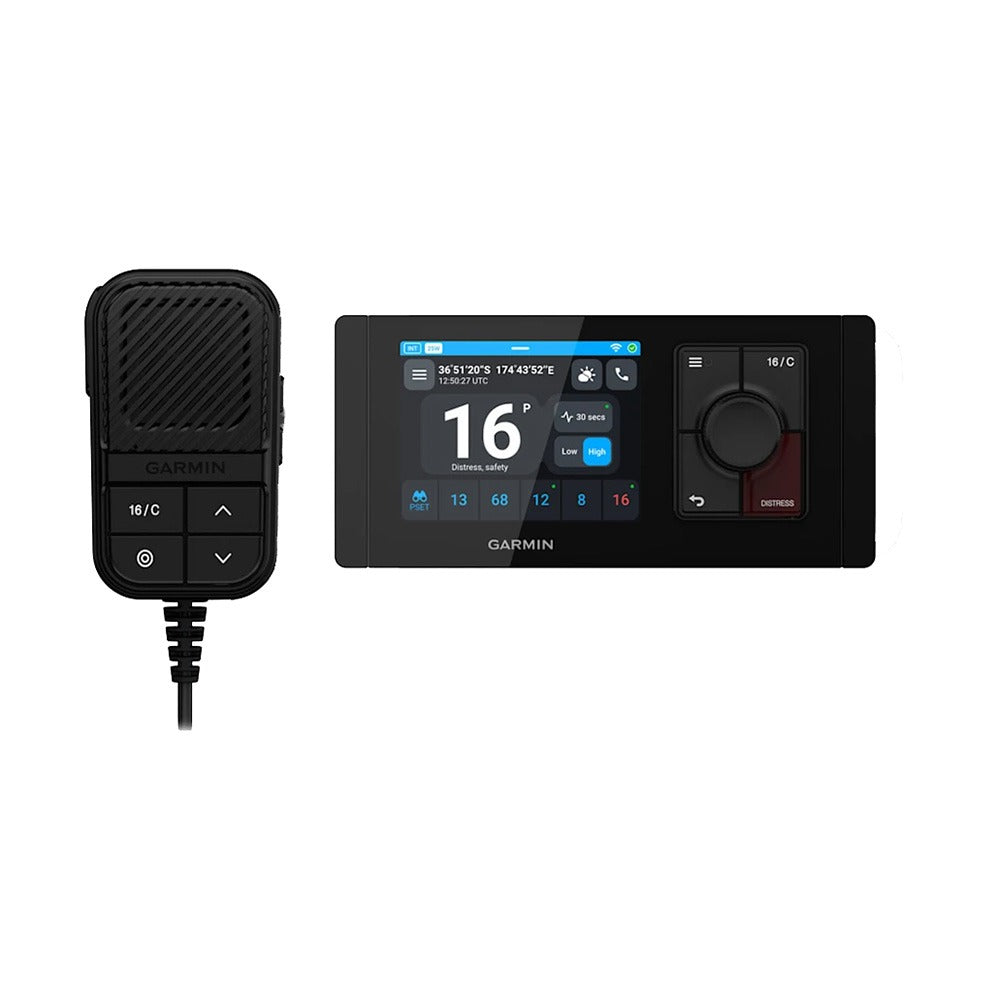

Garmin Signal 220 VHF Radio w/Built-In AIS Receiver

Signal 220 VHF Radio with Built-In AIS Receiver

Built-In AIS

Stay aware of the water with built-in AIS receive capabilities. This feature shows you range, course, speed, and the crossing situation of other AIS-equipped vessels around you to help you navigate.

Sleek Design

The compact and modern design features edge-to-edge glass and takes up minimal space at the helm.

Clear & Simple Communication

Eliminate unnecessary radio noise with automated squelch. If you miss a radio message, you can replay it with VHF audio playback. When you need to maintain watch on multiple channels, advanced watch modes make it easy.

Stay Connected

Quickly transmit a distress signal to nearby vessels with the distress button, which uses Class D DSC to automatically send crucial information that can help emergency responders. You can also use the intuitive DSC features to quickly initiate contact with other AIS-equipped vessels; simply select the vessel on the AIS plotter view, and call them with a tap of a button.

Easy To Update

Configure the radio, program the MMSI number, and get over-the-air software updates with the ActiveCaptain® smartphone app via built-in Wi-Fi® connectivity.

Installation Is A Breeze

Installation is simple since VHF/DSC/AIS features only require a single VHF antenna, and the GPS antenna/receiver is built into the unit. Chartplotter integration is seamless via the NMEA 2000® network and Garmin BlueNet™ Network.

VHF Features:

• All U.S., Canadian, and International marine channels, NOAA weather channels
• Adaptive noise cancellation
• Audio record and playback
• Auto squelch
• Dual/Tri watch
• Presets watch
• NOAA weather alert
• NOAA weather watch
• Loud hailer
• Loudhailer listen back
• Intercom support
• AIS target display
• AIS collision and MOB alarms

Specifications:

• Unit size: Head Unit: 75 x 160 x 104 mm (3.0" x 6.3" x 4.1")
• Fist Mic: 100 x 60 x 31 mm (3.9" x 2.4" x 1.2")
• Weight: Head Unit: 655 g (1.45 lbs), Fist Mic: 245 g (0.54 lbs)
• VHF transmit power (max): 25 W, 1 W (high, low)
• Operating voltage: 9.6 - 32 VDC
• Water rating: IPX7
• Display Type: color IPS LCD, capacitive touch
• Display Size: 3.5" (89 mm)
• Display resolution: 640 x 480 pixels
• Operating temperature: –20° to 55° C (–4° to 131° F)
• Inland waterways (ATIS): yes
• Backlight: 1,000 nits
• Multi-language interface: yes

In the Box:

• Garmin Signal™ VHF 220 head unit
• Fist mic
• Sun cover
• Head unit power and external audio cable with fuse (2 m)
• Fist mic power cable with fuse (2 m)
• Drop cable for NMEA 2000® network (2 m)
• Mounting hardware
• Mounting template
• Documentation

Our Part # GAR-010-02951-01 | Mfr. Part # 010-02951-01
