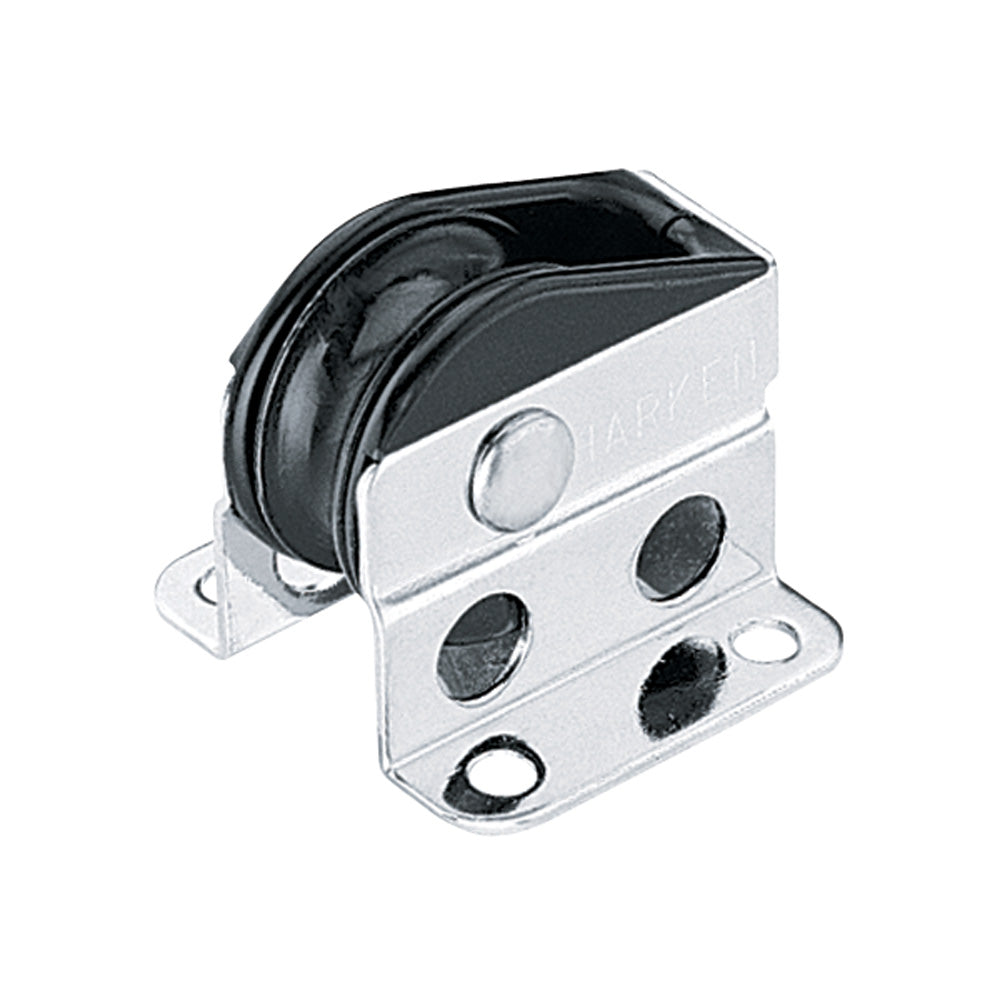

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications.
Our Part # HAR096 | Mfr. Part # 96
FEATURES
FEATURES
- 29mm Classic Bullet series.
- Single sheave, upright mount.
- Low-friction composite bearing.
- UV-stabilized for marine use.
- Ideal for control lines.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 1 1/7 in | 29.0 mm |
| Length | 1 1/2 in | 38.0 mm |
| Weight | 1.52 oz | 43.0 g |
| Maximum Line | 5/16 in | 8.0 mm |
| Fasteners | #10 RH in | 5 RH mm |
| Maximum working load | 300.0 lb | 136.0 kg |
| Breaking Load | 2000.0 lb | 907.0 kg |
