Description
Description

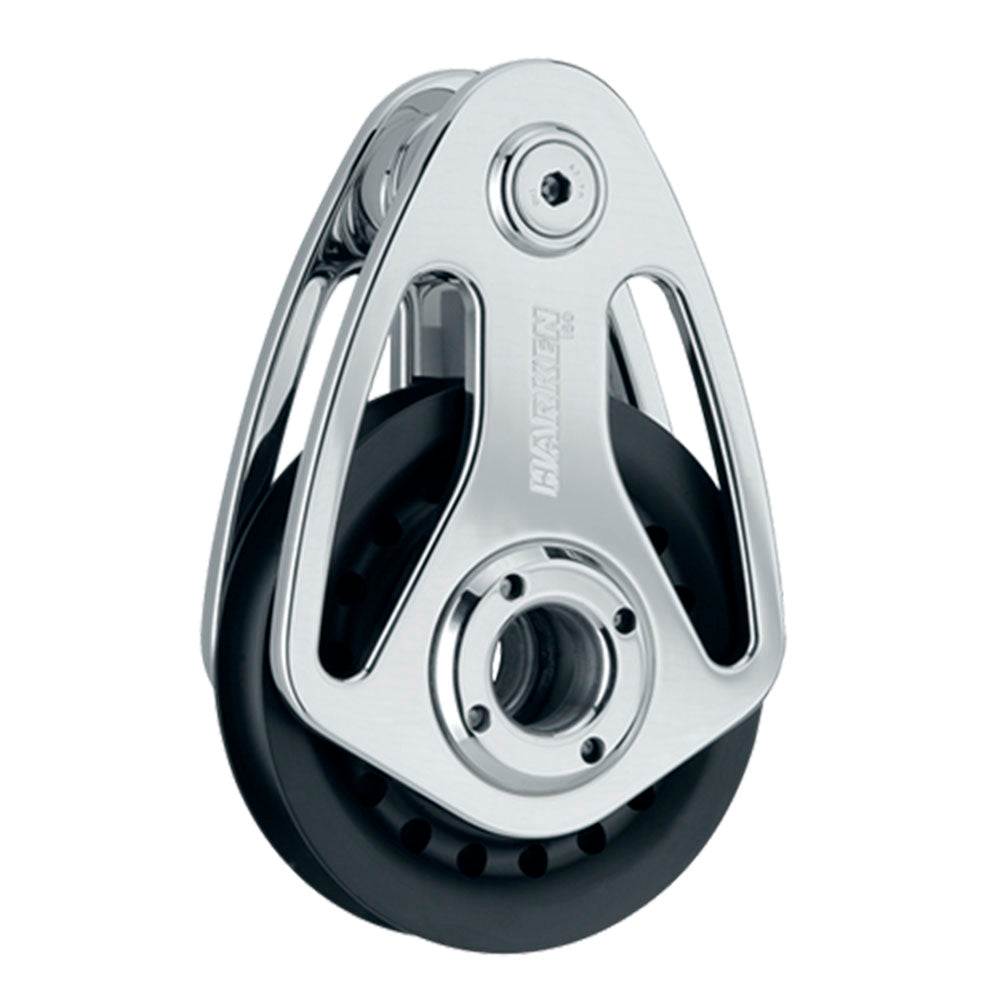

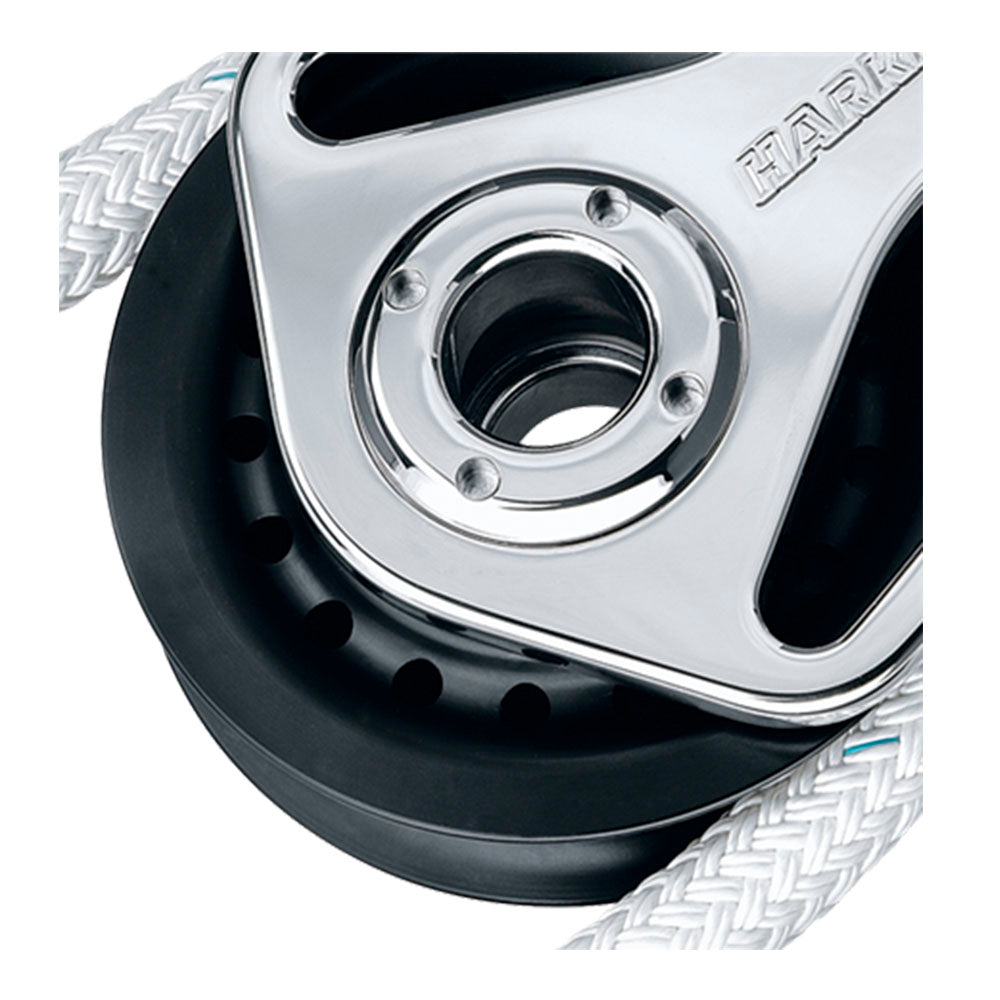

Stainless sideplates are mirror-polished for durability and unmatched esthetics. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC9088 | Mfr. Part # HC9088
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sheave Ø | 6.0 in | 15.0 cm |
| Length | 9 1/7 in | 23.2 cm |
| Weight | 8.11 lb | 3.68 kg |
| Max line Ø | 1.0 in | 25.0 mm |
| Maximum working load | 22050.0 lb | 10000.0 kg |
| Breaking load | 44100.0 lb | 20000.0 kg |
