DESCRIPTION
DESCRIPTION

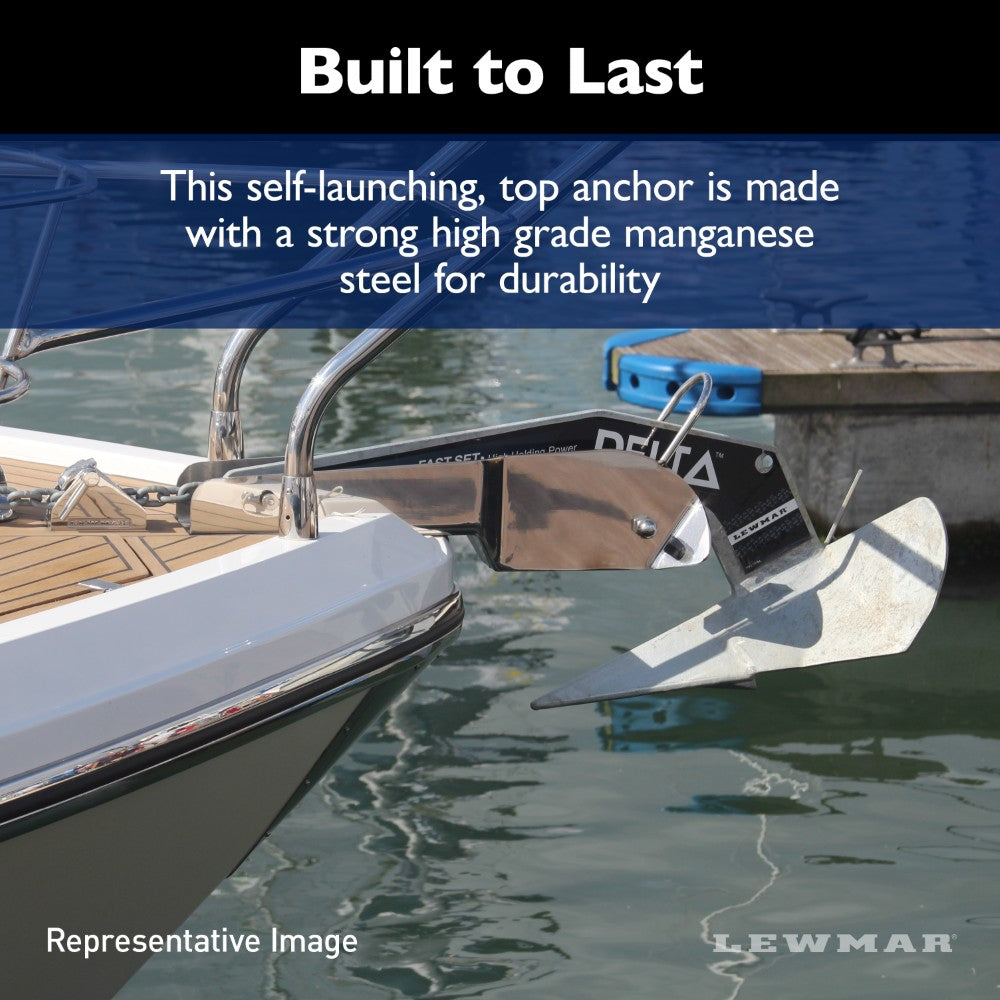

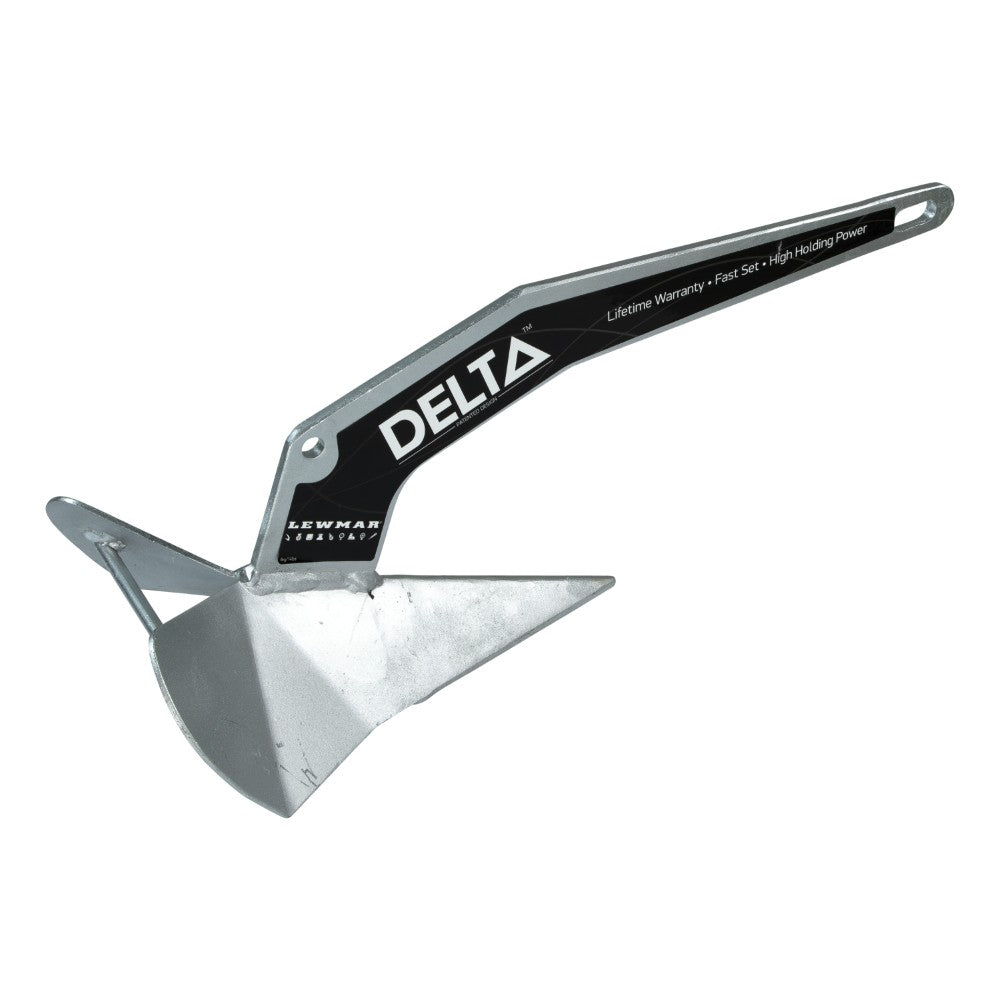

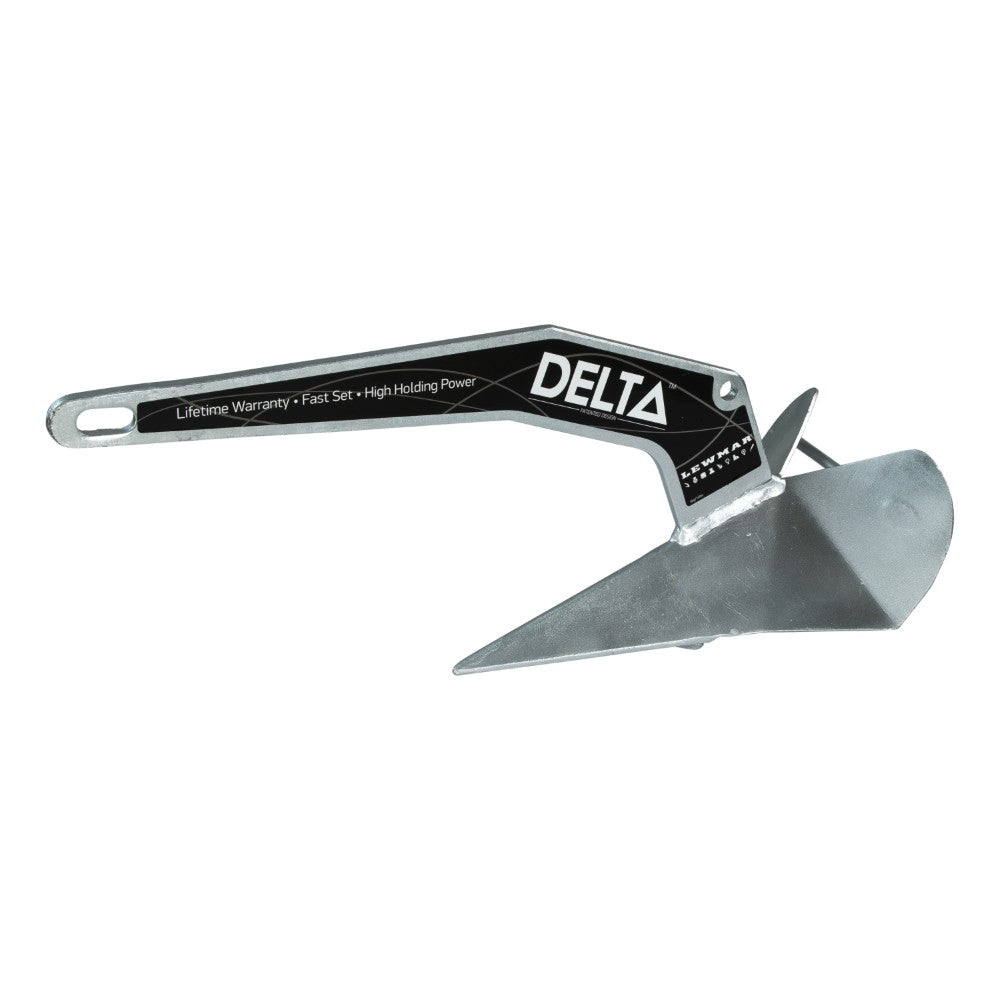

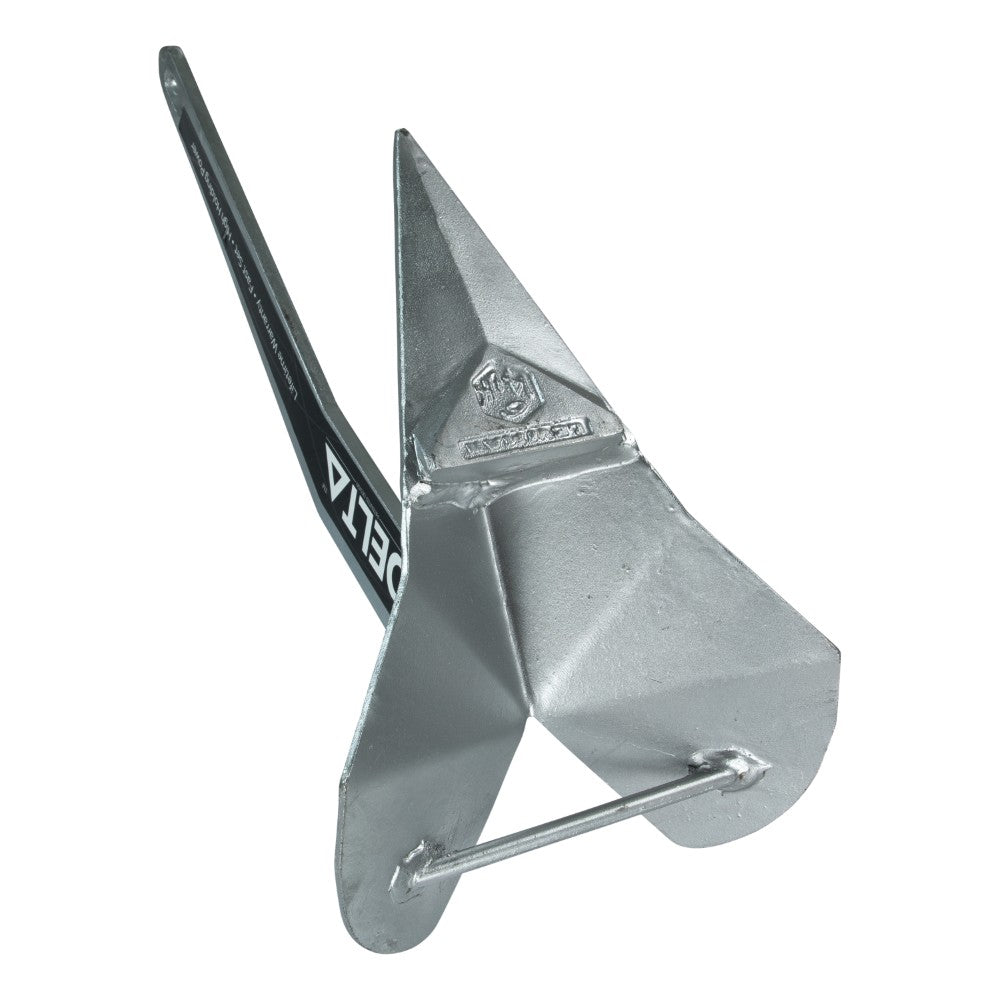

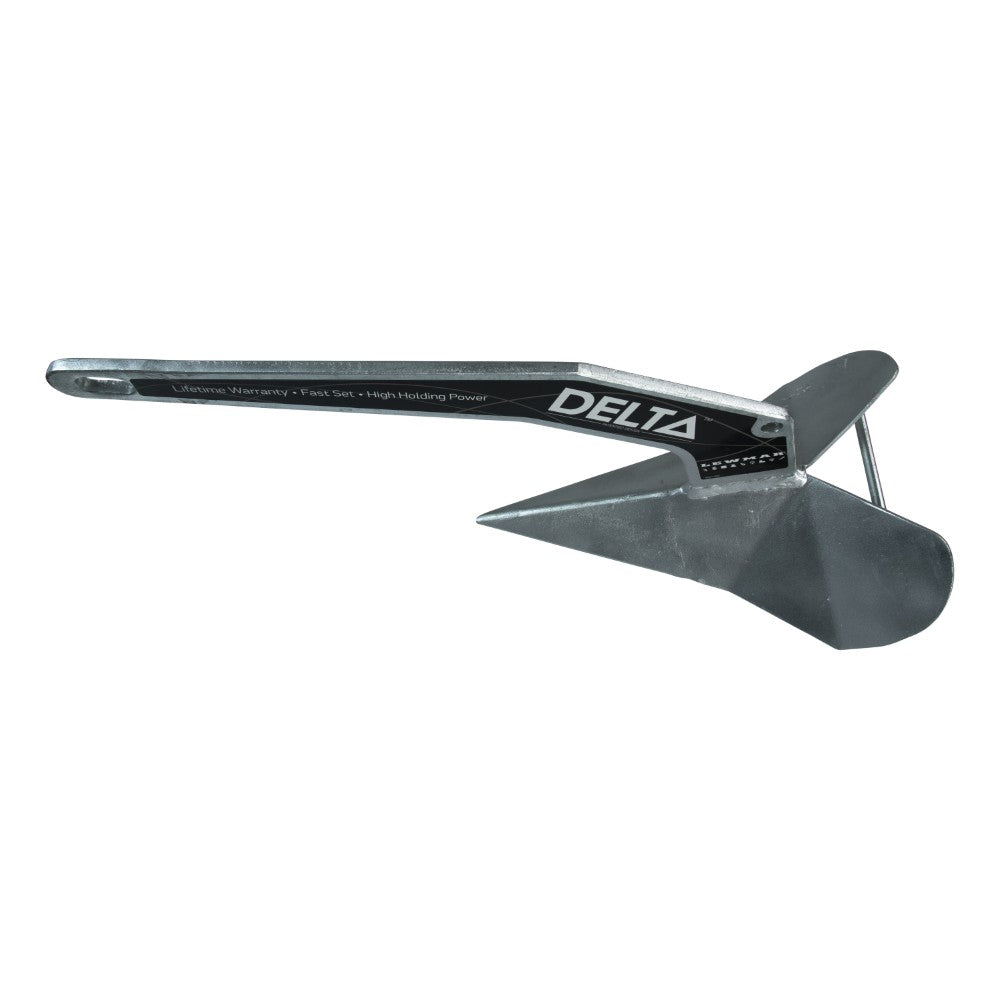

The Delta® anchor is constructed of high-grade manganese steel or Duplex stainless steel for maximum tensile strength. Its unique shank profile and ballasted tip make it self-launching. And its low center of gravity and self-righting geometry ensure that it will set inmediately.
Consistent and reliable in performance, the Delta® anchor is guaranteed for life against breakage, has Lloyd's Register General Approval of an Anchor Design as a High Holding Power anchor and is specified as the primary anchor used by numerous National Lifeboat organizations.
Our Part # LEW0057416 | Mfr. Part # 57416

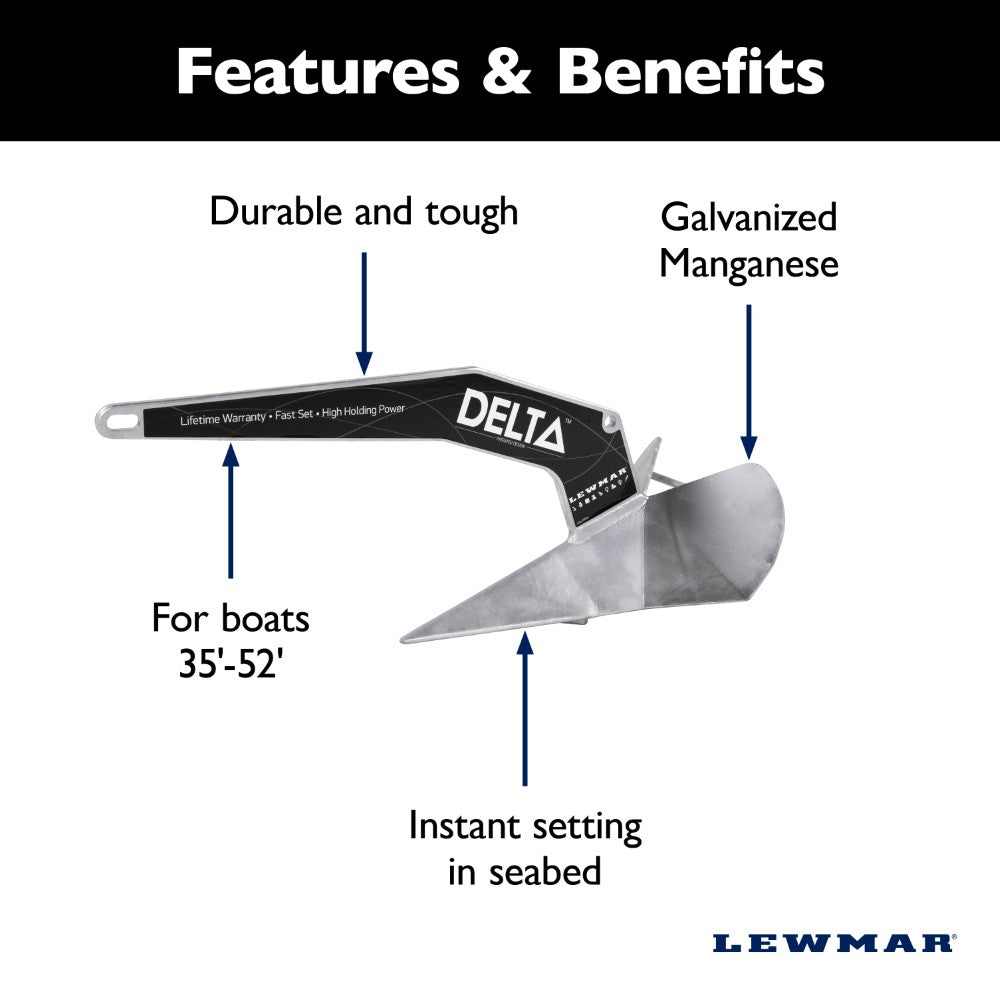

FEATURES
FEATURES
- Heavy-duty hot-dip galvanised finish.
- 35 lb (15.9 kg) for secure mooring.
- Weighted tip ensures quick, deep set.
- Non-fouling shank design.
- Lloyd's Register Type Approved.
KNOWLEDGE BASE
KNOWLEDGE BASE
TECHNICAL INFORMATION
TECHNICAL INFORMATION

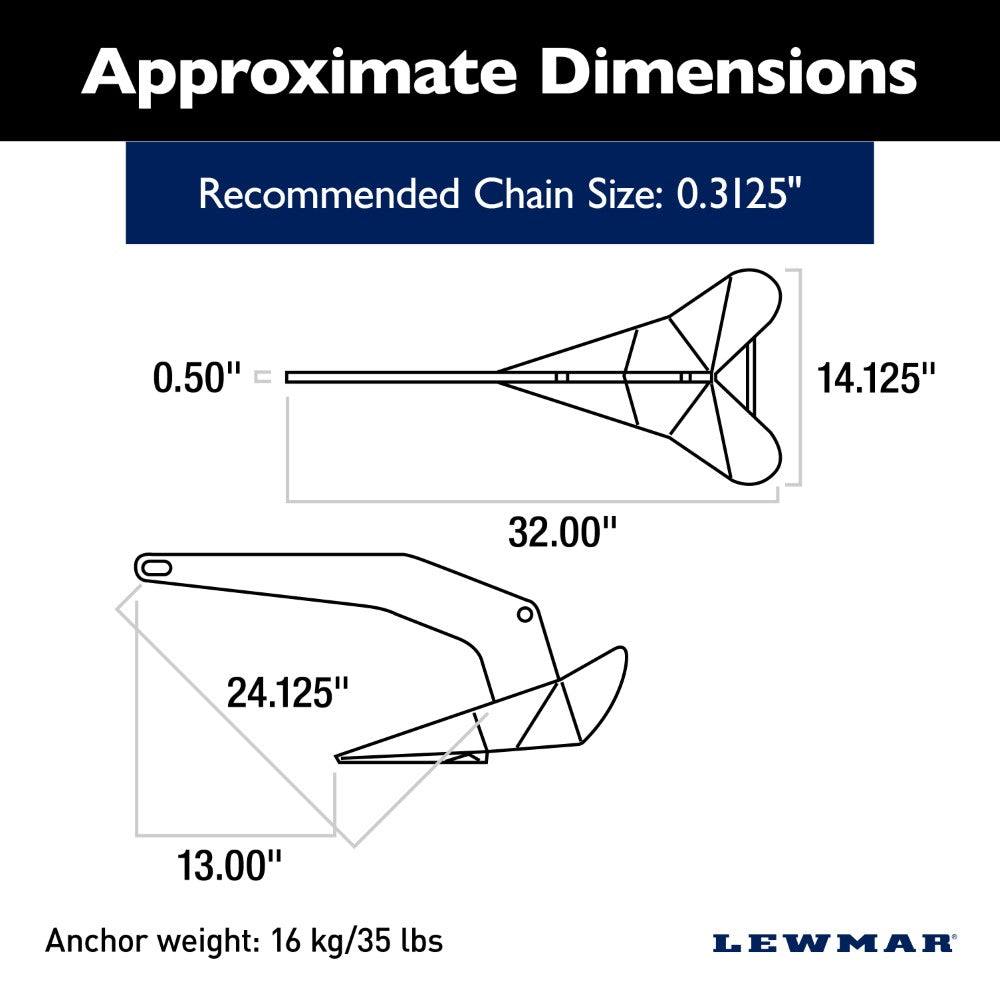

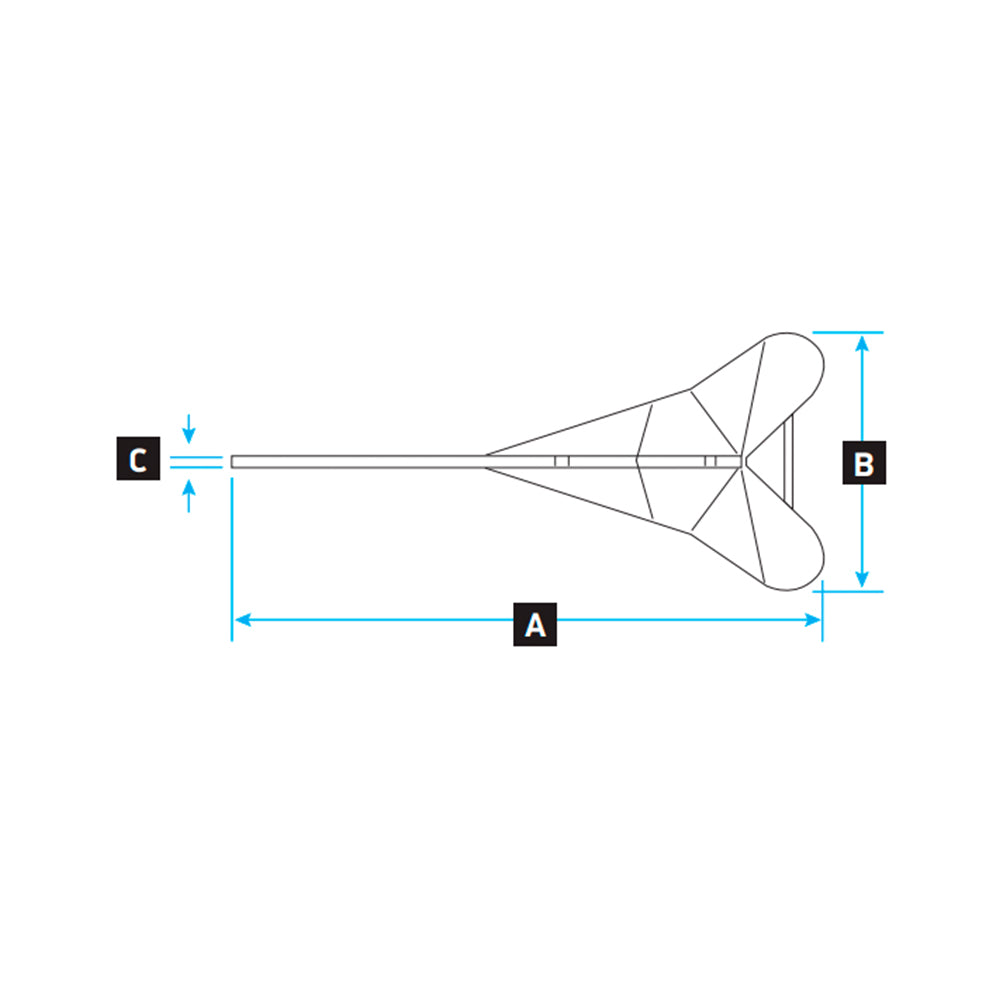

| Description | Metric | Imperial |
|---|---|---|
| Anchor weight | 16.0 kg | 35.0 lb |

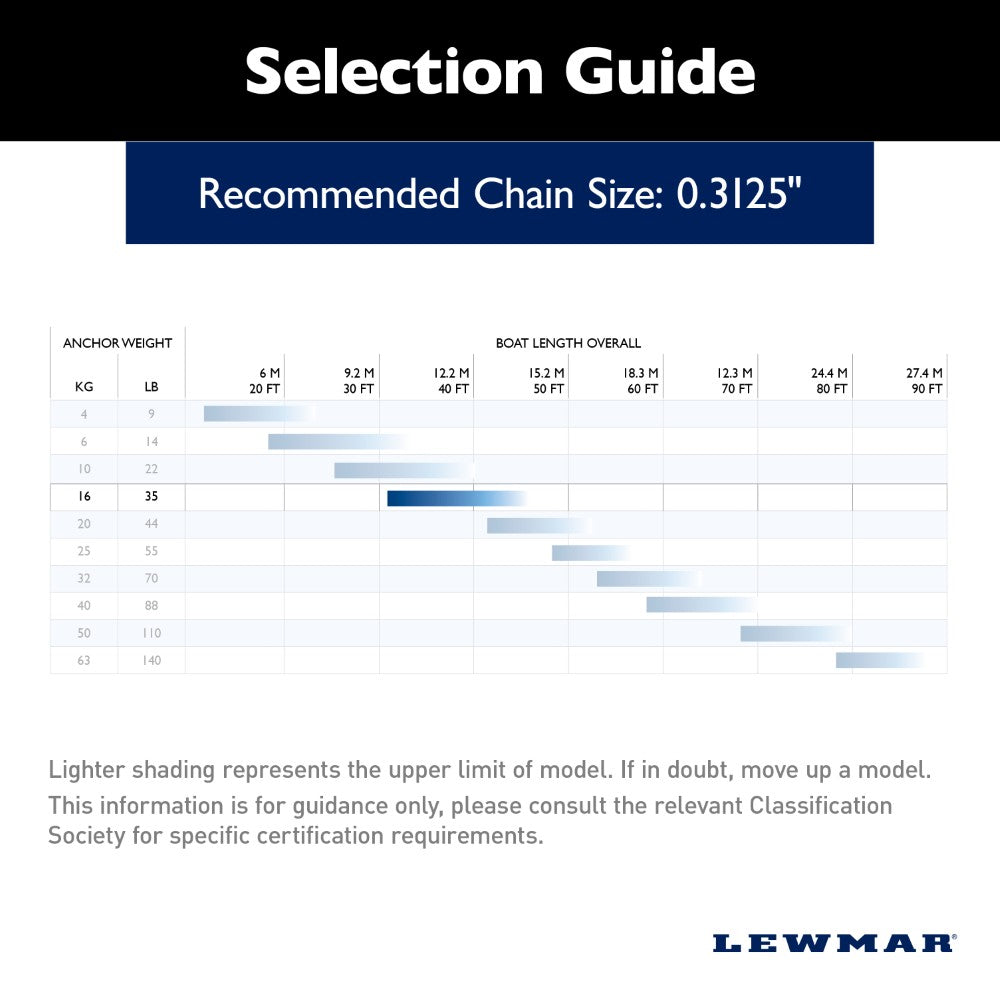

| Recommended chain size | 8.0 mm | 5/16 in |
| A | 812.0 mm | 32.0 in |
| B | 360.0 mm | 14 1/8 in |
| C | 12.0 mm | 1/2 in |

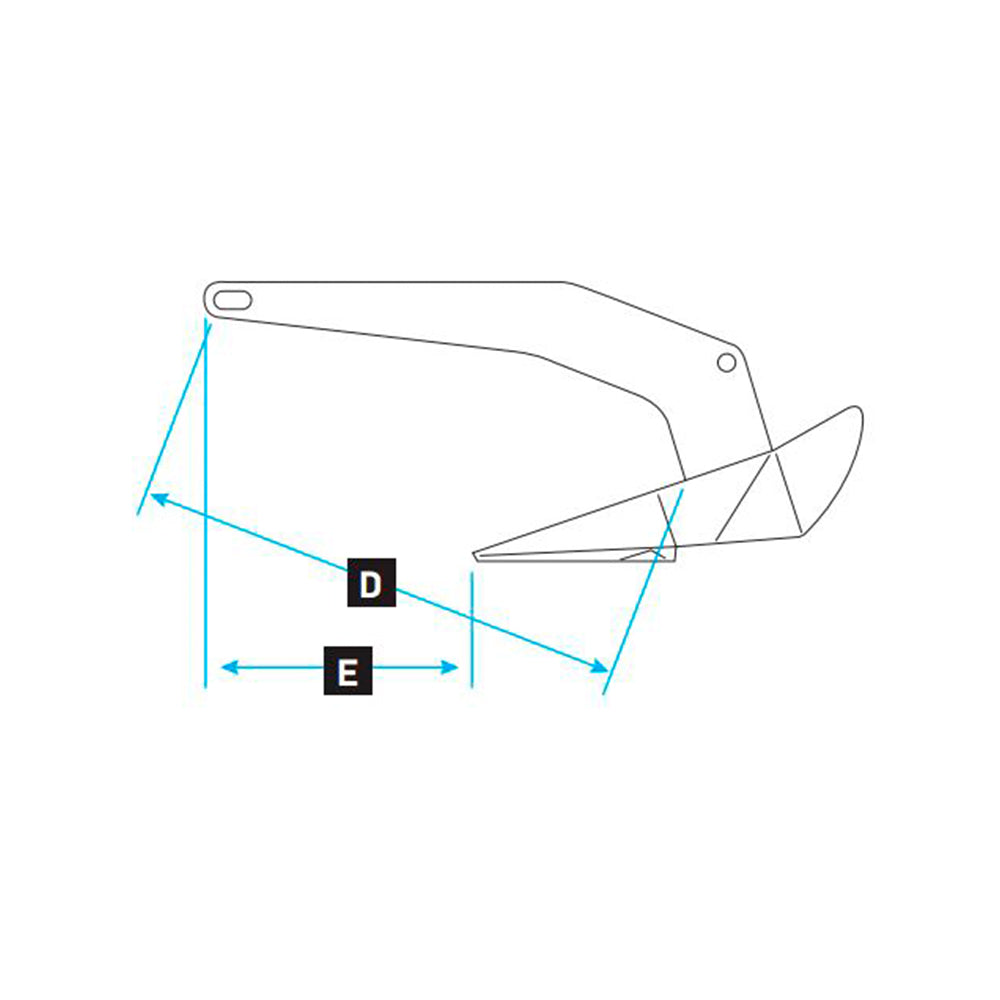

| D | 614.0 mm | 24 1/8 in |
| E | 334.0 mm | 13.0 in |
