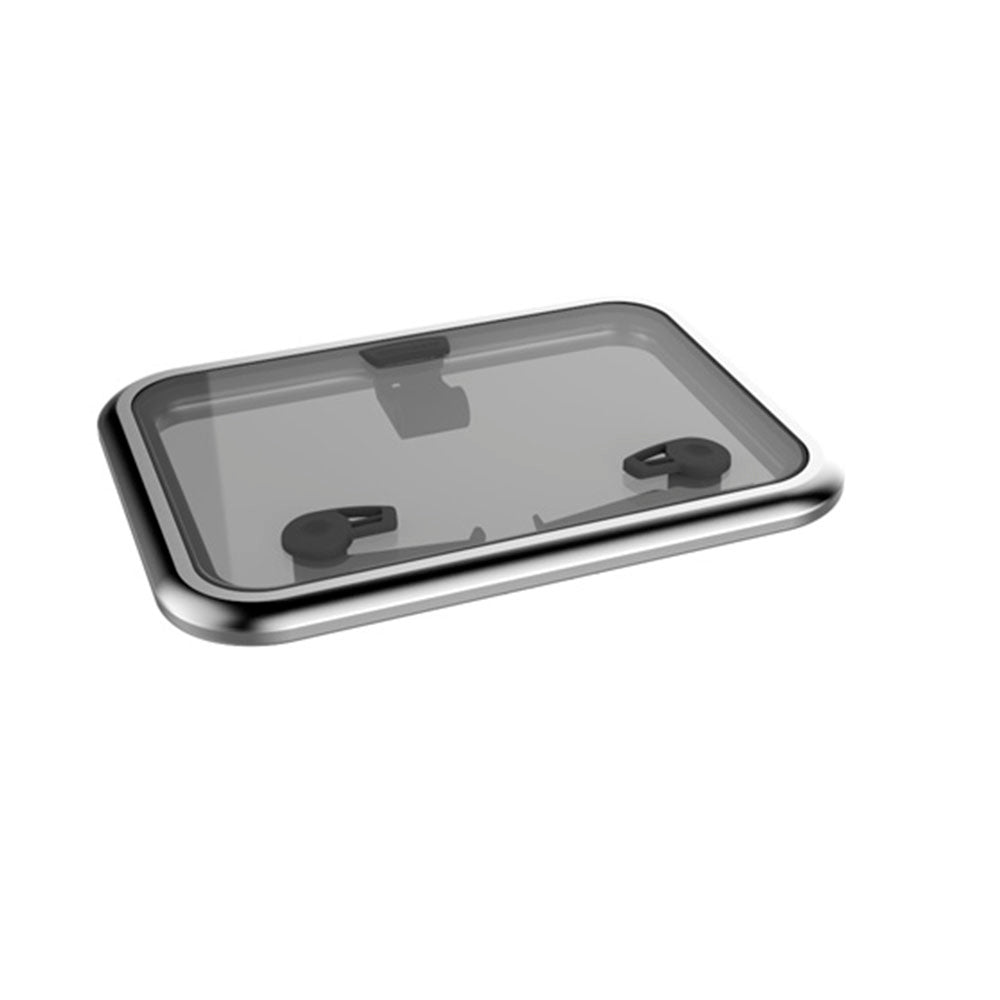

Lewmar Low Profile Hatch Size 40 - Cut Out: 42.1 x 42.1 cm (16 9/16 x 16 9/16 in) - White Acrylic / Silver Frame (39940330)
Lewmar Low Profile Hatch Size 40 - Cut Out: 42.1 x 42.1 cm (16 9/16 x 16 9/16 in) - White Acrylic / Silver Frame (39940330) is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Low Profile Hatch #39940330 is perfect for adding a touch of style and function to your vessel. Its sleek design makes it a great choice for powerboats and fits well on sailboats too. You’ll appreciate its practicality and modern look on your deck.
Constructed with a white acrylic top and a silver frame, this Lewmar hatch measures overall 19 5/16 x 19 5/16 inches (491 x 491 mm). It’s designed to fit securely on a flat surface with a tolerance of up to +/- 1mm. For mounting, use M6/1/4" fasteners at the hinge section and 5mm CSK screws (No.10 UNC 2 BA) for the lower frame.
UsageThis hatch is versatile enough for both smaller ventilation needs and as a foredeck hatch on smaller to mid-size yachts, making it a great addition to any sailing adventure.
Our Part # LEW39940330 | Mfr. Part # 39940330
Features
Features
- Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside)
- Friction levers hold the lid open in any position up to 95 degrees
- Anodised aluminium frame for corrosion resistance
- Curved upper frame profile for strength as well as modern styling
- Available in Round and D-Hatch configuration
- Full range of spare parts available
- Soft styling and sleek appearance
- Ideal for powerboats and various locations on sailboats
- Available in multiple sizes for versatility
Technical Information
Technical Information

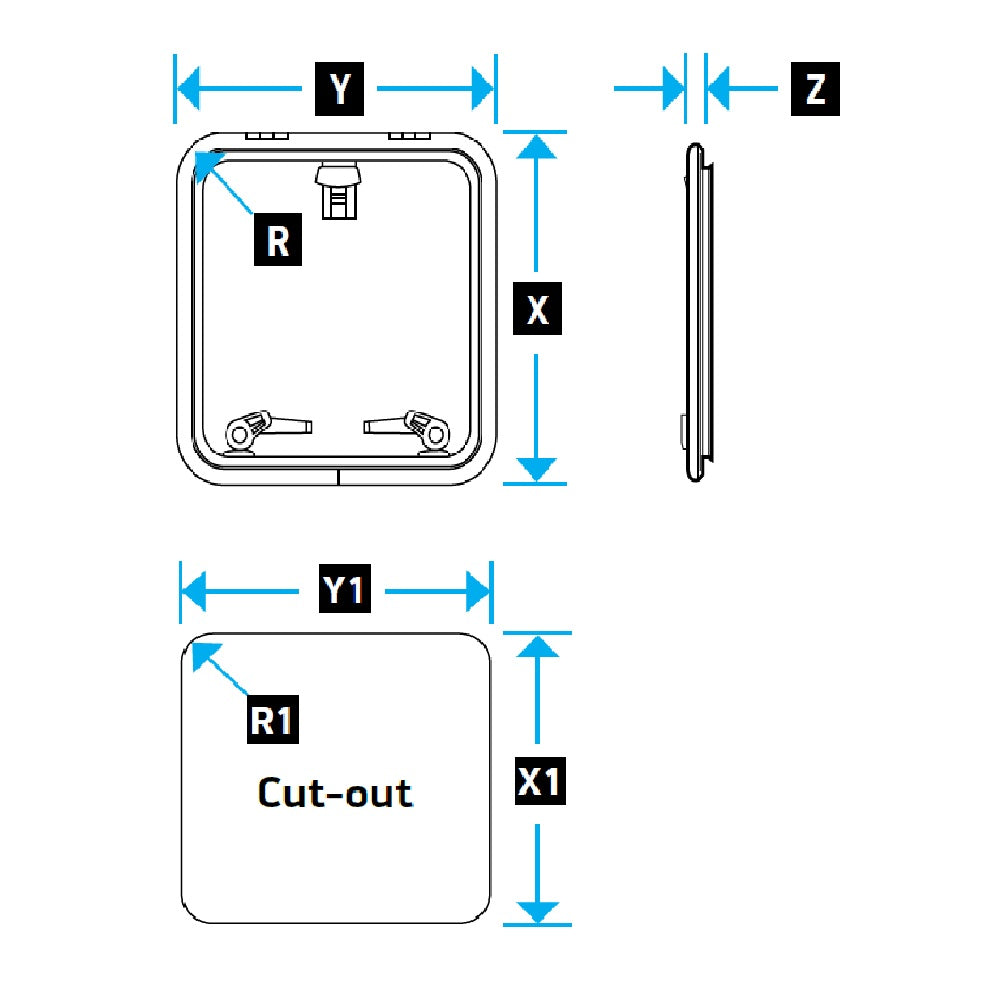

| Description | Metric | Imperial |
|---|---|---|
| Size | 40 | |
| Lower frame flange | 15 mm | 19/32 in |
| Length (X) | 491 mm | 19.33 in |
| Width (Y) | 491 mm | 19.33 in |
| Height (Z) | 25 mm | 1.0 in |
| Radii (Z) | 72.5 mm | 2.85 in |
| Length (X1) | 421 mm | 16.57 in |
| Width (Y1) | 421 mm | 16.57 in |
| Radii (Z1) | 42.5 mm | 1.67 in |
| Hatch weight | 4.6 kg | 10.1 lb |
| Acrylic window thickness | 8 mm | 0.31 in |
