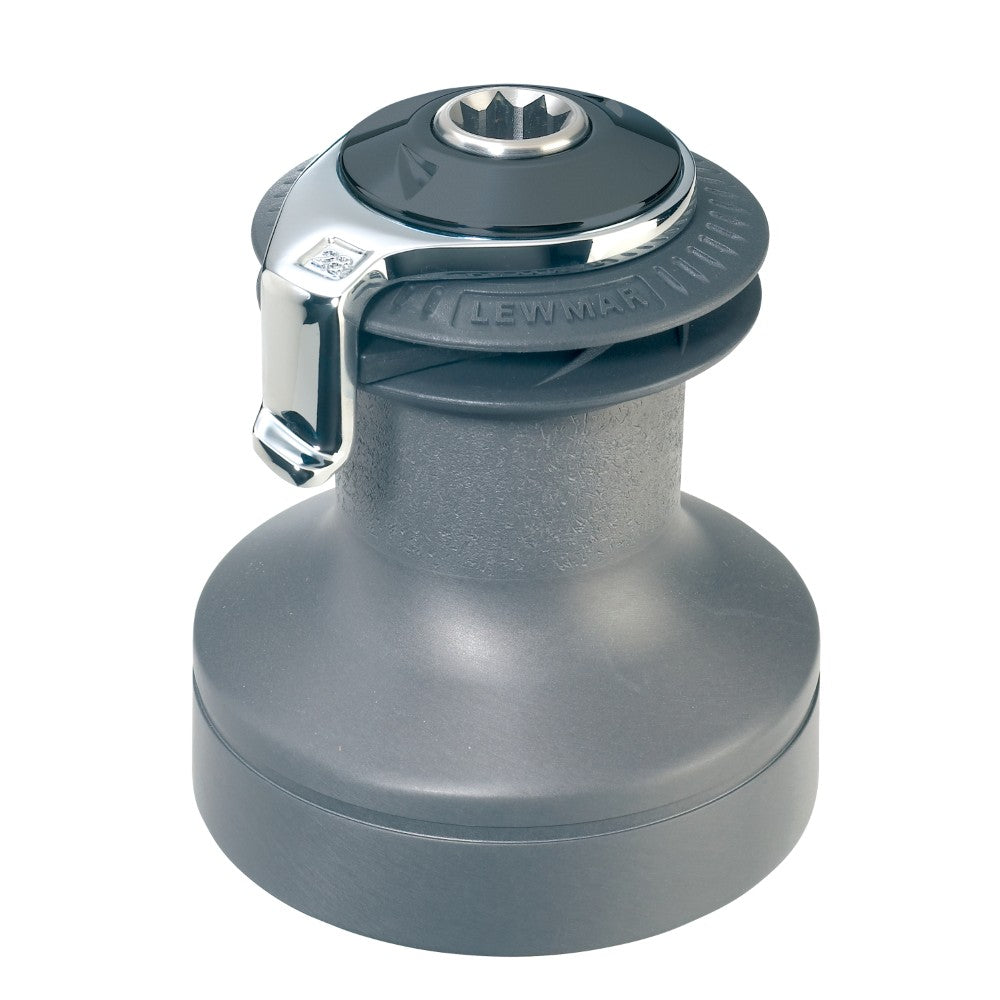

Lewmar Self-Tailing Stainless Steel Winch. The ultimate self-tailing design, this winch is simple to use and provides a firm grip on the line. Adapts to a wide range of line diameter automatically.
Our Part # LEW49048058 | Mfr. Part # 49048058

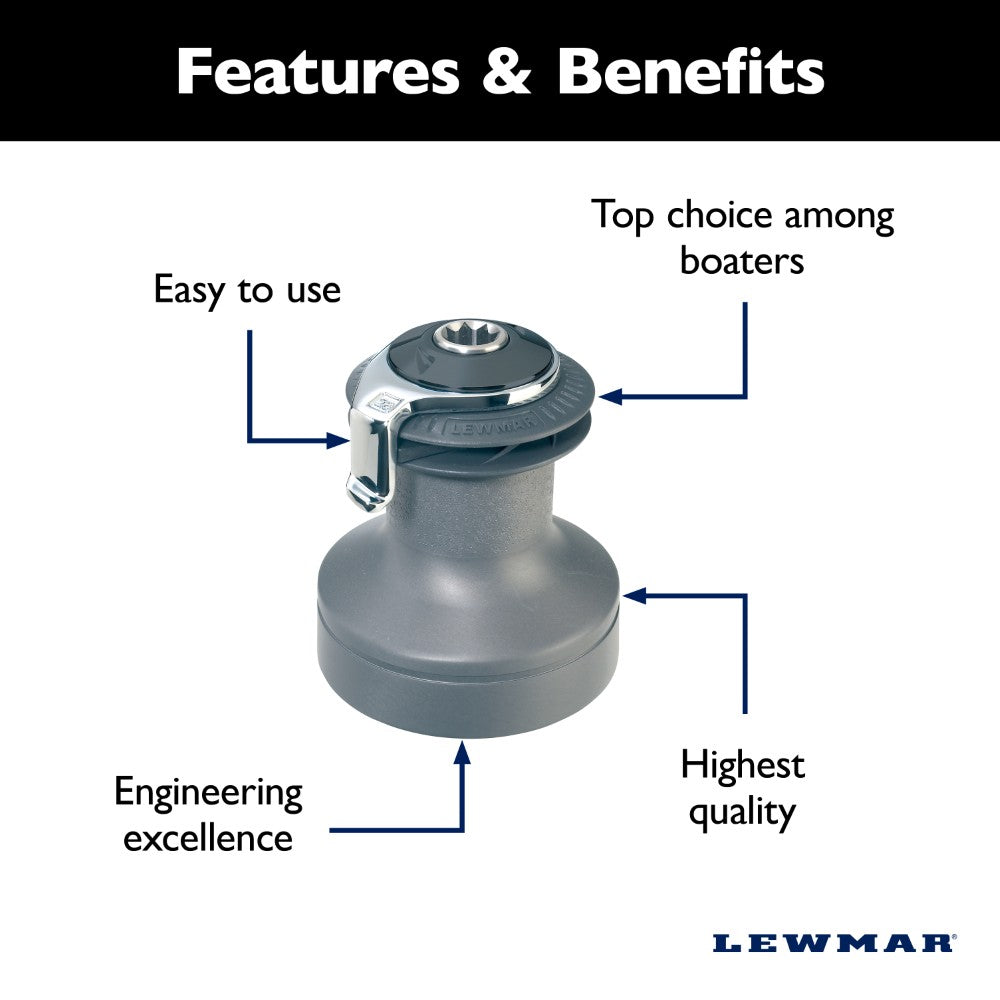

FEATURES
FEATURES
- Self-tailing functionality for single-handed sailing.
- Polished stainless steel finish.
- Robust two-speed gearing.
- Ocean series, size 48.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Gear Ratio 1st gear | 2.6:1 | |
| Gear Ratio 2nd gear | 9:1 | |
| Power Ratio 1st gear | 13.9:1 | |
| Power Ratio 2nd gear | 48.6:1 | |
| Weight | 26.70 lb. | 12.11 kg. |

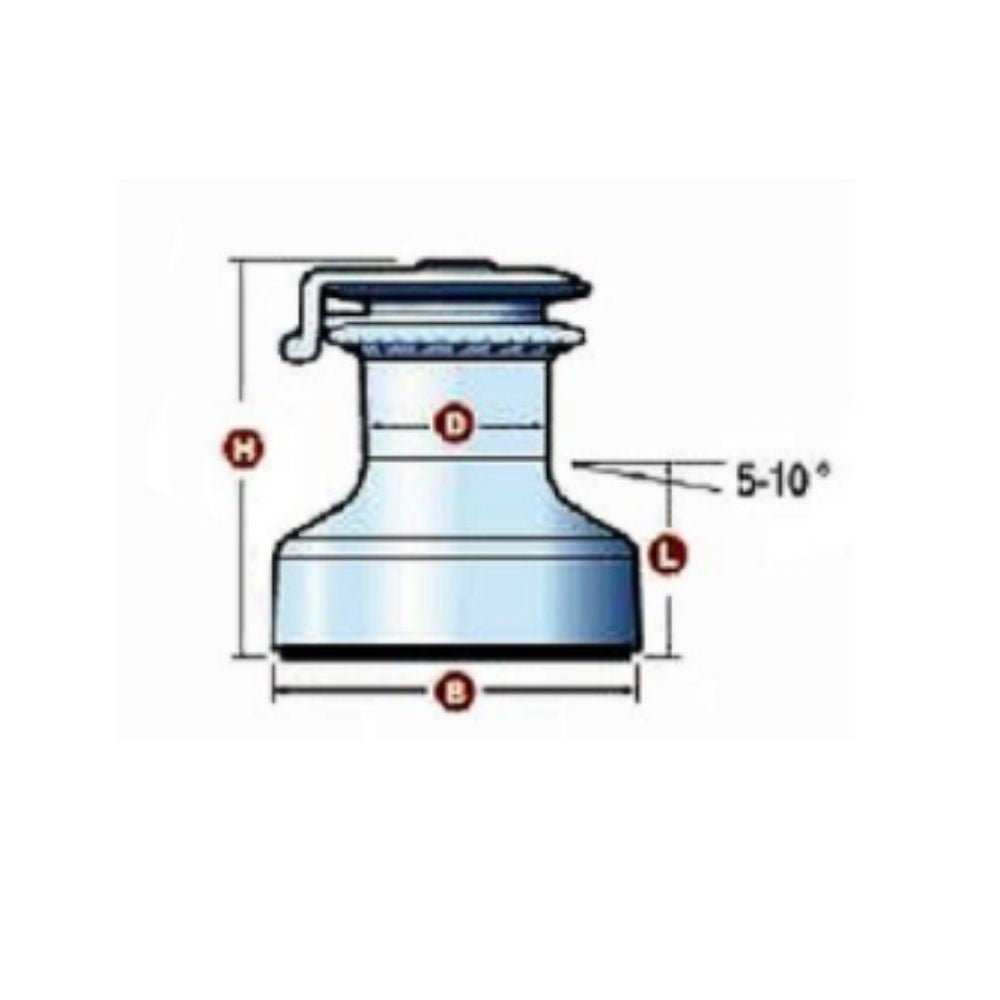

| Drum Diameter | 3 11/16 in. | 93.00 mm. |
| Base Diameter | 7 1/8 in. | 181.00 mm. |
| Height | 8 3/16 in. | 208.00 mm. |
| Line Entry | 3 3/8 in. | 86.00 mm. |
| Line Size | 5/16 - 9/16 in. | 8.00 - 14.00 mm. |
