DESCRIPTION
DESCRIPTION

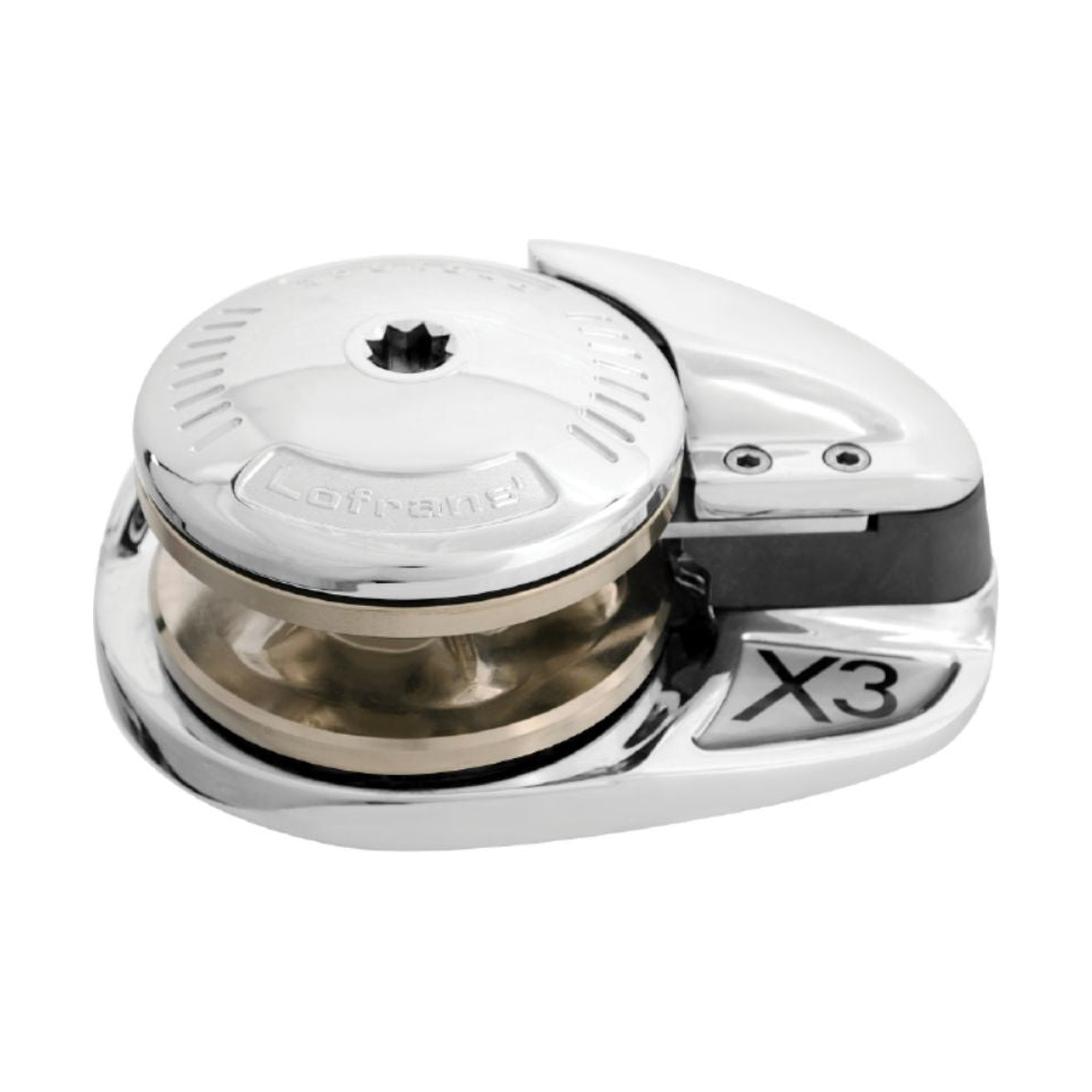

The Lofrans Project 1500 X3 LP Windlass is a powerful electric option for mid-sized boats, likely around 45 feet. The 1500-watt motor tackles both chain and rope with separate gypsy and capstan heads. This windlass prioritizes durability with a corrosion-resistant body and offers a manual override for backup. While specific details are limited, it should provide reliable anchoring with the option to add a chain counter for increased control.
Standard Equipment:
- Watertight dual-direction control box
- Emergency override handle
- Rope/chain gypsy
- Neoporene deck gasket
FEATURES
FEATURES
- Powerful 1700W electric motor.
- Designed for 24V marine systems.
- Vertical mount for easy installation.
- Gypsy handles 5/16" G4 chain.
- Durable marine-grade construction.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Motor Wattage | 1700 W. | |
| Description | Project 1500 Windlass, Low Profile, 1700W, 24VDC, Chrome | |
| Power Rating | 2450.00 lb. | 1111.00 kg. |
| Approx. Amp Draw | 50 - 70 amp. | |
| Max Retrieval Speed | 60.00 ft/min | 19.00 m/min |
| Deck Thickness | 1 15/16 - 2 3/4 in. | 49.00 - 70.00 mm. |
| Volts | 24 V. | |
| Approximate Ship Weight | 68.00 lb. | 31.00 kg. |
