Lowrance HDS PRO 12 w/Preloaded C-MAP DISCOVER OnBoard & Active...
DESCRIPTION
DESCRIPTION

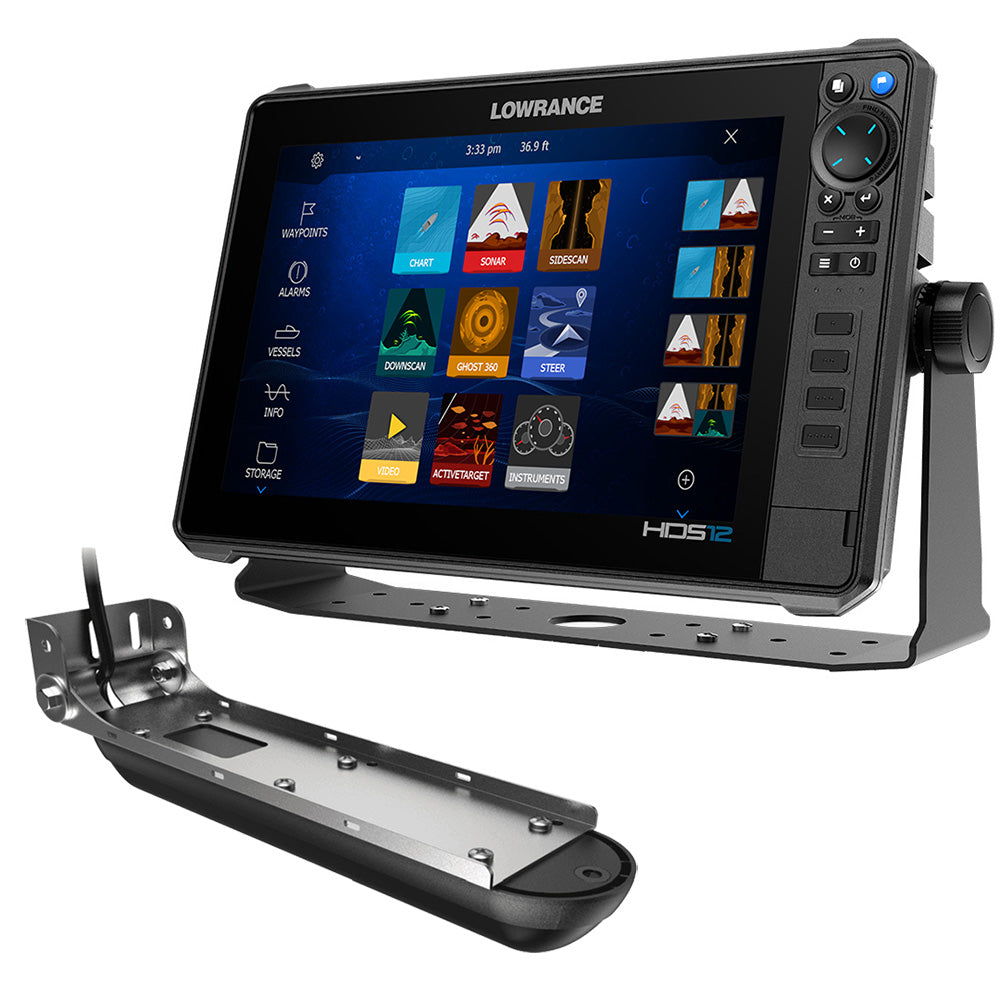

HDS PRO 12 with Preloaded C-MAP DISCOVER OnBoard & Active Imaging 3-in-1 Transom Mount Transducer
See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get a full fishing system that networks with expanded boat control from bow to stern.
Features:
- Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
- SolarMAX™ HD Touchscreen is viewable at extreme angles and through polarized lenses
- High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
- High-resolution ActiveTarget 2 Live Sonar ready
- FishReveal™ with SideScan view, as well as DownScan (*Requires S3100 and compatible transducer)
- Real-time mapping is available with C-MAP Genesis Live.
- Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
- Large programmable keys
- Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
- NMEA 2000, wireless and Bluetooth connectivity – plus smartphone notifications
Display:
- Backlight Color: Pure white LED
- Display Resolution: 1280 x 800
- Viewing Angles: 80° top/bottom, 80° left/right
Connectivity:
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 2 x 100 Mbit, 6 max MFDs on a network
- Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module
- NMEA 2000 Connectivity: 1x Micro-C
- SD Card Storage: 2 micro SD cards up to 32GB
Electrical:
- Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on
- Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on
- Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on
- Recommended Fuse Rating: 5A
- Supply Voltage: 12V DC (10.8-17VDC)
Environment:
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
GPS:
- GPS Receiver Channels: 16
- Update rate: 10 Hz
MFD (Multi-Function Display):
- Cartography included: C-MAP Discover OnBoard (AMER models)
- Internal Storage: 8.0 GB
- Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail
*Sidescan Fish Reveal requires S3100 module and a compatible transducer
Active Imaging 3-in-1 Transom Mount Transducer
See structure and cover with a level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan, and DownScan with FishReveal™. The high-level clarity, target separation, and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structures like rockpiles, standing timber, weedbeds, ditches, and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detail DownScan images.
Features:
- More refined detail and better range than any other imaging technology
- Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan, and DownScan
- Easier target identification with FishReveal™ Smart Target View
- Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
- Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2, and Simrad NSS evo3 and GO series displays
Environmental
- Operating temperature: -15°C to +55°C (+5°F to +131°F)
- Storage temperature: -30°C to +70°C (-22°F to +158°F)
Physical
- Cable length: 7.6 m (25 ft)
- Mounting options: Transom, flush step, and jackplate mounting
- Connector: 9-pin
Transducer
- Output: Traditional, SideScan imaging, DownScan imaging, and temperature
- Frequency: Traditional: 200 kHz/High: Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz
- Max depth: Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp; DownScan: 91 m (300 ft); SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft)
- Operating speed: Traditional: 48 knots (55 mph); DownScan and SideScan: 9 knots (10 mph)
In the Box:
- HDS PRO fishfinder/chartplotter (12-inch display screen)
- C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
- Active Imaging 3-in-1 Transom Mount Transducer
Our Part # LOW-000-16521-001 | Mfr. Part # 000-16521-001
FEATURES
FEATURES
- Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
- SolarMAX™ HD Touchscreen is viewable at extreme angles and through polarized lenses
- High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
- High-resolution ActiveTarget 2 Live Sonar ready
- FishReveal™ with SideScan view, as well as DownScan (*Requires S3100 and compatible transducer)
- Real-time mapping is available with C-MAP Genesis Live.
- Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
- Large programmable keys
- Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
- NMEA 2000, wireless and Bluetooth connectivity – plus smartphone notifications
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Lowrance |
| Manufacturer part number | 000-16521-001 |
| Cartography Brand | C-Map |
| Included Transducer | 000-14489-001 |
| Screen Size | 12" |
| Touchscreen | Yes |
| Transducer Included | Yes |
| Backlight Color | Pure white LED |
| Display Resolution | 1280 x 800 |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Bluetooth | Integrated Bluetooth 4.0 with support for Bluetooth Classic |
| Ethernet Ports | 2 x 100 Mbit, 6 max MFDs on a network |
| Connectivity WiFi | Internal 802.11b/g/n and compatible with WiFi-1 Module |
| NMEA 2000 Connectivity | 1x Micro-C |
| SD Card Storage | 2 micro SD cards up to 32GB |
| Power Consumption Max | 3.6A @ 13VDC with full backlight, sonar on |
| Power Consumption Minimum | 2.3A @ 13VDC with full backlight, sonar on |
| Power Consumption Typical | 2.3A @ 13VDC with full backlight, sonar on |
| Recommended Fuse Rating | 5A |
| Supply Voltage | 12V DC (10.8-17VDC) |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| GPS Receiver Channels | 16 |
| Update rate | 10 Hz |
| Cartography included | C-MAP Discover OnBoard (AMER models) |
| Internal Storage | 8.0 GB |
| Waypoints, Routes, Tracks | 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail |
| Operating temperature | -15°C to +55°C (+5°F to +131°F) |
| Storage temperature | -30°C to +70°C (-22°F to +158°F) |
| Cable length | 7.6 m (25 ft) |
| Mounting options | Transom, flush step, and jackplate mounting |
| Connector | 9-pin |
| Output | Traditional, SideScan imaging, DownScan imaging, and temperature |
| Frequency | Traditional: 200 kHz/High: Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz |
| Max depth | Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp; DownScan: 91 m (300 ft); SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft) |
| Operating speed | Traditional: 48 knots (55 mph); DownScan and SideScan: 9 knots (10 mph) |
| Supplier technical detail | FishReveal™ with SideScan view, as well as DownScan (*Requires S3100 and compatible transducer) |
| Supplier technical detail | *Sidescan Fish Reveal requires S3100 module and a compatible transducer |
| Supplier application or construction detail | Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2, and Simrad NSS evo3 and GO series displays |
| Supplier technical detail | Max depth: Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp; |
| Supplier technical detail | DownScan: 91 m (300 ft); |
| Supplier technical detail | SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft) |
| In The Box | HDS PRO fishfinder/chartplotter (12-inch display screen) C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter) Active Imaging 3-in-1 Transom Mount Transducer |
