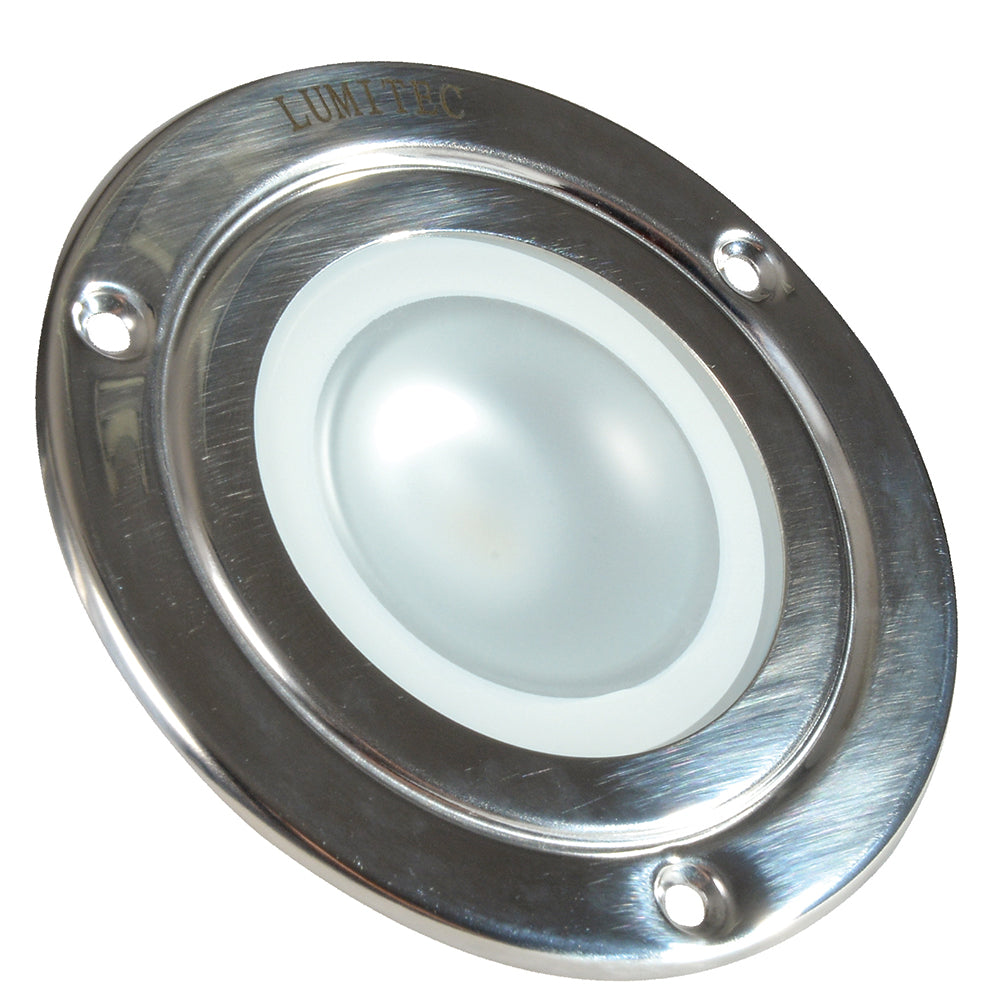

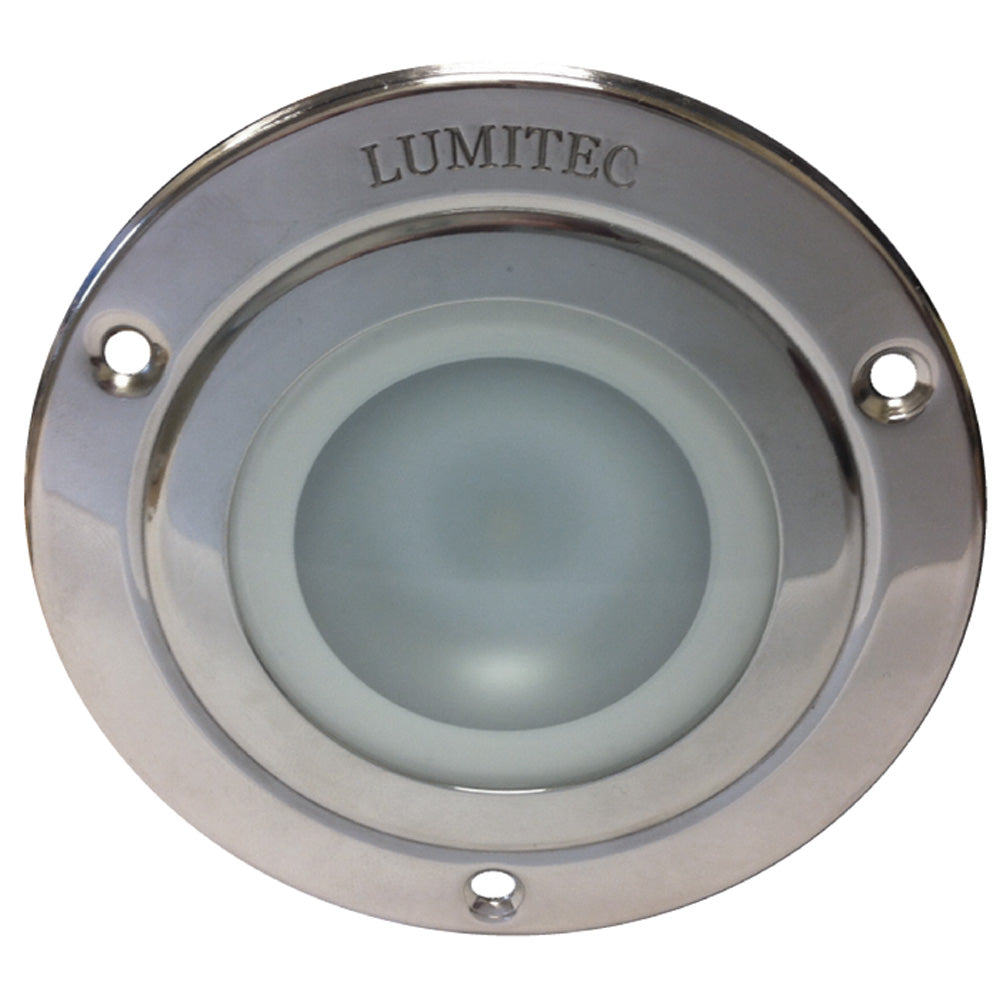

Shadow - Flush Mount Down Light - Polished Stainless Steel Finish - 3-Color Red/Blue Non Dimming with White Dimming
Shadow is versatile and tough, with incredible output greater than a 20W Halogen. Completely sealed (IP 67), Shadow is available with Lumitec's TTP technology, enabling dimming and color change with a standard 2-wire hookup and any on/off switch. Shadow is also compatible with 3rd party controllers including dimmers, flashers, and scene controllers.
Specifications:
- Voltage: 10 - 30V DC
- 12V DC Amps: 490mA
- 24V DC Amps: 250mA
- Correlated Color Temperature: 5000
- Color Rendering Index: 70+
- Lumens (White): 6
- Rated Watts: 372
- Operating Temp (°F): -31 to + 131 F
- Operating Temp (°C): -35 to +55 C

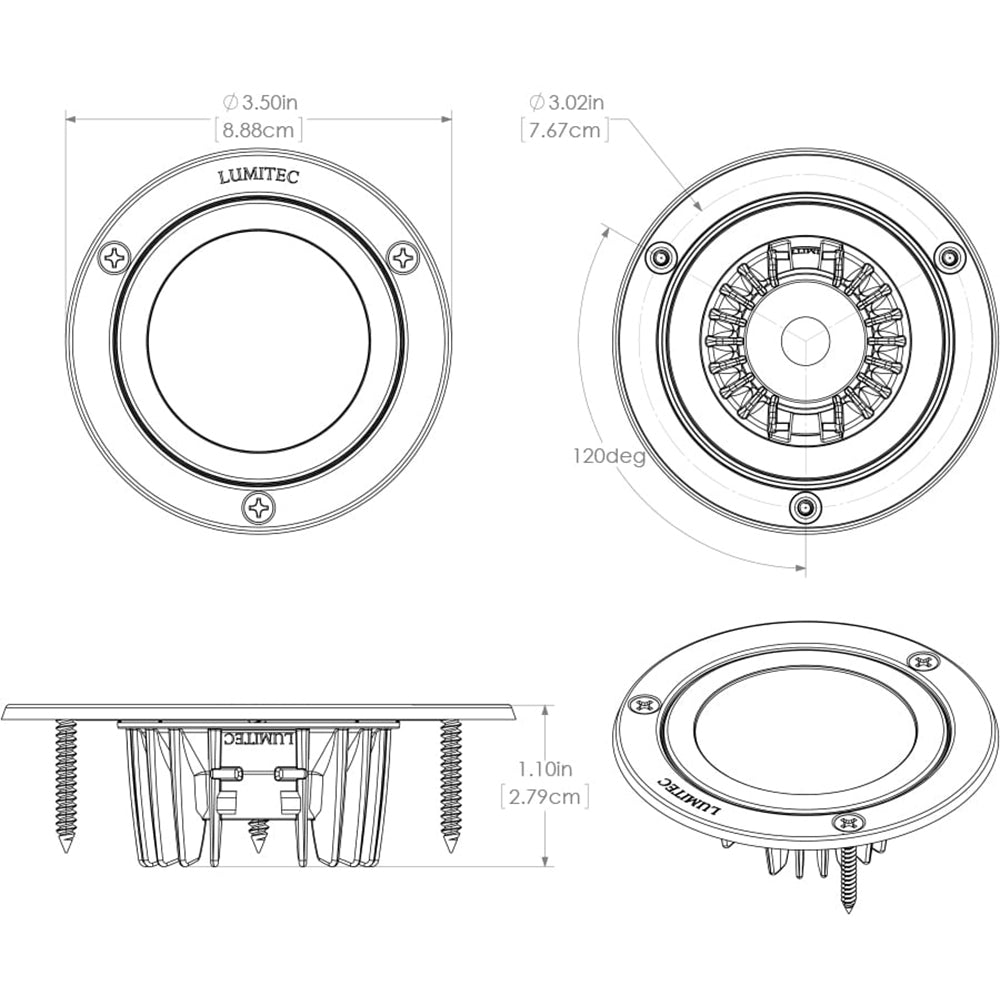

- Width: 3.50" (8.88cm)
- Height: 3.50" (8.88cm)
- Depth: 1.10" (2.79cm)
Our Part # LUM-114118 | Mfr. Part # 114118
FEATURES
FEATURES
- Voltage: 10 - 30V DC
- 12V DC Amps: 490mA
- 24V DC Amps: 250mA
- Correlated Color Temperature: 5000
- Color Rendering Index: 70+
- Lumens (White): 6
- Rated Watts: 372
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Lumitec |
| Manufacturer part number | 114118 |
| LED | Yes |
| Voltage - Input Range (Volts) | 10-30v |
| Dimming | Yes |
| Housing | Stainless |
| LED Color | White/Blue/Red |
| Voltage | 10 - 30V DC |
| Correlated Color Temperature | 5000 |
| Color Rendering Index | 70+ |
| Lumens (White) | 6 |
| Rated Watts | 372 |
| Operating Temp (°F) | -31 to + 131 F |
| Operating Temp (°C) | -35 to +55 C |
| Width | 3.50" (8.88cm) |
| Height | 3.50" (8.88cm) |
| Depth | 1.10" (2.79cm) |
| Supplier material detail | Shadow - Flush Mount Down Light - Polished Stainless Steel Finish - 3-Color Red/Blue Non Dimming with White Dimming |
| Supplier technical detail | Shadow is versatile and tough, with incredible output greater than a 20W Halogen. |
| Supplier technical detail | Shadow is also compatible with 3rd party controllers including dimmers, flashers, and scene controllers. |
| Supplier technical detail | 12V DC Amps: 490mA |
| Supplier technical detail | 24V DC Amps: 250mA |
| Product-name configuration | Flush Mount Down Light |
| Product-name configuration | Polished SS Finish |
| Product-name configuration | 3-Color Red/Blue Non Dimming w/White Dimming |
