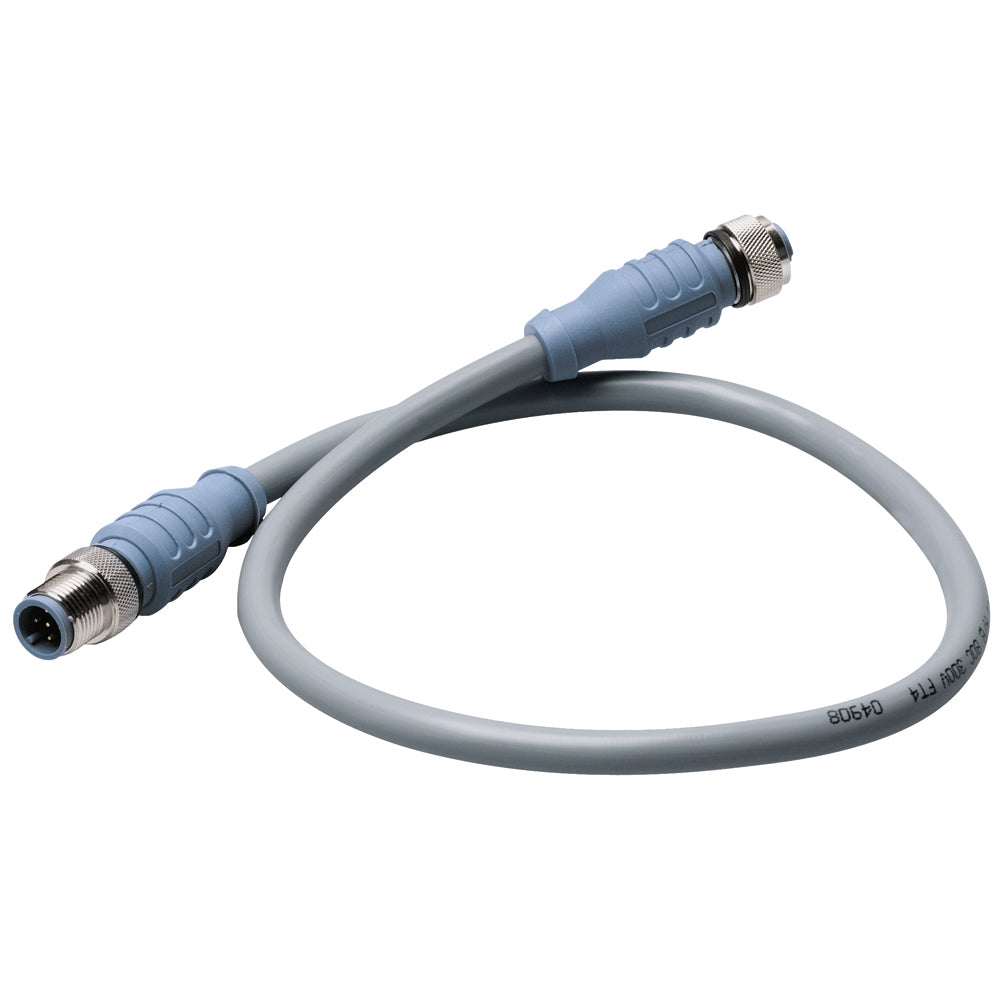

Maretron Micro Double-Ended Cordset - 1 Meter

SKU: mae-cm-cg1-cf-01-0  |  Manuf. Code: CM-CG1-CF-01.0
$45.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Micro Double-Ended Cordset - 1M

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

Our Part # MAE-CM-CG1-CF-01.0 | Mfr. Part # CM-CG1-CF-01.0

FEATURES

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59" Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V Cable

TECHNICAL INFORMATION

SpecificationValue
ManufacturerMaretron
Manufacturer part numberCM-CG1-CF-01.0
Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)1m
NMEA 2000 ConnectorsBackbone/Drop Cables
Contact Carrier Mat/ColorThermoplastic PUR/Blue-Gray
Molded Body Mat/ColorThermoplastic PUR/Blue-Gray
Contact Mat/PlatingBrass/Gold
Coupling Nut Mat/PlatingBrass/Nickel
Connector Outside Diameter0.59" Electrical
Current Rating4.0 Amps
Voltage Rating250 V Cable
Outer Jacket Mat/ColorPVC/Gray
Conductor Insulation MaterialHDPE (data pair), SRPVC (power pair)
Number of Conductors4X22 AWG, 22 AWG Drain Wire
Shielding (3-Levels)FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Protection ClassIEC IP68, NEMA 1,3,4,6P
Temperature Rating-40 deg C to 80 deg C to (-40 deg F to 176 deg F) Approvals
NMEANMEA 2000 Approved
Connector Outside Diameter0.59"
Voltage Rating250 V
Temperature Rating-40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Supplier technical detailAWM 80 deg C 300V
Supplier technical detailAWM I/II A/B 80C 300V FT4
Product-name configuration1 Meter
