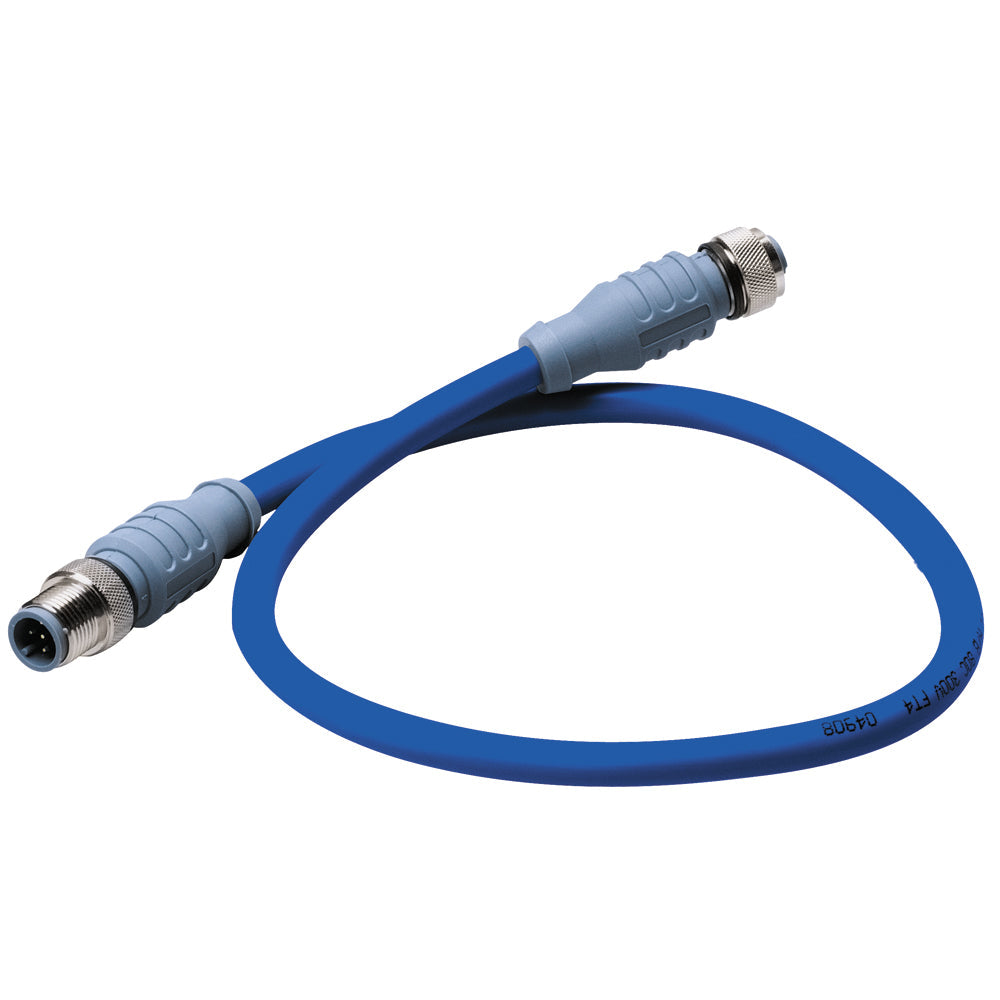

Maretron Mid Double-Ended Cordset - 4 Meter - Blue

SKU: mae-dm-db1-df-04-0  |  Manuf. Code: DM-DB1-DF-04.0
$65.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Maretron Mid Double-Ended Cordset - 4 M Blue

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    • Our Part # MAE-DM-DB1-DF-04.0 | Mfr. Part # DM-DB1-DF-04.0

    FEATURES

    • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
    • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
    • Contact Mat/Plating: Brass/Gold
    • Coupling Nut Mat/Plating: Brass/Nickel
    • Connector Outside Diameter: 0.59" Electrical
    • Current Rating: 4.0 Amps
    • Voltage Rating: 250 V Cable

    TECHNICAL INFORMATION

    SpecificationValue
    ManufacturerMaretron
    Manufacturer part numberDM-DB1-DF-04.0
    Connection GenderMale-Female
    Data InterfaceNMEA 2000
    Cable Length (Meters)4m
    NMEA 2000 ConnectorsBackbone/Drop Cables
    Contact Carrier Mat/ColorThermoplastic PUR/Blue-Gray
    Molded Body Mat/ColorThermoplastic PUR/Blue-Gray
    Contact Mat/PlatingBrass/Gold
    Coupling Nut Mat/PlatingBrass/Nickel
    Connector Outside Diameter0.59" Electrical
    Current Rating4.0 Amps
    Voltage Rating250 V Cable
    Outer Jacket Mat/ColorPVC/Gray
    Conductor Insulation MaterialPE (data pair), PVC (power pair)
    Number of Conductors2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
    Shielding (3 Levels)Foil (Overall), Foil (Power Pair), Foil (Data Pair) ENVIRONMENTAL
    Protection ClassIEC IP68, NEMA 1,3,4,6P
    Temperature Rating-40 deg C to 80 deg C to (-40 deg F to 176 deg F) APPROVALS
    NMEANMEA 2000 Approved
    IECIEC 61162-3
    Connector Outside Diameter0.59"
    Voltage Rating250 V
    Shielding (3 Levels)Foil (Overall), Foil (Power Pair), Foil (Data Pair)
    Temperature Rating-40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Supplier technical detail(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
    Supplier technical detail(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
    Product-name configuration4 Meter
    Product-name configurationBlue
