DESCRIPTION

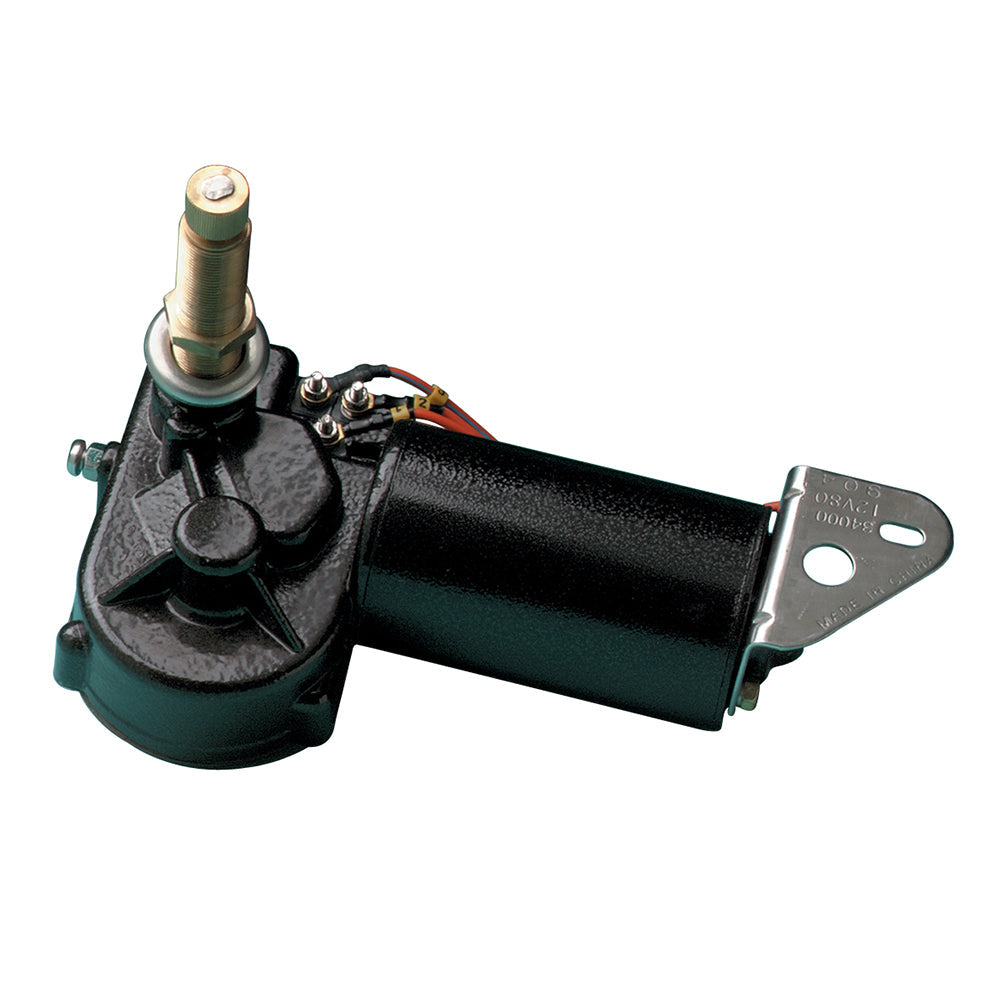

Wiper Motor MRV 12V 2.5" Shaft - 80°

The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.

Features:

  • Factory pre-set sweep of 80 or 110 degrees adjustable to 45, 60, 80 or 110 degrees
  • 0.625" diameter shaft (16 mm)
  • Available in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes 0.5" length of knurled arm fitting)
  • Corrosion-resistant casing
  • Heavy-duty motor with right angle drive
  • Two-speed motor, can be operated as one speed
  • Solid brass knurled drive nut with brass and stainless steel drive shaft
  • Adjustable right or left self parking, coast to park
  • Retail version includes 5 amp fuse and holder
  • Stainless steel fasteners and mounting bracket
  • Use with three-position switch (not included)
  • Compact size - 7.625" L x 4" W x 2" D
  • Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
  • Stall current: 11.5 to 13.0 amps
  • No load current: 0.5 to 1.2 amps

Mfr. Part # 34000

FEATURES

  • Factory pre-set sweep of 80 or 110 degrees adjustable to 45, 60, 80 or 110 degrees
  • 0.625" diameter shaft (16 mm)
  • Available in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes 0.5" length of knurled arm fitting)
  • Corrosion-resistant casing
  • Heavy-duty motor with right angle drive
  • Two-speed motor, can be operated as one speed
  • Solid brass knurled drive nut with brass and stainless steel drive shaft
  • Adjustable right or left self parking, coast to park
  • Retail version includes 5 amp fuse and holder
  • Stainless steel fasteners and mounting bracket
  • Use with three-position switch (not included)
  • Compact size - 7.625" L x 4" W x 2" D
  • Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
  • Stall current: 11.5 to 13.0 amps
  • No load current: 0.5 to 1.2 amps

TECHNICAL INFORMATION

SpecificationValue
ManufacturerMarinco
Manufacturer part number34000
Available in 3 shaft lengths1.5", 2.5" and 3.5" (includes 0.5" length of knurled arm fitting)
Stall torque109 in-lbs (125 kgf/cm: 12.3 Nm)
Stall current11.5 to 13.0 amps
No load current0.5 to 1.2 amps
Supplier technical detailWiper Motor MRV 12V 2.5" Shaft - 80°
Supplier dimension detailThe MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.
Supplier technical detailThe MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.
Supplier dimension detail0.625" diameter shaft (16 mm)
Supplier technical detail0.625" diameter shaft (16 mm)
Supplier application or construction detailAvailable in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes 0.5" length of knurled arm fitting)
Supplier dimension detailAvailable in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes 0.5" length of knurled arm fitting)
Supplier technical detailAvailable in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes 0.5" length of knurled arm fitting)
Supplier material detailSolid brass knurled drive nut with brass and stainless steel drive shaft
Supplier technical detailSolid brass knurled drive nut with brass and stainless steel drive shaft
Supplier application or construction detailRetail version includes 5 amp fuse and holder
Supplier technical detailRetail version includes 5 amp fuse and holder
Supplier material detailStainless steel fasteners and mounting bracket
Supplier technical detailStainless steel fasteners and mounting bracket
Supplier dimension detailCompact size - 7.625" L x 4" W x 2" D
Supplier technical detailCompact size - 7.625" L x 4" W x 2" D
Size or rating stated in product name2.5"
Product-name configuration80°
