Marinco Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80°
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION

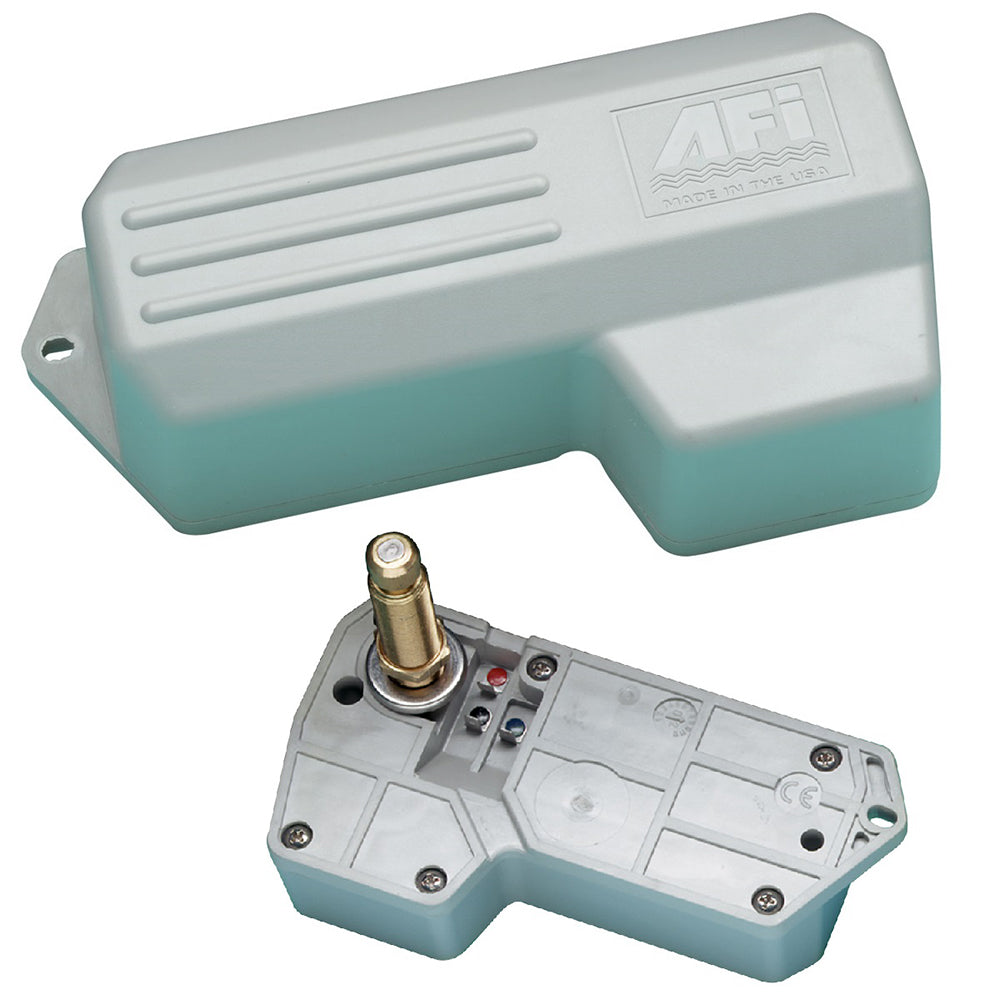

Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80°
The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.
Features:
- Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
- 0.625" diameter shaft (16 mm)
- 12 volt heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self parking
- Retail version includes 5 amp fuse and holder (on/off switch not included)
- RF shielded circuitry
- Weight: 1.75 lbs
- Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
- Measures approximately 6.625" L x 3.375"W x 2" D
- Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
- Stall current: 9.8-10.0 amps
- No load current: 0.8-1.2 amps+
Mfr. Part # 36180
FEATURES
FEATURES
- Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
- 0.625" diameter shaft (16 mm)
- 12 volt heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self parking
- Retail version includes 5 amp fuse and holder (on/off switch not included)
- RF shielded circuitry
- Weight: 1.75 lbs
- Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
- Measures approximately 6.625" L x 3.375"W x 2" D
- Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
- Stall current: 9.8-10.0 amps
- No load current: 0.8-1.2 amps+
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Marinco |
| Manufacturer part number | 36180 |
| Weight | 1.75 lbs |
| Available in two shaft lengths | 1.5" and 2.5" (includes .5" length of knurled arm fitting) |
| Stall torque | 55 in-lbs (63 kgf/cm; 6.2 Nm) |
| Stall current | 9.8-10.0 amps |
| No load current | 0.8-1.2 amps+ |
| Supplier technical detail | Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80° |
| Supplier technical detail | It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree. |
| Supplier dimension detail | 0.625" diameter shaft (16 mm) |
| Supplier technical detail | 0.625" diameter shaft (16 mm) |
| Supplier application or construction detail | Retail version includes 5 amp fuse and holder (on/off switch not included) |
| Supplier technical detail | Retail version includes 5 amp fuse and holder (on/off switch not included) |
| Supplier dimension detail | Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting) |
| Supplier technical detail | Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting) |
| Supplier dimension detail | Measures approximately 6.625" L x 3.375"W x 2" D |
| Supplier technical detail | Measures approximately 6.625" L x 3.375"W x 2" D |
| Size or rating stated in product name | 1.5" |
| Product-name configuration | 12V |
| Product-name configuration | 1.5" Shaft |
| Product-name configuration | 80° |
