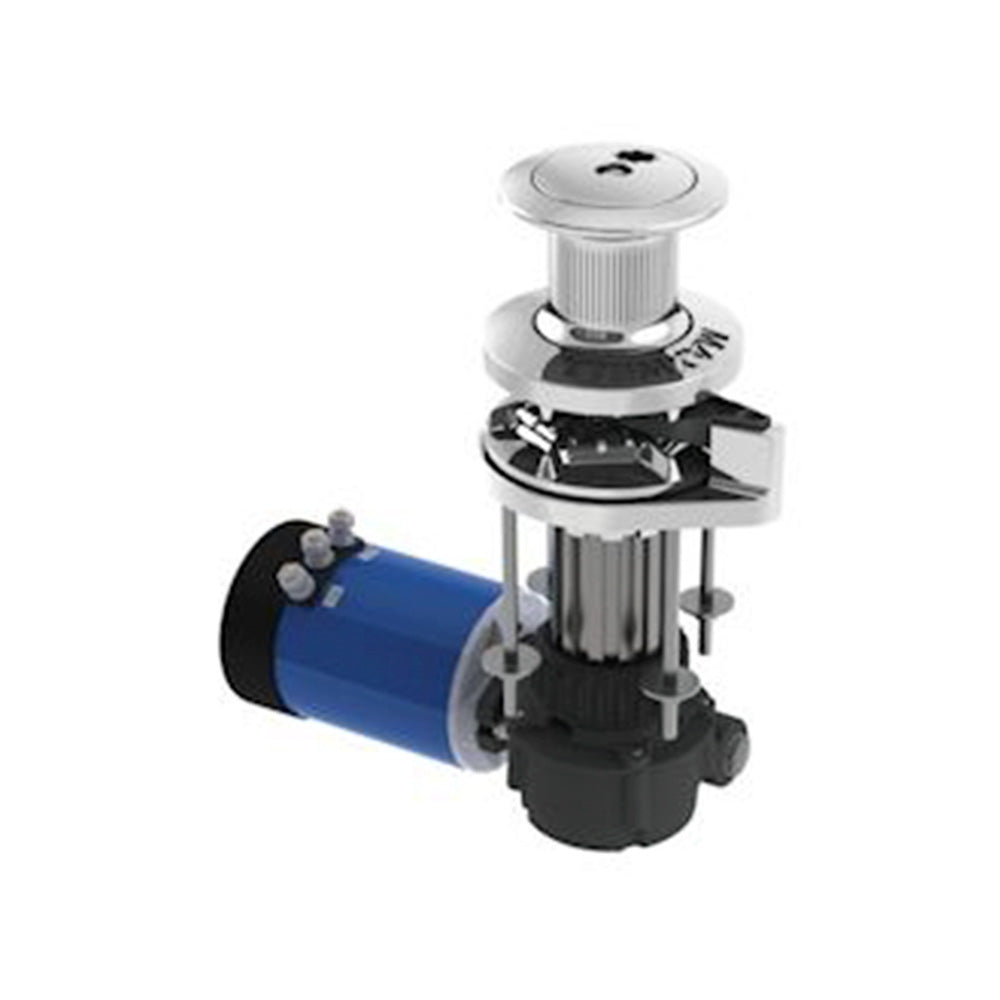

Maxwell Windlass - VW 10-10 1200W Vertical Electric 24V Gypsy + Drum 3/8" - BBB (VW101024V)

SKU: MAXVW101024V  |  Manuf. Code: VW101024V
List Price:  $4,144.51 USD
$3,315.61 USD

You save $995 today!
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  1. We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  2. No auction sites
  3. No unauthorized sellers
  4. Item must be identical, new, and in stock
Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

The Maxwell Windlass - VW 10-10 1200W Vertical Electric 24V Gypsy + Drum 3/8" - BBB #VW101024V is a versatile windlass designed for sailing boats, perfect for tight spaces in anchor lockers. It can handle a combination of chain and rope, making it flexible for various anchoring needs. Designed with ease of installation in mind, this windlass fits into its niche perfectly.

Benefits

  • Handles up to 10mm (3/8 in) chain and 16mm (5/8 in) rope.
  • Available with or without an independent warping capstan.
  • Quick and easy installation process.

Constructed to accommodate space constraints in sailing boat anchor lockers, this windlass is built for durability and reliability. It runs on a powerful 1200W 24V electric motor, ensuring efficient operation. Compatible with both rope and chain rodes, it provides flexibility for different anchoring setups.

Our Part # MAXVW101024V | Mfr. Part # VW101024V

FEATURES

  • Provides the versatility of operating two anchors from one winch.
  • Functional rope hauling from any direction using independent MAX-grip™ snag-free warping drum with clutch disengagement of chainwheel for positive control of all ropes.
  • Permits use of traditional shackle and thimble rope and chain connection.
  • Allows alternative mounting horizontally on a fore and aft bulkhead inside chain locker for below deck installation.
  • High-quality finish on above deck components, manufactured from marinegrade 316 stainless steel and chromed bronze, for long term durability.
  • Cone type brake/clutch mechanism permits manual inFree Fall in anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe operator control.
  • Chain wheel locking pawl (except on VW500).
  • Simplified through deck installation by modular design and precise alignment of gearbox to the topworks utilising marine-grade stainless steel bolts.
  • Marine grade anodized aluminium gearbox and spacer on 500, VW10, 1000, 1500, 2500 and 3500 models.
  • Heavy duty, dual direction motor, designed for marine winches.
  • Easily disassembled for servicing.

TECHNICAL INFORMATION


DescriptionImperialMetric
Maximum Pull/Lift1870.00 lb.850.00 kg.
Static Hold3300.00 lb.1500.00 kg.
Chain Short Link3/8 in.10.00 mm.
Line Speed (Normal Working)79.00 ft./min.24.00 m./min.
Power Supply (DC)12 or 24 V.
Motor (Watts)1200 W.
Net Weight (Electric)44.00 lb.20.00 kg.
