Muir Windlass - Storm SSC2200, 12V, Capstan, 3/8"BBB Gypsy, 12V, 1500W (M2200C12-3/8B)

Name: Muir Windlass - Storm SSC2200, 12V, Capstan, 3/8"BBB Gypsy, 12V, 1500W (M2200C12-3/8B)
Brand: Muir
SKU: MUI-M2200C12-38B
Price: 3580.37 USD
Availability: InStock

SKU: MUI-M2200C12-38B | Manuf. Code: M2200C12-3/8B

~~List Price: $3,978.19 USD~~

$3,580.37 USD

You save $398 today!

Free Shipping for US Continental orders over $145. - View details.

Questions? Chat with our Tech Team

Backed by MAURIPRO Support.

DESCRIPTION

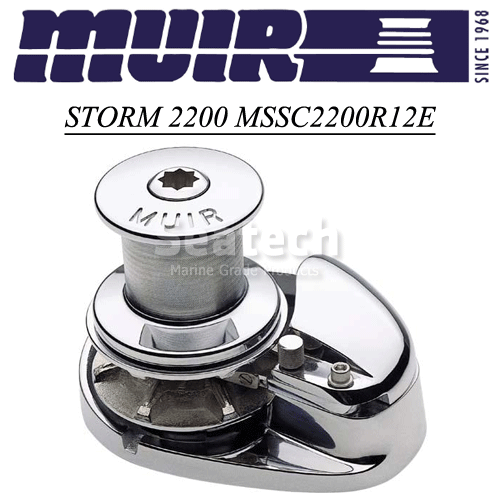

The Muir Storm SSC2200 is a heavy-duty vertical windlass. It delivers impressive lifting capacity with a polished stainless steel deck unit. This 12V Capstan model features an independent warping drum for secondary rope handling and is fitted with a 3/8" BBB Gypsy for reliable rope-chain operation. Engineered for maximum durability, the SSC2200 features a powerful dual-direction motor and a robust, self-aligning gearbox. The 316 stainless steel construction and manual override capability provide the reliability and peace of mind required for offshore cruising.

Our Part # MUI-M2200C12-38B | Mfr. Part # M2200C12-3/8B

FEATURES

Name	Metric	Imperial
Version	Capstan
Standard Equipment	RCMS, 2 x Footswitches, Solenoid Control Box, Handle
Motor Wattage	1500W	2.01 hp
Vessel Length	12 - 15 m	38 - 48 ft
Max Load	1100 kg	2420 lb
Work Load	250 kg	550 lb
Approximate Boat Size	12 - 15 m	40 - 49 ft
Max Line Speed	30 m/min	98 ft/min
Amperes Working Load	150 a
Amps Work Load	120 a
Approximate Ship Weight	29 kg	64 lb

{"id":10040276943154,"title":"Muir Windlass - Storm SSC2200, 12V, Capstan, 3\/8\"BBB Gypsy, 12V, 1500W (M2200C12-3\/8B)","handle":"mui-m2200c12-38b","description":"\u003cp\u003eThe Muir Storm SSC2200 is a heavy-duty vertical windlass. It delivers impressive lifting capacity with a polished stainless steel deck unit. This 12V Capstan model features an independent warping drum for secondary rope handling and is fitted with a 3\/8\" BBB Gypsy for reliable rope-chain operation. Engineered for maximum durability, the SSC2200 features a powerful dual-direction motor and a robust, self-aligning gearbox. The 316 stainless steel construction and manual override capability provide the reliability and peace of mind required for offshore cruising.\u003c\/p\u003e\n\u003cp\u003eOur Part # \u003cspan class=\"product-sku__value\"\u003eMUI-M2200C12-38B\u003c\/span\u003e | Mfr. Part # \u003cspan\u003eM2200C12-3\/8B\u003c\/span\u003e\u003c\/p\u003e","published_at":"2025-11-12T09:36:32-05:00","created_at":"2025-11-12T09:36:31-05:00","vendor":"Muir","type":"Anchor Windlass","tags":["UPO7A0SLV505"],"price":358037,"price_min":358037,"price_max":358037,"available":true,"price_varies":false,"compare_at_price":397819,"compare_at_price_min":397819,"compare_at_price_max":397819,"compare_at_price_varies":false,"variants":[{"id":50621404840242,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"MUI-M2200C12-38B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Muir Windlass - Storm SSC2200, 12V, Capstan, 3\/8\"BBB Gypsy, 12V, 1500W (M2200C12-3\/8B)","public_title":null,"options":["Default Title"],"price":358037,"weight":36320,"compare_at_price":397819,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.mauripro.com\/cdn\/shop\/files\/MUIR_-_2025-12-03T115845.306.jpg?v=1764781154","\/\/www.mauripro.com\/cdn\/shop\/files\/MUI-M2200C12-38B_024fb455-8cff-47e6-91a6-1a57b7c0ee2f.png?v=1778859050"],"featured_image":"\/\/www.mauripro.com\/cdn\/shop\/files\/MUIR_-_2025-12-03T115845.306.jpg?v=1764781154","options":["Title"],"media":[{"alt":null,"id":42763065753906,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.mauripro.com\/cdn\/shop\/files\/MUIR_-_2025-12-03T115845.306.jpg?v=1764781154"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.mauripro.com\/cdn\/shop\/files\/MUIR_-_2025-12-03T115845.306.jpg?v=1764781154","width":1000},{"alt":null,"id":43730746179890,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/www.mauripro.com\/cdn\/shop\/files\/MUI-M2200C12-38B_024fb455-8cff-47e6-91a6-1a57b7c0ee2f.png?v=1778859050"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/www.mauripro.com\/cdn\/shop\/files\/MUI-M2200C12-38B_024fb455-8cff-47e6-91a6-1a57b7c0ee2f.png?v=1778859050","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe Muir Storm SSC2200 is a heavy-duty vertical windlass. It delivers impressive lifting capacity with a polished stainless steel deck unit. This 12V Capstan model features an independent warping drum for secondary rope handling and is fitted with a 3\/8\" BBB Gypsy for reliable rope-chain operation. Engineered for maximum durability, the SSC2200 features a powerful dual-direction motor and a robust, self-aligning gearbox. The 316 stainless steel construction and manual override capability provide the reliability and peace of mind required for offshore cruising.\u003c\/p\u003e\n\u003cp\u003eOur Part # \u003cspan class=\"product-sku__value\"\u003eMUI-M2200C12-38B\u003c\/span\u003e | Mfr. Part # \u003cspan\u003eM2200C12-3\/8B\u003c\/span\u003e\u003c\/p\u003e"}

KNOWLEDGE BASE

Click here for the Chainwheel Chart.

Click here for the Owners Manual.

TECHNICAL INFORMATION

Description	Imperial	Metric
Voltage	12 V	12 V
Max Load	2200 lb	998.0 kg
Retrieval Speed	70 ft/min	21.3 m/min
Rope Size	3/8 in	9.5 mm
Chain Size	1/4 in	6.0 mm
Drum Diameter	2 1/2 in	63.5 mm
Overall Height	7 1/2 in	190.5 mm
Overall Length	10 1/4 in	260.4 mm
Overall Width	9 1/2 in	241.3 mm
Weight	20.0 lb	9.1 kg
Wattage	1500W	1500W
Size	8 in	203.2 mm
