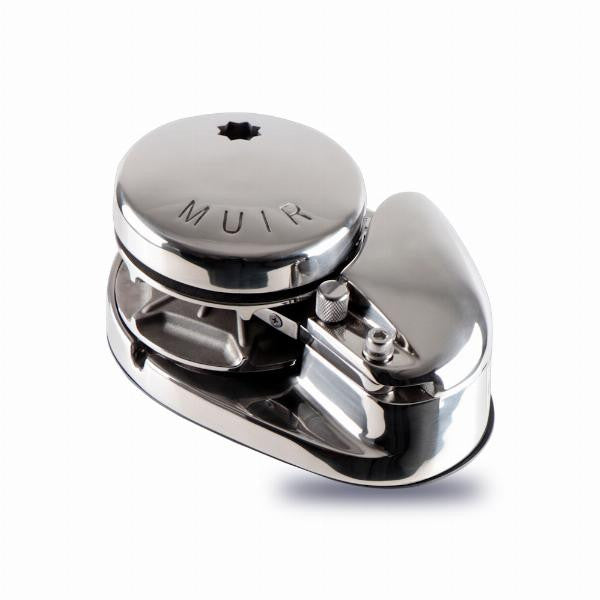

Muir Horizontal Windlass - Jaguar, 24V, 7/16"HT Gypsy, 1700W

SKU: MUI-MH350024-716H  |  Manuf. Code: MH350024-7/16H
List Price:  $7,658.69 USD
$6,430.00 USD
16% off List Price. You save $1,229.
Oversize Item: Special handling required for delivery.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

The Muir Jaguar Horizontal Windlass is engineered for superior performance on large vessels. This powerful 24V model features a heavy-duty motor and gearbox, all housed in a rugged above-deck unit built from polished 316 stainless steel. It's designed for maximum durability and reliability in demanding offshore conditions. This windlass includes a capstan for line handling and a gypsy engineered for 7/16" HT chain.

Our Part # MUI-MH350024-716H | Mfr. Part # MH350024-7/16H

FEATURES
NameMetricImperial
VersionCompact
Finish White Powder Coated Aluminum
Standard EquipmentRCMS, 2 x Footswitches, Solenoid Control Box, Handle
Motor Wattage1500 W2.01 hp
Vessel Length14 - 20 m45 - 65 ft
Max Load1650 kg3630 lb
Work Load400 kg800 lb
Max Line Speed28 m/min60 ft/min
Approximate Boat Size14 - 20 m43 - 65 ft
Amperes Working Load100 a
Amps Work Load85 a
Approximate Ship Weight58 kg128 lb

TECHNICAL INFORMATION

DescriptionImperialMetric
Overall Length3 1/2 in8.9 cm
Weight0.02 lb0.01 kg
Voltage24V24V
Wattage1700W1700W
Size16 in406.4 mm

KNOWLEDGE BASE

Muir Jaguar HR2500/HR3500 Windlass — Deck TemplateMuir's HR3500 Jaguar deck template (RCMS, single gypsy pattern 131, 10 mm HT chain), with the HR2500 and HR3500.View Manual →

Click here for the Chainwheel Chart.

Click here for the Owners Manual.
