Help protect your Max-Prop with a Zinc Anode. Make sure that you always keep the Anodes in good condition. They must be replaced at least once a year.

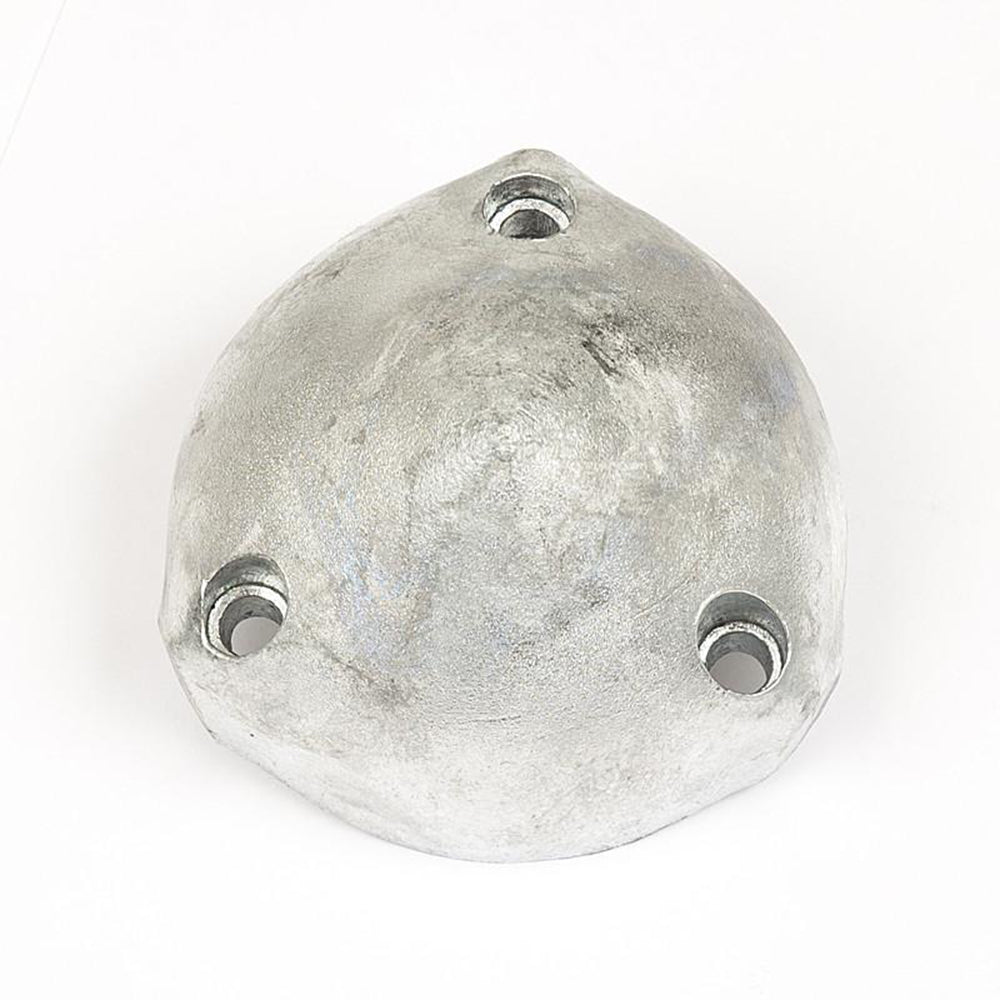

The Max-Prop Anode has a metal ring molded into it. This metal ring goes around the entire diameter where the screws attach the Anode to the propeller. This ring disburses the electrical current through the entire Anode giving it a much longer life.
Even with the metal ring PYI recommends when installing the zinc that you clean the flat surface of the zinc and the back of the propeller so that you will have good contact between the zinc and the prop. This will greatly increase the life of the Anode.
We only sell Mil Spec Anodes. Individual Anodes do not come with screws.
It's always a good idea to have spare zinc anodes on hand, you never know when you need them. We do offer Zinc Anode Kits which consist of three zinc anodes and all the necessary screws. This is a great cost effective solution versus buying multiple zinc anodes individually.
Our Part # MXP-12-5ZI-N | Max-Prop Part # 12-5ZIN
Technical Information
Description
Imperial
Metric
63 mm. - Hub Dia.
Fits Shaft Dia.
3/4 to 1 1/8 in.
22.0 to 28.0 mm.
Zinc Bolt Pattern
3 bolts with 1.82 in. or 1.7 in. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
3 bolts with 4.6 cm. or 4.3 cm. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
90 mm. - Hub Dia.
Fits Shaft Dia.
3/4 to 1 1/4 in.
22.0 to 30.0 mm.
Zinc Bolt Pattern
3 bolts with 1.82 in. or 1.7 in. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
3 bolts with 4.6 cm. or 4.3 cm. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
70 mm. - Hub Dia.
Fits Shaft Dia.
1 1/8 to 1 3/8 in.
30.0 to 35.0 mm.
Zinc Bolt Pattern
3 bolts with 1.97 in. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
3 bolts with 5.0 cm. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
99 mm. - Hub Dia.
Fits Shaft Dia.
1 1/4 to 1 1/2 in.
30.0 to 40.0 mm.
Zinc Bolt Pattern
3 bolts with 1.97 in. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
3 bolts with 5.0 cm. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
83 mm. - Hub Dia.
Fits Shaft Dia.
1 1/2 to 1 3/4 in.
35.0 to 45.0 mm.
Zinc Bolt Pattern
3 bolts with 2.5 in. or 2.74 in. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
3 bolts with 6.35 cm. or 6.96 cm. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
110 mm. - Hub Dia.
Fits Shaft Dia.
1 1/2 to 1 3/4 in.
35.0 to 45.0 mm.
Zinc Bolt Pattern
3 bolts with 2.5 in. or 2.74 in. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
3 bolts with 6.35 cm. or 6.96 cm. center to center on the bolts. Each zinc has 6 holes to match the two different three-hole patterns.
100 mm. - Hub Dia.
Fits Shaft Dia.
1 3/4 to 2.0 in.
45.0 to 50.0 mm.
Zinc Bolt Pattern
3 bolts with 2.875 in. center to center on the bolts.
3 bolts with 7.30 cm. center to center on the bolts.
125 mm. - Hub Dia.
Fits Shaft Dia.
2.0 to 2 1/2 in.
50.0 to 68.0 mm.
Zinc Bolt Pattern
3 bolts with 3.375 in. center to center on the bolts.
3 bolts with 8.57 cm. center to center on the bolts.
126 mm. - Hub Dia.
Fits Shaft Dia.
1 3/4 to 2.0 in.
45.0 to 50.0 mm.
Zinc Bolt Pattern
3 bolts with 2.70 in. center to center on the bolts.
3 bolts with 6.86 cm. center to center on the bolts.
160 mm. - Hub Dia.
Fits Shaft Dia.
3.0 to 3 1/2 in.
68.0 to 80.0 mm.
Zinc Bolt Pattern
3 bolts with 4.45 in. center to center on the bolts.
3 bolts with 11.30 cm. center to center on the bolts.
