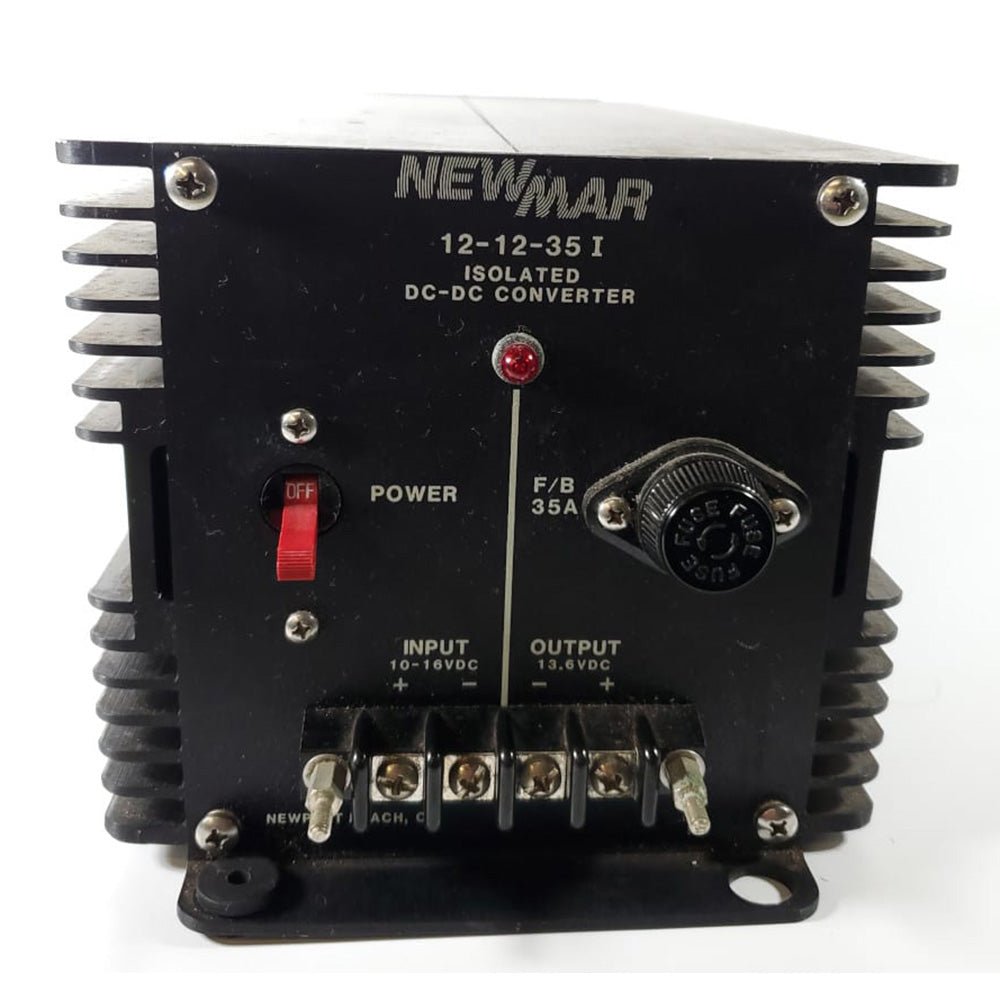

Newmar 12-12-35I DC Converter

SKU: nwp-12-12-35i  |  Manuf. Code: 12-12-35I
$2,227.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

12-12-35I DC Converter

This isolated series provides voltage conversion as well as input/output isolation, allowing the use of negative ground gear in positive or floating ground battery systems, or vice versa.

Using an isolated converter as a voltage stabilizer on 12- or 24-volt systems can solve conducted noise and interference problems on sensitive DC-powered communication, navigation systems, and DC microprocessor-based devices.

Features:

  • Wide range of input voltage
  • Precise output voltage regulation
  • Reverse polarity
  • Input fuse/output fuse
  • Total input/output isolation, pos. or neg. ground
  • Current-limiting, short-circuit-proof output
  • Automatic resetting of the thermal shutdown
  • High/low input voltage shutdown
  • Polyurethane conformal coating on PC board
  • Power ON light
  • Rugged case designed for high-vibration applications

Specifications:

  • Input Voltage: 10-16
  • Max Input Amps: 56
  • Output Voltage: 13.6
  • Output Amps (Intermittent): 35
  • Output Amps (Continuous): 20
  • Case Size (H x W x D): 6 x 6.8 x 16.5 inches (15.2 x 17.3 x 41.9 centimeters)
  • Weight: 12 lb. (5.5 kg)
  • Output: 13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC (or specify)
  • Ripple: 150 mV P-P maximum
  • Regulation: 1% Line/Load
  • Duty Cycle Ratings: Intermittent – 20 minutes max on time, 20% duty. current limit set at approx. 105% of the intermittent rating. Continuous – 24 hours, 100% duty
  • Idle Current: Less than 100 mA (including power “ON” light )
  • Operating Temp: 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C. Thermal shutdown @ 70 degrees C Case Temperature
  • Switching Frequency: 40 kHz
  • Efficiency: 85% – Typical
  • Isolation – Output/Chassis; Input/chassis: 250 VDC

Mechanical Specifications:

  • Anodized aluminum heat sink case
  • Front panel terminal block
  • Heavy-duty mounting flange
  • conformal-coated PC board

Options:

  • Operation as battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)
  • Extreme vibration mounting kit. (Information below)

Option: Extreme Vibration Mounting Kit

The Extreme Vibration Mounting Kit is available to protect NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles.

The kit replaces the standard vibration kit provided with the unit and fits into the unit’s mounting flange to act as a ‘super shock absorber’ for electronics in high-vibration applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify Kit L for units that weigh 2 -15 lbs. and Kit H for units that weigh 16 – 70 lbs.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Our Part # NWP-12-12-35I | Mfr. Part # 12-12-35I

FEATURES

  • Wide range of input voltage
  • Precise output voltage regulation
  • Reverse polarity
  • Input fuse/output fuse
  • Total input/output isolation, pos. or neg. ground
  • Current-limiting, short-circuit-proof output
  • Automatic resetting of the thermal shutdown
  • High/low input voltage shutdown
  • Polyurethane conformal coating on PC board
  • Power ON light
  • Rugged case designed for high-vibration applications

TECHNICAL INFORMATION

SpecificationValue
ManufacturerNewmar Power
Manufacturer part number12-12-35I
Input Voltage10-16
Max Input Amps56
Output Voltage13.6
Output Amps (Intermittent)35
Output Amps (Continuous)20
Case Size (H x W x D)6 x 6.8 x 16.5 inches (15.2 x 17.3 x 41.9 centimeters)
Weight12 lb. (5.5 kg)
Output13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC (or specify)
Ripple150 mV P-P maximum
Regulation1% Line/Load
Duty Cycle RatingsIntermittent – 20 minutes max on time, 20% duty. current limit set at approx. 105% of the intermittent rating. Continuous – 24 hours, 100% duty
Idle CurrentLess than 100 mA (including power “ON” light )
Operating Temp0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C. Thermal shutdown @ 70 degrees C Case Temperature
Switching Frequency40 kHz
Efficiency85% – Typical
Isolation – Output/Chassis; Input/chassis250 VDC
OptionExtreme Vibration Mounting Kit
Supplier application or construction detailRugged case designed for high-vibration applications
Supplier technical detailContinuous – 24 hours, 100% duty
Supplier technical detailAnodized aluminum heat sink case
Supplier technical detailThe kit replaces the standard vibration kit provided with the unit and fits into the unit’s mounting flange to act as a ‘super shock absorber’ for electronics in high-vibration applications.
