DESCRIPTION

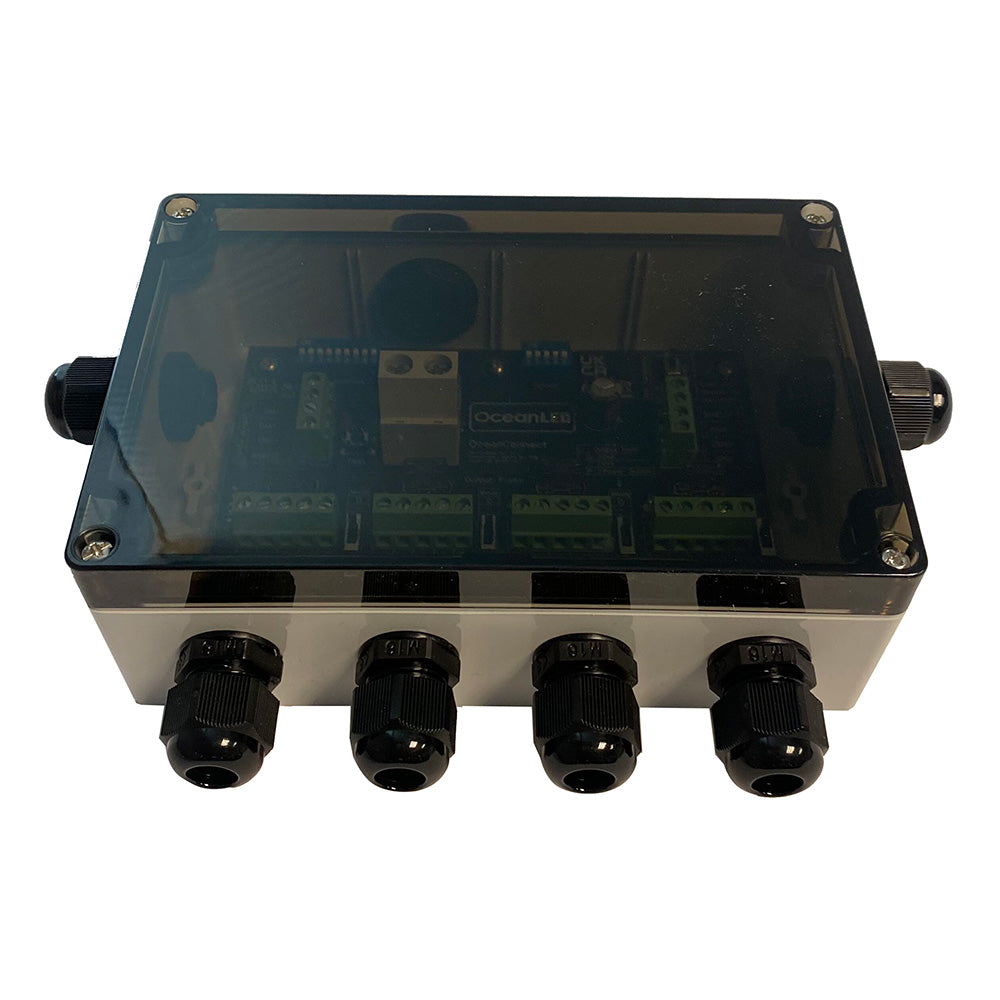

OceanConnect Junction Box

The OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (9–32V) junction box.

The OceanConnect provides one power unit and four individually switched fused power outputs (6 amps per output) to connect DC-powered lights or other DC-switched units. The unit also supports powering and individual addressing of up to four DMX-controlled OceanLED X-Series lights.

Contents:

  • 1x OceanConnect unit, including 4x 7.5A blade fuses
  • 4x mounting screws
  • 1x twin entry cable grommet
  • 4x blanking plugs

Specifications:

  • Voltage: 12/24V DC (max 32V DC)
  • Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out
  • Power Input Terminals Wire Gauge: 8-20 AWG
  • DMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG
  • Light Outputs: DMX & Power- 4 x individual fused 6 Amp each max
  • DMX Input: 1x DMX Input (to connect the DMX controller)
  • DMX Output: 1x DMX Output (to link junction boxes in the chain)
  • DMX Terminator: Onboard DMX terminator with an on/off switch

Physical Specifications

  • Dimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3")
  • Enclosure: IP66-robust polycarbonate
  • Weight: 270g

Mfr. Part # 013204

FEATURES

  • 1x OceanConnect unit, including 4x 7.5A blade fuses
  • 4x mounting screws
  • 1x twin entry cable grommet
  • 4x blanking plugs
  • Voltage: 12/24V DC (max 32V DC)
  • Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out
  • Power Input Terminals Wire Gauge: 8-20 AWG

TECHNICAL INFORMATION

SpecificationValue
ManufacturerOceanLED
Manufacturer part number013204
Voltage12/24V DC (max 32V DC)
Input/Output Cable Glands1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out
Power Input Terminals Wire Gauge8-20 AWG
DMX In/Out, and Lights Out Terminals Wire Gauge12-28 AWG
Light OutputsDMX & Power- 4 x individual fused 6 Amp each max
DMX Input1x DMX Input (to connect the DMX controller)
DMX Output1x DMX Output (to link junction boxes in the chain)
DMX TerminatorOnboard DMX terminator with an on/off switch
Dimensions (Including Cable Glands)228mm x 174mm x 60mm (9" x 6.8" x 2.3")
EnclosureIP66-robust polycarbonate
Weight270g
Supplier technical detailThe OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (9–32V) junction box.
Supplier technical detail1x OceanConnect unit, including 4x 7.5A blade fuses
Supplier technical detailVoltage: 12/24V DC (max 32V DC)
Supplier technical detailPower Input Terminals Wire Gauge: 8-20 AWG
Supplier technical detailDMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG
Supplier dimension detailDimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3")
Supplier technical detailDimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3")
