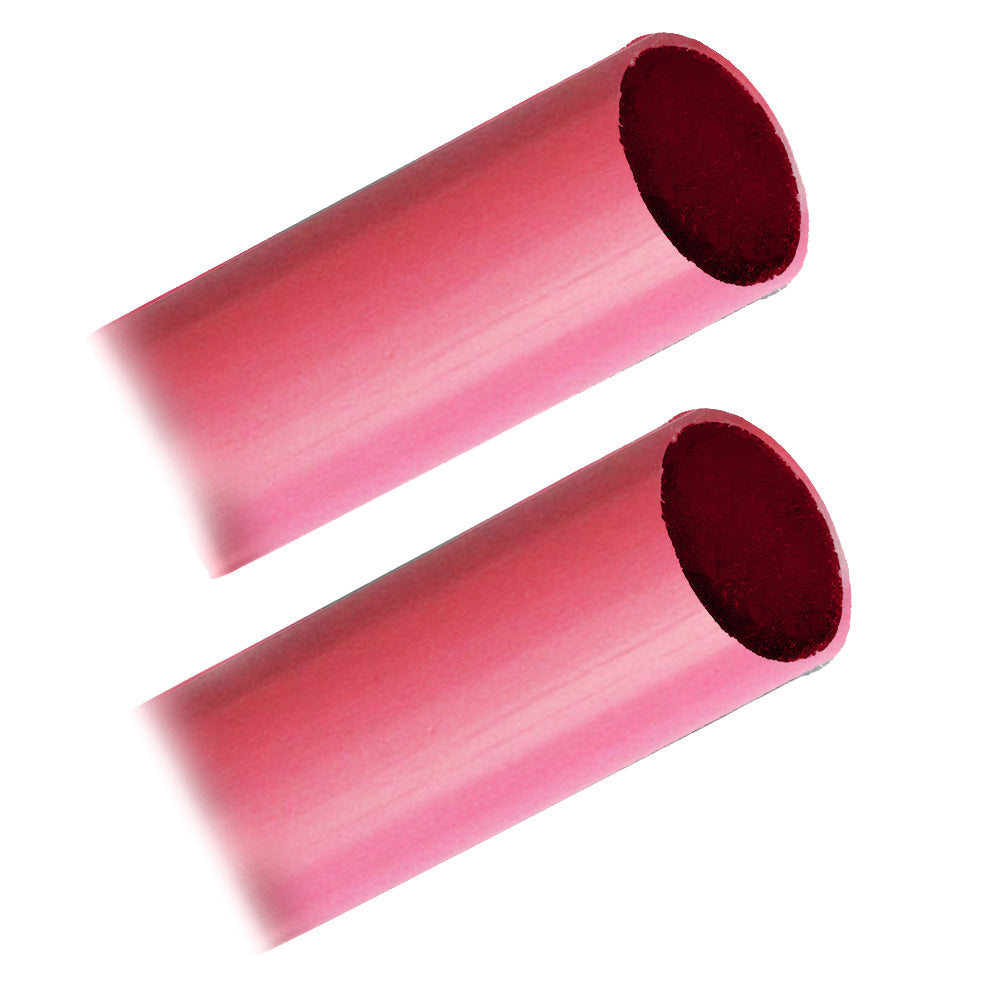

Pacer Battery Cable Heavy Wall Heat Shrink Tubing - 1" x 12" - Red (2-Pieces)

SKU: pac-bhw1-12rd-2  |  Manuf. Code: BHW1-12RD-2
$20.76 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Battery Cable Heavy Wall Heat Shrink Tubing - 1" x 12" - Red (2-Pieces)

BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated.  When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic.  Insulation varies with different types of wires, different diameters or tubing may be required.  When choosing a size, consider any components or connectors that may need to be covered.

Features:

  • Highly abrasion and impact-resistant
  • Easy installation, shrinks when heated over 120 °C
  • The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
  • A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
  • Any connection in harsh conditions
  • Adhesive lining provides a barrier against contaminants
  • Excellent resistance to acids and alkalis
  • Good resistance to fuel, oil, and solvents

Applications:

  • Splice sealing
  • Primary insulation
  • Cable/jacket repair
  • Direct burial/submersible
  • Strain relief

Specifications:

  • Expanded Inner Diameter: 1.1"
  • Recovered Inner Diameter: 0.367"
  • Application Range AWG: 1/0 - 4/0 (.40 - .95)
  • Recovered Wall Thickness: 0.12"

Compliances:

  • MIL-I-23053/15 Class 2

Mfr. Part # BHW1-12RD-2

FEATURES

  • Highly abrasion and impact-resistant
  • Easy installation, shrinks when heated over 120 °C
  • The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
  • A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
  • Any connection in harsh conditions
  • Adhesive lining provides a barrier against contaminants
  • Excellent resistance to acids and alkalis
  • Good resistance to fuel, oil, and solvents

TECHNICAL INFORMATION

SpecificationValue
ManufacturerPacer
Manufacturer part numberBHW1-12RD-2
TypeHeat Shrink
Expanded Inner Diameter1.1"
Recovered Inner Diameter0.367"
Application Range AWG1/0 - 4/0 (.40 - .95)
Recovered Wall Thickness0.12"
Supplier dimension detailBattery Cable Heavy Wall Heat Shrink Tubing - 1" x 12" - Red (2-Pieces)
Supplier technical detailBattery Cable Heavy Wall Heat Shrink Tubing - 1" x 12" - Red (2-Pieces)
Supplier material detailThe thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
Supplier technical detailThe thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
Supplier technical detailExpanded Inner Diameter: 1.1"
Supplier technical detailRecovered Inner Diameter: 0.367"
Supplier technical detailRecovered Wall Thickness: 0.12"
ApplicationsSplice sealing Primary insulation Cable/jacket repair Direct burial/submersible Strain relief
Size or rating stated in product name1"
Size or rating stated in product name12"
Product-name configuration1" x 12"
Product-name configurationRed (2-Pieces)
