Pacer DT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position)

SKU: pac-tdt04f-8rp  |  Manuf. Code: TDT04F-8RP
$13.70 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

DT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

  • Packs include all parts needed to assemble a connector
  • One to two extra terminals
  • Cavity plugs to seal open circuits

Applications:

  • Wire-to-wire applications
  • Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

  • Ingress Protection (IP) Level: IP68 and IP6K9K
  • EU RoHS/ELV
  • Standard UL-94 Recognized

Characteristics:

  • Wedge locks ensure contact alignment and retention
  • Redundant Silicone Seals
  • Hand-insertable and removable contacts

Technical Specifications:

  • Number of Cavities: 8
  • Housing: Rectangular receptacle, plastic reinforced with glass fiber
  • Contact Size: 16 (13 amp)
  • Wire Size: 14 AWG
  • Holds Pin/Socket: Pins
  • Operating Temperature: -55°C to 125°C

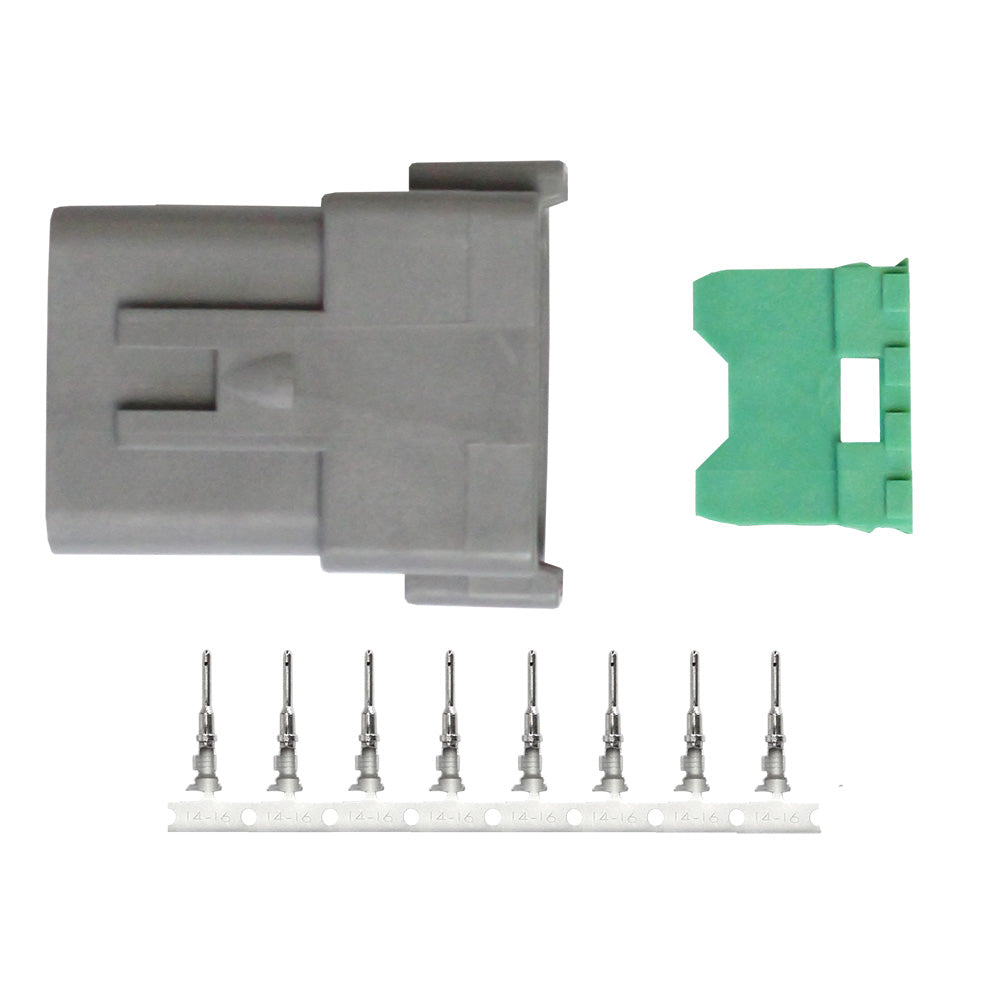

Contents:

  • (1) 8 pos. receptacle
  • (1) 8 pos. wedge lock
  • (10) pins
  • (4) cavity plugs

Our Part # PAC-TDT04F-8RP | Mfr. Part # TDT04F-8RP

FEATURES

  • Packs include all parts needed to assemble a connector
  • One to two extra terminals
  • Cavity plugs to seal open circuits

TECHNICAL INFORMATION

SpecificationValue
ManufacturerPacer
Manufacturer part numberTDT04F-8RP
Ingress Protection (IP) LevelIP68 and IP6K9K
Number of Cavities8
HousingRectangular receptacle, plastic reinforced with glass fiber
Contact Size16 (13 amp)
Wire Size14 AWG
Holds Pin/SocketPins
Operating Temperature-55°C to 125°C
Supplier technical detailDT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position)
Supplier technical detailPacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires.
Supplier technical detailThe DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell.
Supplier application or construction detailPacks include all parts needed to assemble a connector
ApplicationsWire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality
Product-name configuration14-18 AWG (8 Position)
