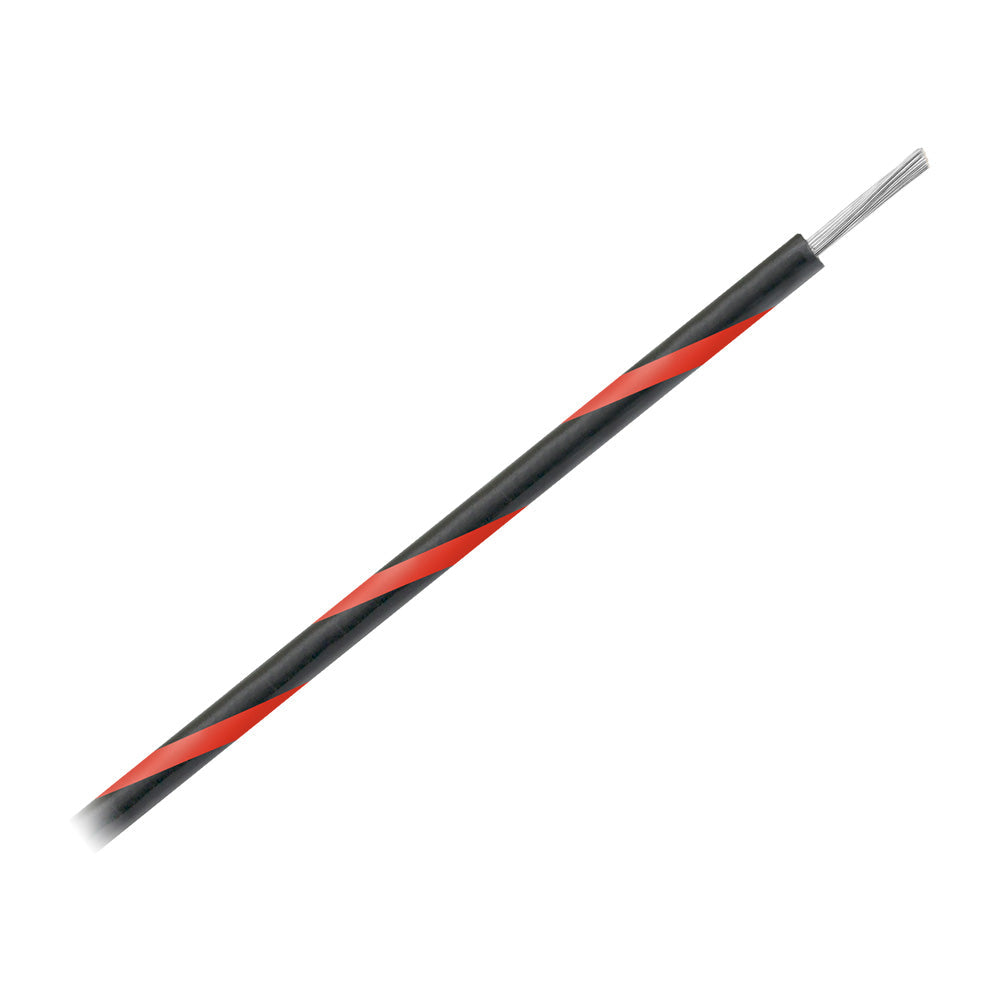

16 AWG Gauge Striped Marine Wire 1000' Spool - Black with Red Stripe
Striped wire is great for situations where someone is dealing with a large number of wires. Using striped wire makes identification easier. This, in turn, can increase job efficiency. All of Pacer's 16 AWG striped marine wire is manufactured in Sarasota, FL, USA, from Type III Class K tinned copper. During the production process, the copper conductors are jacketed with PVC insulation. This jacket is designed to be durable and flexible. All of Pacer's primary striped wire meets the requirements and standards of UL, ABYC, and NMMA.
How many options of 16 AWG striped marine wire does Pacer offer? The most important thing when selecting the proper striped wire is choice. By offering an enormous section, users are guaranteed to find the perfect choice. Currently, there are over 100 possible combinations of 16 AWG striped marine wires. Have a question about striped marine wire? Contact a Pacer expert today. This particular black marine wire has a red stripe and comes in a 1000 ft. spool.
Features:
- Stranded, tinned copper conductors
- Highly flexible color-coded insulation
- Annealed Finely Stranded Tinned Copper ASTM b172 Class K
- Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture
Specifications:
- Spool Length: 1000 ft.
- Insulation: -20 degrees C to 105 degrees C Flexible, Color Coded PVC
- Temperature Rating: 105 degrees C Dry, 75 degrees C Wet, 60 degrees C Oil
- Voltage Rating: 600-V
Applications:
- Point-to-point wiring
- Internal wiring of panels and motors
Compliances:
- UL Standard 1426 (BC-5W2)
- AWM 1015/1230
- AWM 1028/1231
- MTW, CSA: TEW
- ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183
Our Part # PAC-WUL16BK-2-1000 | Mfr. Part # WUL16BK-2-1000
FEATURES
FEATURES
- Stranded, tinned copper conductors
- Highly flexible color-coded insulation
- Annealed Finely Stranded Tinned Copper ASTM b172 Class K
- Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Pacer |
| Manufacturer part number | WUL16BK-2-1000 |
| Color | Black |
| Gauge | 16 AWG |
| Length (Feet) | 1000' |
| Resistant to | Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture |
| Spool Length | 1000 ft. |
| Insulation | -20 degrees C to 105 degrees C Flexible, Color Coded PVC |
| Temperature Rating | 105 degrees C Dry, 75 degrees C Wet, 60 degrees C Oil |
| Voltage Rating | 600-V |
| MTW, CSA | TEW |
| ABYC | E-8.14, E-9.14, Coast Guard: 33 CFR part183 |
| Supplier technical detail | 16 AWG Gauge Striped Marine Wire 1000' Spool - Black with Red Stripe |
| Supplier technical detail | All of Pacer's 16 AWG striped marine wire is manufactured in Sarasota, FL, USA, from Type III Class K tinned copper. |
| Supplier technical detail | How many options of 16 AWG striped marine wire does Pacer offer? |
| Supplier technical detail | Currently, there are over 100 possible combinations of 16 AWG striped marine wires. |
| Supplier technical detail | This particular black marine wire has a red stripe and comes in a 1000 ft. spool. |
| Supplier material detail | Stranded, tinned copper conductors |
| Supplier material detail | Annealed Finely Stranded Tinned Copper ASTM b172 Class K |
| Applications | Point-to-point wiring Internal wiring of panels and motors |
| Size or rating stated in product name | 16 AWG |
| Size or rating stated in product name | 1000' |
| Product-name configuration | Black w/Red Stripe |
