Pro-Guide 3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp

SKU: pgb-pgc-21236  |  Manuf. Code: PGC-21236
$549.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

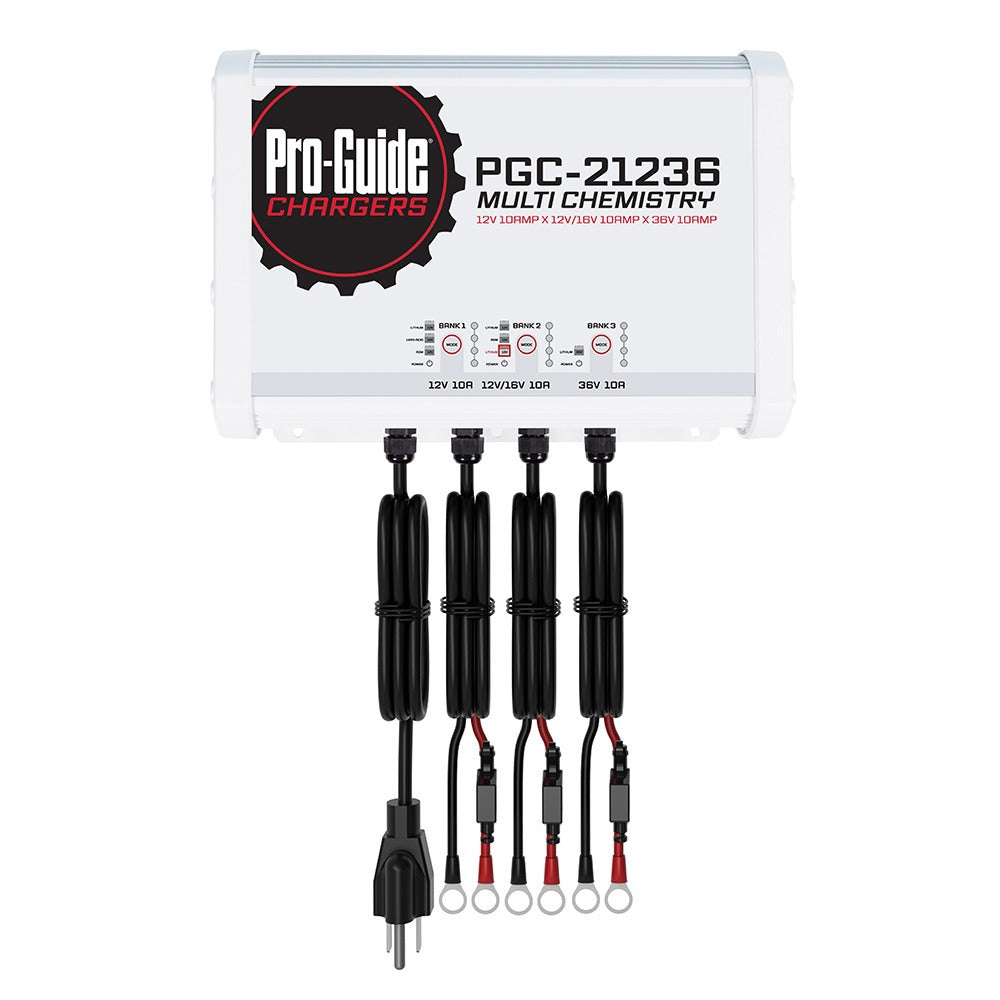

3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp

The Pro-Guide PGC-21236 is a 12V Lead Acid / AGM / Lithium, 16V Lithium & 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, a second bank to charge a 12V AGM, Lithium, or 16V Lithium, and then a third bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

  • Output Over-Voltage
  • Output Over Current
  • Output Short Circuit
  • Output Reverse Polarity
  • Over Temperature

Input:

  • Input Voltage: AC 110-120V
  • Frequency: 60Hz
  • Input Current: <6A

Specifications:

  • Battery Type: 12V Lead Acid/AGM/Lithium, 16V Lithium & 36V Lithium
  • Output Voltage: DC 12V x 1, DC 12V/16V x 1 & DC 36V x 1
  • Max Output Voltage: 14.1-14.3 for 12V Lead Acid Battery, 14.3-14.7 for 12V AGM Battery, & 14.4-14.7 for 12V Lithium Battery, 18-18.3 for 16V Lithium Battery, & 43-44 for 36V Lithium Battery
  • Output Current: 10A for 12V Bank, 10A for 12/16V Bank & 10A for 36V Bank
  • Length: 14.7"
  • Width: 9.96"
  • Height: 3.86"
  • Weight: 24.7 lbs
  • IP Rating: 68

Our Part # PGB-PGC-21236 | Mfr. Part # PGC-21236

FEATURES

  • Output Over-Voltage
  • Output Over Current
  • Output Short Circuit
  • Output Reverse Polarity
  • Over Temperature
  • Input Voltage: AC 110-120V
  • Frequency: 60Hz

TECHNICAL INFORMATION

SpecificationValue
ManufacturerPro-Guide Batteries
Manufacturer part numberPGC-21236
Input VoltageAC 110-120V
Frequency60Hz
Input Current<6A
Battery Type12V Lead Acid/AGM/Lithium, 16V Lithium & 36V Lithium
Output VoltageDC 12V x 1, DC 12V/16V x 1 & DC 36V x 1
Max Output Voltage14.1-14.3 for 12V Lead Acid Battery, 14.3-14.7 for 12V AGM Battery, & 14.4-14.7 for 12V Lithium Battery, 18-18.3 for 16V Lithium Battery, & 43-44 for 36V Lithium Battery
Output Current10A for 12V Bank, 10A for 12/16V Bank & 10A for 36V Bank
Length14.7"
Width9.96"
Height3.86"
Weight24.7 lbs
IP Rating68
Supplier technical detail3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp
Supplier technical detailThe Pro-Guide PGC-21236 is a 12V Lead Acid / AGM / Lithium, 16V Lithium & 36V Lithium on-board battery charger.
Supplier technical detailEach 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.
Supplier technical detailAllowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, a second bank to charge a 12V AGM, Lithium, or 16V Lithium, and then a third bank to charge a 36V Lithium Battery(s).
Supplier application or construction detailThe PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.
Product-name configuration(1) 12V / (1) 12/16V / (1) 36V
Product-name configuration30-Amp
