Raritan Macerator Pump - 24v w/Waste Valve

SKU: rar-5310124  |  Manuf. Code: 5310124
List Price:  $530.00 USD
$466.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

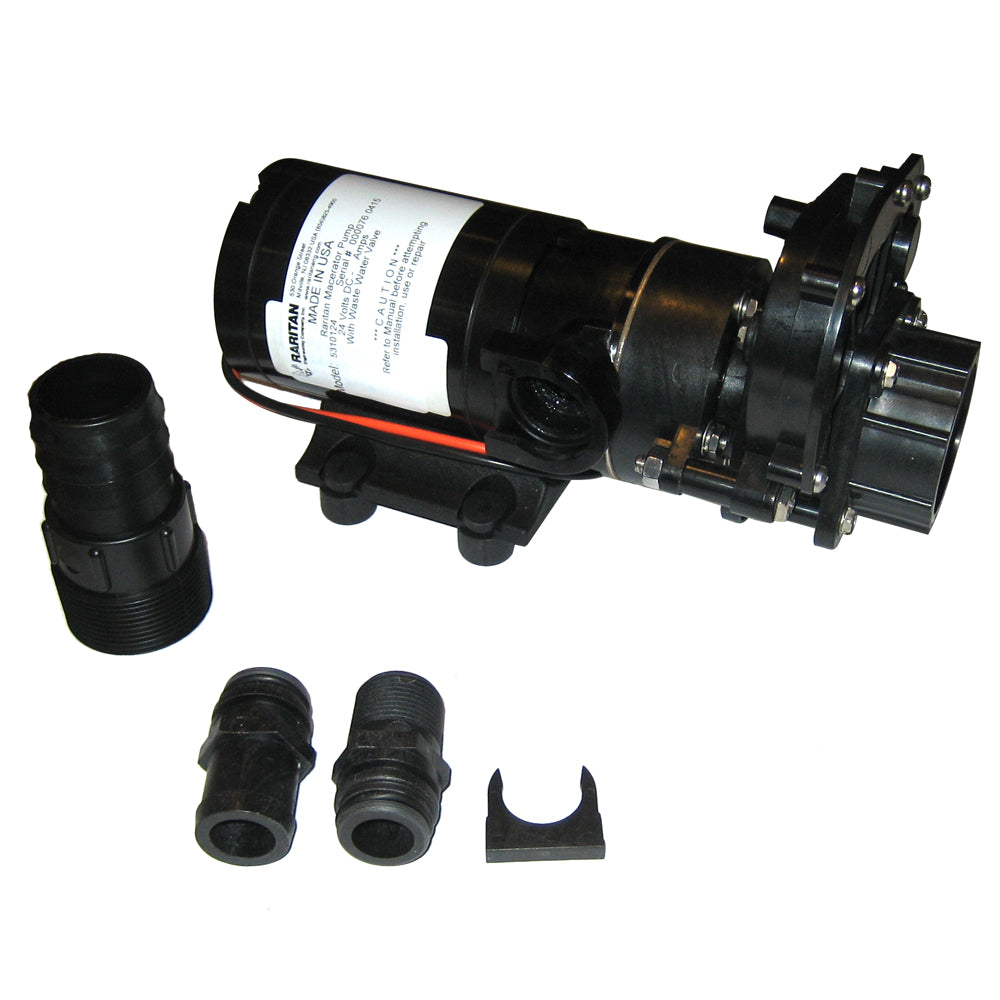

Macerator Pump - 24v w/Waste Valve

Macerator pumps are the key to a number of important chores on a boat! The most important is to work when it is needed. While macerator pumps are generally used to empty holding tanks they can also be used to empty fish boxes. Raritan had two goals in mind when it set out to design a better macerator. The first is the run dry time because as most owners know when you flip the switch to begin emptying the tank you don’t always remember to turn it back off and the number one enemy of any macerator pump is running without liquid going thru it. Nothing destroys a pump faster than running dry.

Raritan developed a plastic housing and impeller combination that resists burnout longer than any macerator on the market today. To try and prevent these things from ruining a trip Raritan also designed the Smart Macerator Control which has several key design features. Probably the most relevant is the ability to shut the pump off as soon as it senses it is running dry. An all to common problem with macerators is the fact they sit for extended periods of time so the macerator control is also designed to “jog” the impeller once a week when power is on. This “jog” prevents the impeller from taking a shape and helps to ensure the pump will empty the tank when requested.

Features:

  • All stainless steel bolts to avoid corrosion problems
  • Spring loaded Viton shaft seal is used to prevent premature leaks
  • Proprietary rubber impeller compound allows longer dry running time

Specifications:

  • Pump: Self priming Flexible rubber impeller with stainless steel wearplate
  • Impeller: Raritan Proprietary Nitrile compound
  • Blade: Stainless steel double cut
  • Seal: Viton Lip with 316 SS spring and case
  • Motor: Permanent magnet type, fully enclosed, stainless steel shaft, thermal protection for overload, Powder coated housing with sealed ball bearing
  • Ports: Inlet: 1-1/2" hose barb & 1-1/2" NPT Male
  • Outlet: 3/4" MNPT
  • Lead wires: 14 GA, Red and black
  • Weight: 5 lbs.
  • Approvals: Ignition protected, ISO 8846

Mfr. Part # 5310124

FEATURES

  • All stainless steel bolts to avoid corrosion problems
  • Spring loaded Viton shaft seal is used to prevent premature leaks
  • Proprietary rubber impeller compound allows longer dry running time
  • Pump: Self priming Flexible rubber impeller with stainless steel wearplate
  • Impeller: Raritan Proprietary Nitrile compound
  • Blade: Stainless steel double cut
  • Seal: Viton Lip with 316 SS spring and case

TECHNICAL INFORMATION

SpecificationValue
ManufacturerRaritan
Manufacturer part number5310124
Volts24v
TypeWaste Pumps
PumpSelf priming Flexible rubber impeller with stainless steel wearplate
ImpellerRaritan Proprietary Nitrile compound
BladeStainless steel double cut
SealViton Lip with 316 SS spring and case
MotorPermanent magnet type, fully enclosed, stainless steel shaft, thermal protection for overload, Powder coated housing with sealed ball bearing
PortsInlet: 1-1/2" hose barb & 1-1/2" NPT Male
Outlet3/4" MNPT
Lead wires14 GA, Red and black
Weight5 lbs.
ApprovalsIgnition protected, ISO 8846
Supplier technical detailMacerator Pump - 24v w/Waste Valve
Supplier material detailAll stainless steel bolts to avoid corrosion problems
Supplier technical detailAll stainless steel bolts to avoid corrosion problems
Supplier material detailPump: Self priming Flexible rubber impeller with stainless steel wearplate
Supplier technical detailPump: Self priming Flexible rubber impeller with stainless steel wearplate
Supplier material detailBlade: Stainless steel double cut
Supplier technical detailBlade: Stainless steel double cut
Supplier technical detailMotor: Permanent magnet type, fully enclosed, stainless steel shaft, thermal protection for overload, Powder coated housing with sealed ball bearing
Supplier dimension detailPorts: Inlet: 1-1/2" hose barb & 1-1/2" NPT Male
Supplier technical detailPorts: Inlet: 1-1/2" hose barb & 1-1/2" NPT Male
Supplier technical detailOutlet: 3/4" MNPT
Product-name configuration24v w/Waste Valve
